NSP151L-AHPGKC (2013)
Toyota Yaris (China)
Production
Dec 2013
-
Aug 2016
Engine
7NRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

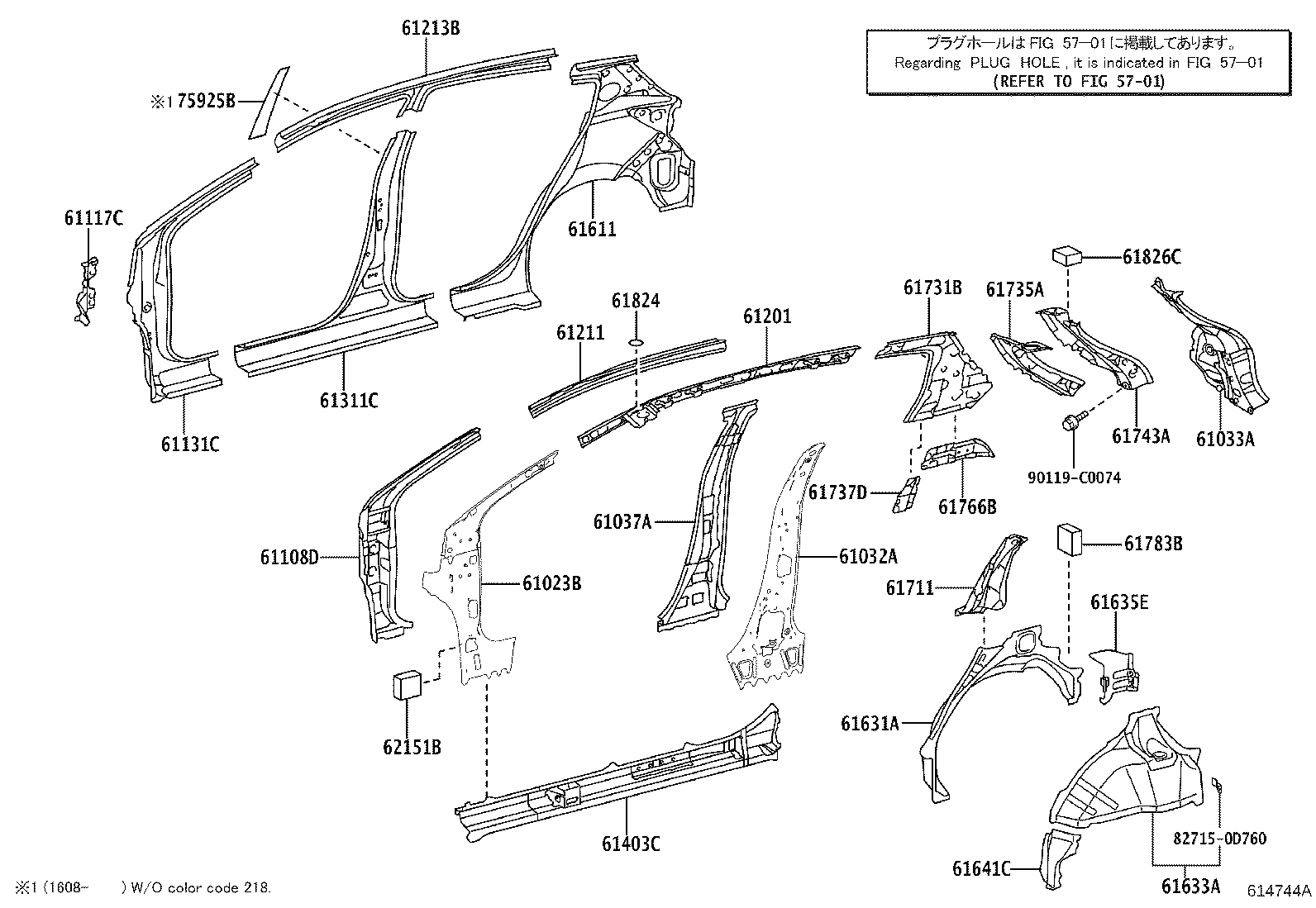

(1312- )5D
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0D180 |
NSP15# |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-0D110 |
NSP15# |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-0D080 |
NSP15# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0D913 |
NSP15# |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-0D130 |
NSP15# |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-0D040 |
NSP15# |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0D180 |
NSP15# |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-0D130 |
NSP15# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-0D160 |
NSP15# |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0D160 |
NSP15# |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-0D100 |
NSP15# |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0D190 |
NSP15# |
1 | ||
| 61403-0D400 |
NSP15# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-0D330 |
NSP15# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-K0030 |
NSP15# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0D290 |
NSP15# |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-0D070 |
NSP15# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-0D070 |
NSP15# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-K0020 |
NSP15# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-K0040 |
NSP15# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-0D090 |
NSP15# |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-0D050 |
NSP15# |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-0D050 |
NSP15# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-0D090 |
NSP15# |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0D010 |
NSP15# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D050 |
NSP15# |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-0D040 |
NSP15# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-0D120 |
NSP15# |
2 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-0D070 |
NSP15# |
1 | ||
| Common parts | ||||
| 82715-0D760 | ||||
| 90119-C0074 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1312- )5D
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0D180 |
NSP15# |
1 | ||
| 61024-0D181 |
NSP15# |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-0D080 |
NSP15# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0D913 |
NSP15# |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-0D110 |
NSP15# |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-0D130 |
NSP15# |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-0D030 |
NSP15# |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0D180 |
NSP15# |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-0D130 |
NSP15# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-0D160 |
NSP15# |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0D160 |
NSP15# |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-0D100 |
NSP15# |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0D190 |
NSP15# |
1 | ||
| 61404-0D400 |
NSP15# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-0D330 |
NSP15# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-K0030 |
NSP15# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0D290 |
NSP15# |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-0D070 |
NSP15# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-0D070 |
NSP15# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-K0020 |
NSP15# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-0D100 |
NSP15# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-K0040 |
NSP15# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-0D100 |
NSP15# |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-0D060 |
NSP15# |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-0D050 |
NSP15# |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61762-0D040 |
NSP15# |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-0D100 |
NSP15# |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0D010 |
NSP15# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D050 |
NSP15# |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-0D040 |
NSP15# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-0D120 |
NSP15# |
2 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-0D070 |
NSP15# |
1 | ||
| Common parts | ||||
| 82715-0D760 | ||||
| 90119-C0074 | ||||
| Linked diagrams | ||||
| 5701 | ||||
