NSP151L-AHPGKC (2013)
Toyota Yaris (China)

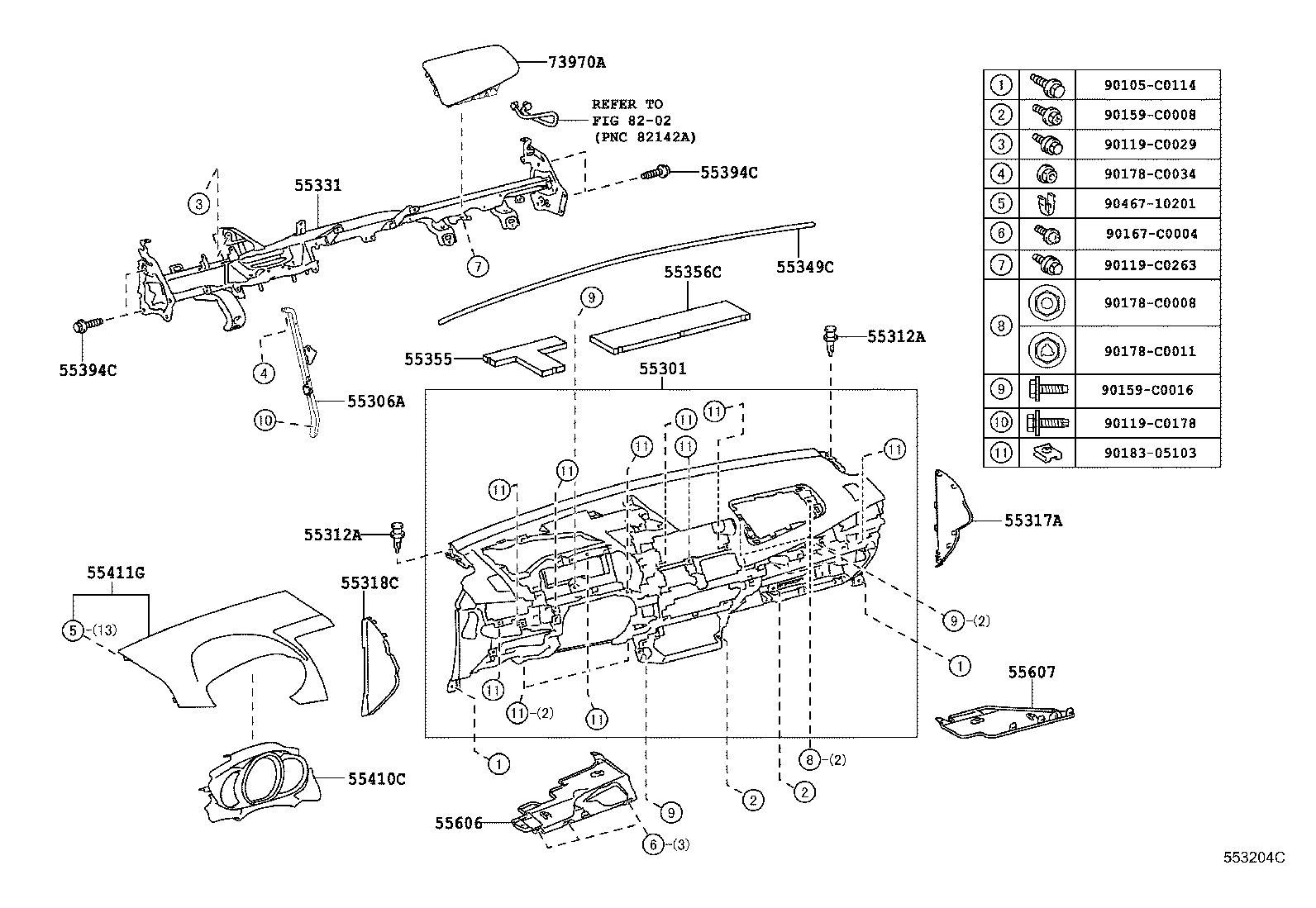

ILLUST NO. 1 OF 2(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55310-0D100E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55310-0D101E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D240 |
NSP15# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NSP15# |
2 | ||
| 52161-02040 |
NSP15# (L) |
2 | ||
| 52161-16010 |
NSP15# (J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NSP15# |
2 | ||
| 52161-02040 |
NSP15# (L) |
2 | ||
| 52161-16010 |
NSP15# (J) |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0D100E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0D080E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D500 |
NSP15# |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D180 |
NSP15# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D180 |
NSP15# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D170 |
NSP15# |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP15# |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP15# |
4 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0D090 |
NSP15# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0D190E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55411-0D191E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D110 |
NSP15# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D120 |
NSP15# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0D150E0 |
NSP15# DK. BROWN,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-C0114 | ||||
| 90119-C0029 | ||||
| 90119-C0178 | ||||
| 90119-C0263 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90167-C0004 | ||||
| 90178-C0008 | ||||
| 90178-C0011 | ||||
| 90178-C0034 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| Linked diagrams | ||||
| 8202 | ||||

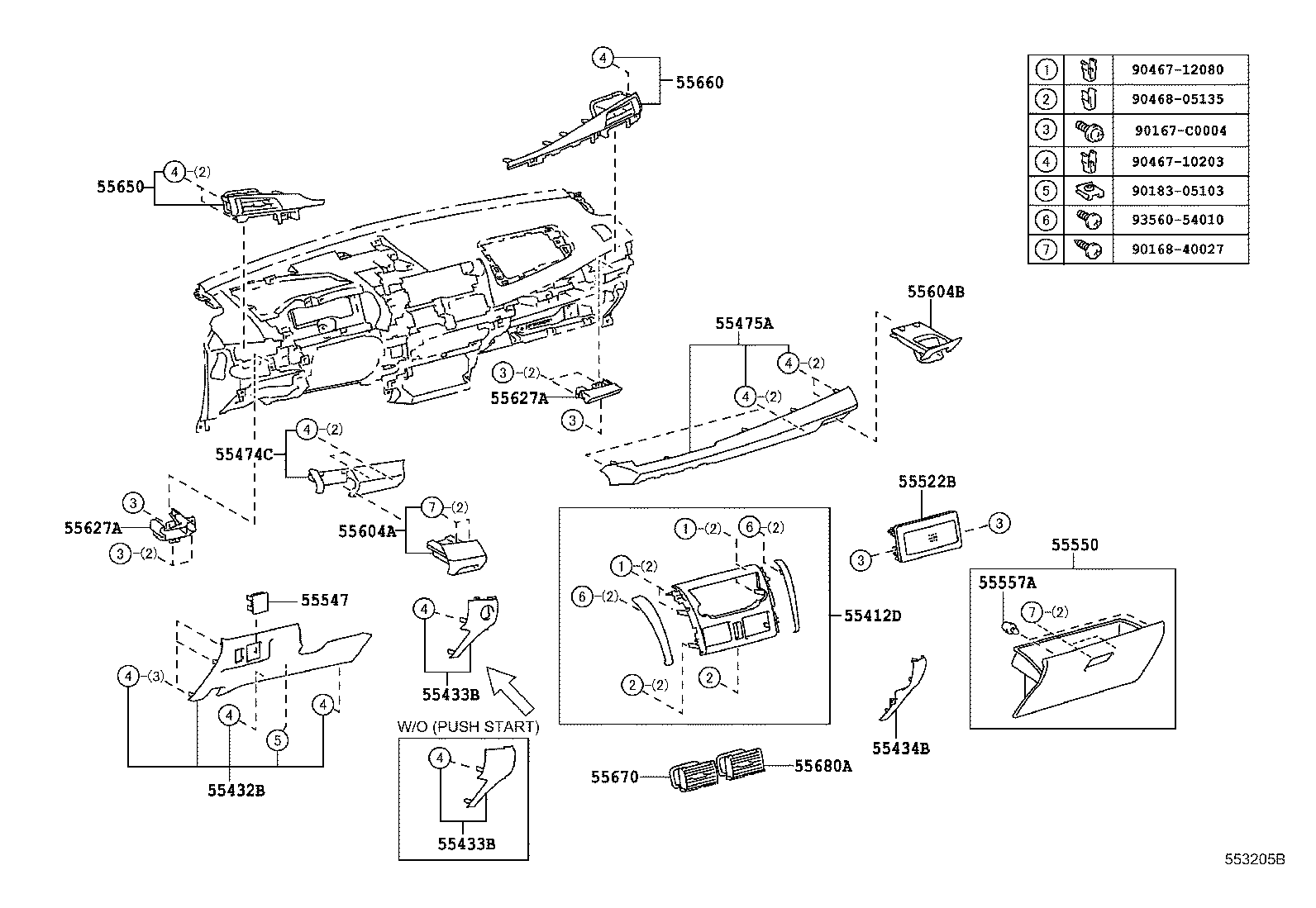

ILLUST NO. 2 OF 2(1312-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D490 |
NSP15# |
1 | ||
| 55405-0D500 |
NSP151..G NAVI(ACCESSORY)PACKAGE |
1 | ||
| 55405-0D750 |
NSP151..G,N TWO TONE PACKAGE |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D100C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55432-0D101A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55432-0D100A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55432-0D101C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D090C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 55433-0D100A0 |
NSP151..G IVORY,TRIM0# |
1 | ||
| 55433-0D100C0 |
NSP151..G BLACK,TRIM2# |
1 | ||
| 55433-0D090A0 |
NSP15#..N,R IVORY,TRIM0# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D090C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 55433-0D100A0 |
NSP151..G IVORY,TRIM0# |
1 | ||
| 55433-0D100C0 |
NSP151..G BLACK,TRIM2# |
1 | ||
| 55433-0D090A0 |
NSP15#..N,R IVORY,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D110A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55434-0D110C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0D040C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55474-0D040A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-0D040A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55475-0D040C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NSP151..G NAVI(ACCESSORY)PACKAGE |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D231C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55550-0D230A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55550-0D231A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55550-0D230C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NSP15# |
2 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-0D110A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55618-0D110C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-0D110A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 55619-0D110C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D080 |
NSP15# PASSENGER SIDE |
1 | ||
| 55627-0D070 |
NSP15# DRIVER SIDE |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D080 |
NSP15# PASSENGER SIDE |
1 | ||
| 55627-0D070 |
NSP15# DRIVER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D370E0 |
NSP151..G,R DK. BROWN,TRIM0#,2# |
1 | ||
| 55650-0D250E0 |
NSP15#..N,R DK. BROWN,TRIM0#,2# |
1 | ||
| 55650-0D370E0 |
NSP150;NSP151..N DK. BROWN,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D090E0 |
NSP15#..N,R DK. BROWN,TRIM0#,2# |
1 | ||
| 55660-0D210E0 |
NSP151..G,R DK. BROWN,TRIM0#,2# |
1 | ||
| 55660-0D210E0 |
NSP150;NSP151..N DK. BROWN,TRIM0#,2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D150 |
NSP151..G,R |
1 | ||
| 55670-0D150 |
NSP150;NSP151..N |
1 | ||
| 55670-0D190 |
NSP15#..N,R |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D060 |
NSP150;NSP151..N |
1 | ||
| 55680-0D100 |
NSP15#..N,R |
1 | ||
| 55680-0D060 |
NSP151..G,R |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90168-40027 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93560-54010 | ||||
