NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1608)

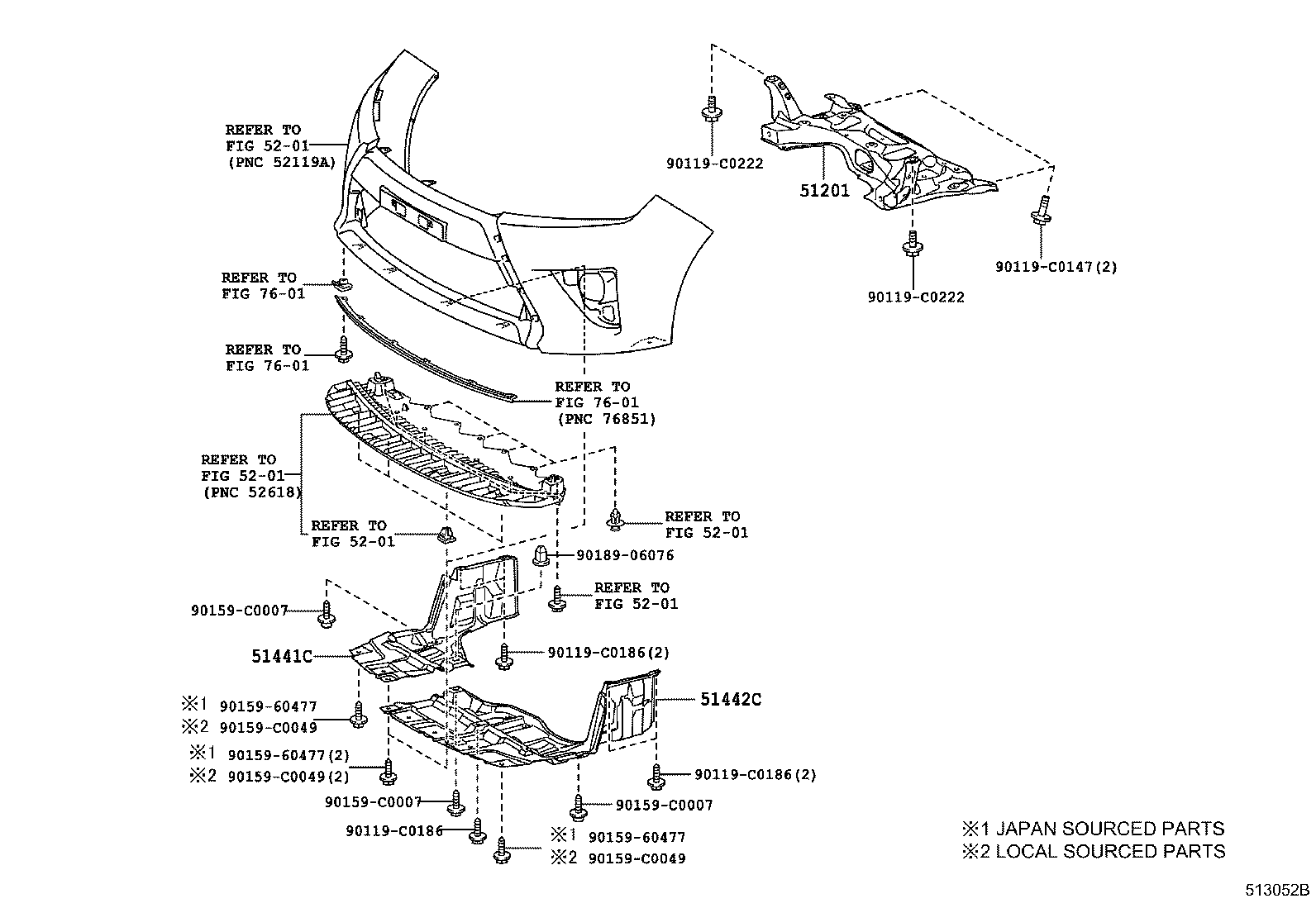

Click highlighted areas on diagram

diagram 51201 51441C 51442C 5201 5201 5201 5201 5201 7601 7601 7601 90119C0147 90119C0186 90119C0186 90119C0186 90119C0222 90119C0222 9015960477 9015960477 9015960477 90159C0007 90159C0007 90159C0007 90159C0049 90159C0049 90159C0049 9018906076
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D113

NSP15#

 1
51441C - COVER, ENGINE UNDER, RH
51441-0D300

NSP15#

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D180

NSP15#

 1
Common parts
90119-C0147
90119-C0186
90119-C0222
90159-60477
90159-C0007
90159-C0049
90189-06076
Linked diagrams
5201
7601
