NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1812) ; (1812- )6NRFE

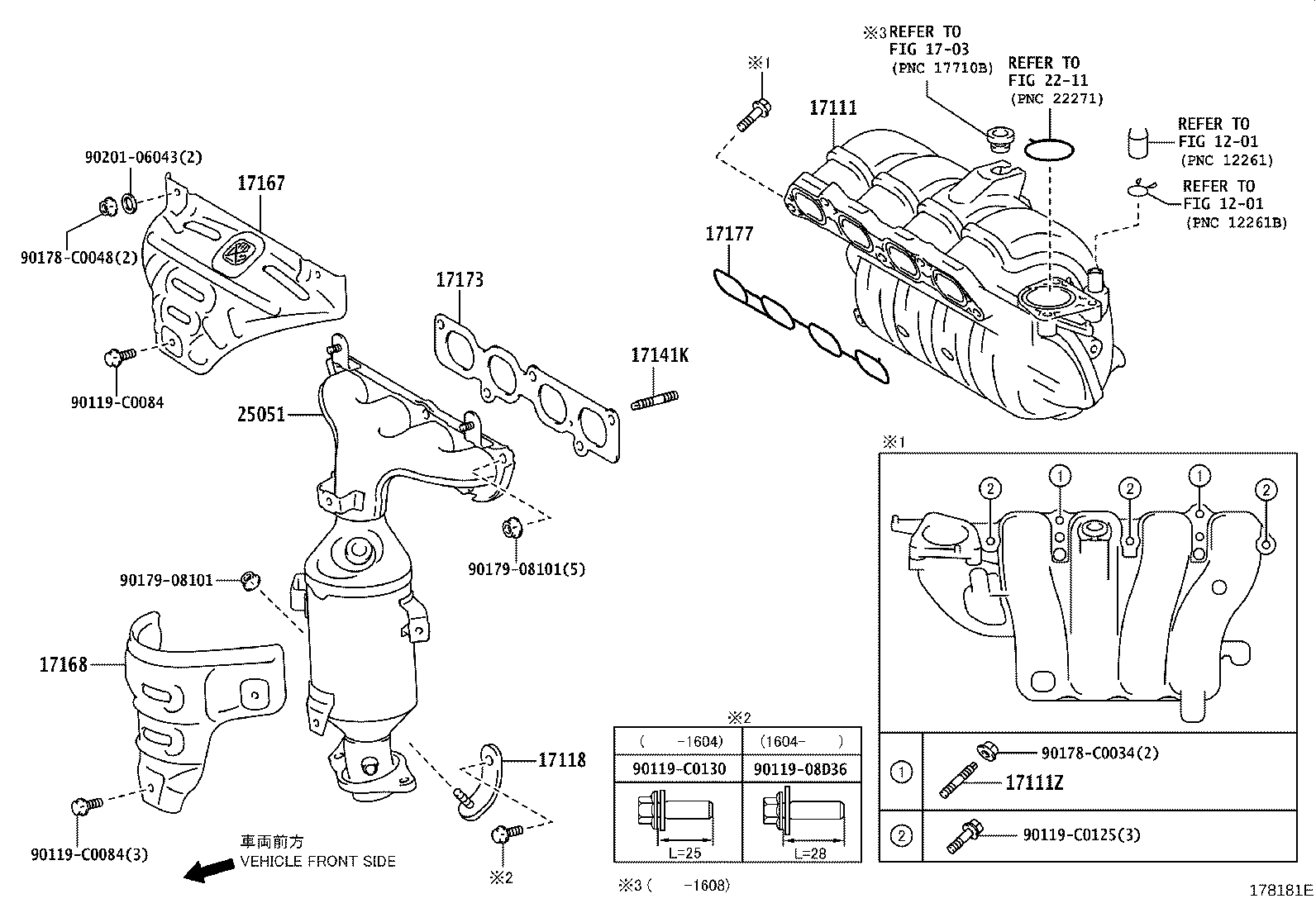

Click highlighted areas on diagram

diagram 1201 1201 1703 17111 17111Z 17118 17141K 17167 17168 17173 17177 2211 25051 9011908D36 90119C0084 90119C0084 90119C0125 90119C0130 90178C0034 90178C0048 9017908101 9017908101 9020106043
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-0Y030

6NRFE,7NRFE..NSP15#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-C0005

6NRFE,7NRFE..NSP15#

 2
17118 - STAY, MANIFOLD
17118-47010

6NRFE,7NRFE..NSP15#

 1
17118-47011

6NRFE,7NRFE..NSP15#

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-C0004

6NRFE,7NRFE..NSP15#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0Y010

6NRFE,7NRFE..NSP15#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0Y010

6NRFE,7NRFE..NSP15#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0Y020

6NRFE,7NRFE..NSP15#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0Y010

6NRFE,7NRFE..NSP15#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0Y040

6NRFE,7NRFE..NSP15#

EXH.EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

 1
25051-0Y030

6NRFE,7NRFE..NSP15#

 1
Common parts
90119-08D36
90119-C0084
90119-C0125
90119-C0130
90178-C0034
90178-C0048
90179-08101
90201-06043
Linked diagrams
1201
1703
2211
