NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

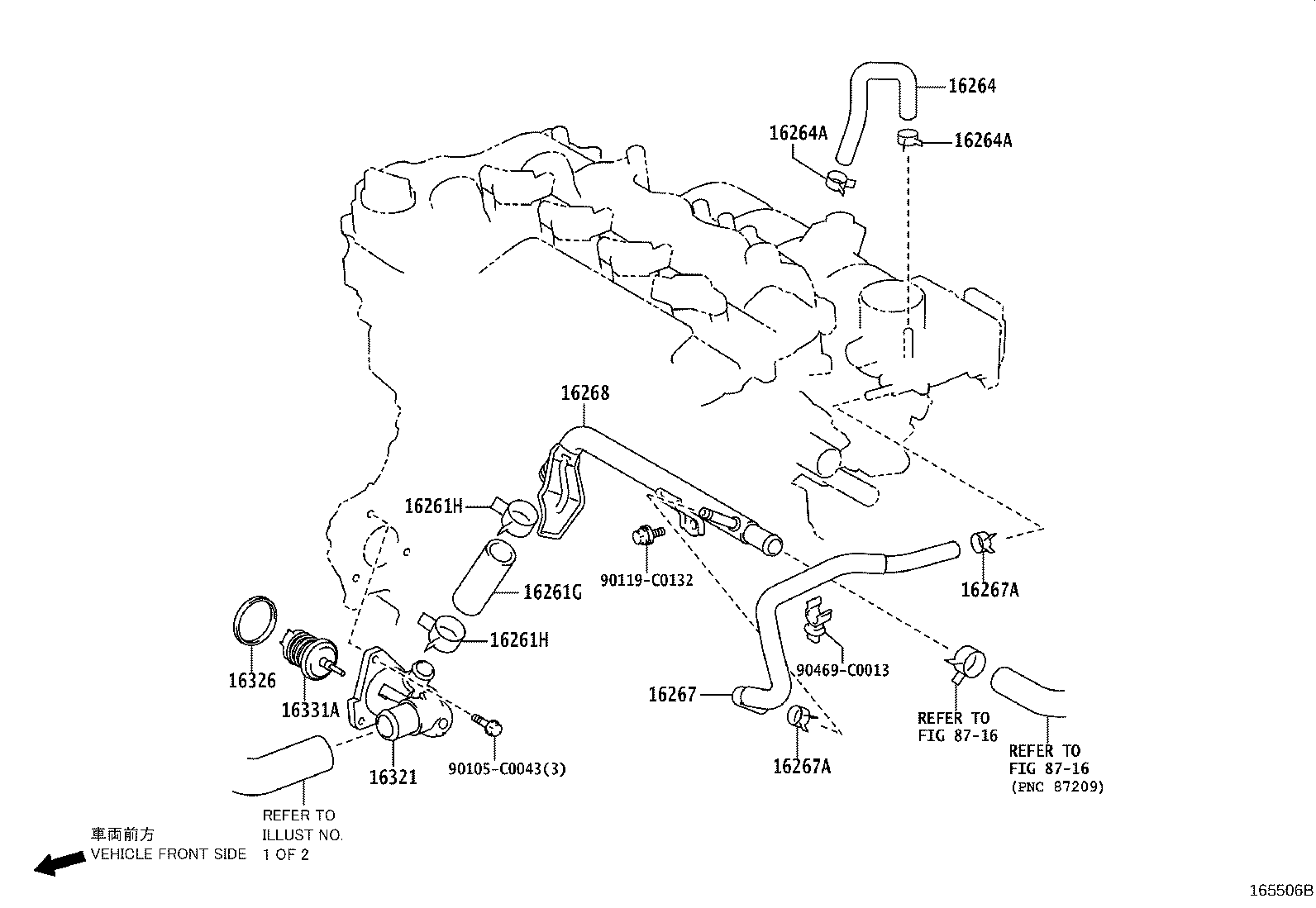

ILLUST NO. 2 OF 2(1312-1812)6NRFE,7NRFE..4FC,5F ; (1812- )6NRFE..5F

Click highlighted areas on diagram

ENGINE SIDE

diagram 16261G 16261H 16261H 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16326 16331A 8716 8716 90105C0043 90119C0132 90469C0013
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y080

6NRFE,7NRFE..NSP15#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

6NRFE,7NRFE..NSP15#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

6NRFE,7NRFE..NSP15#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y060

6NRFE,7NRFE..NSP15#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-C0044

6NRFE,7NRFE..NSP15#

 2
96136-41501

6NRFE,7NRFE..NSP15#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-C0044

6NRFE,7NRFE..NSP15#

 2
96136-41501

6NRFE,7NRFE..NSP15#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y020

6NRFE,7NRFE..NSP15#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

6NRFE,7NRFE..NSP15#

 2
90466-C0044

6NRFE,7NRFE..NSP15#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

6NRFE,7NRFE..NSP15#

 2
90466-C0044

6NRFE,7NRFE..NSP15#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y030

6NRFE,7NRFE..NSP15#

 1
16321 - INLET, WATER
16321-47011

6NRFE,7NRFE..NSP15#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47010

6NRFE,7NRFE..NSP15#

 1
16326-47020

6NRFE,7NRFE..NSP15#

 1
16331A - THERMOSTAT
90916-03147

6NRFE,7NRFE..NSP15#

*WAX 82-95

 1
Common parts
90105-C0043
90119-C0132
90469-C0013
Linked diagrams
8716

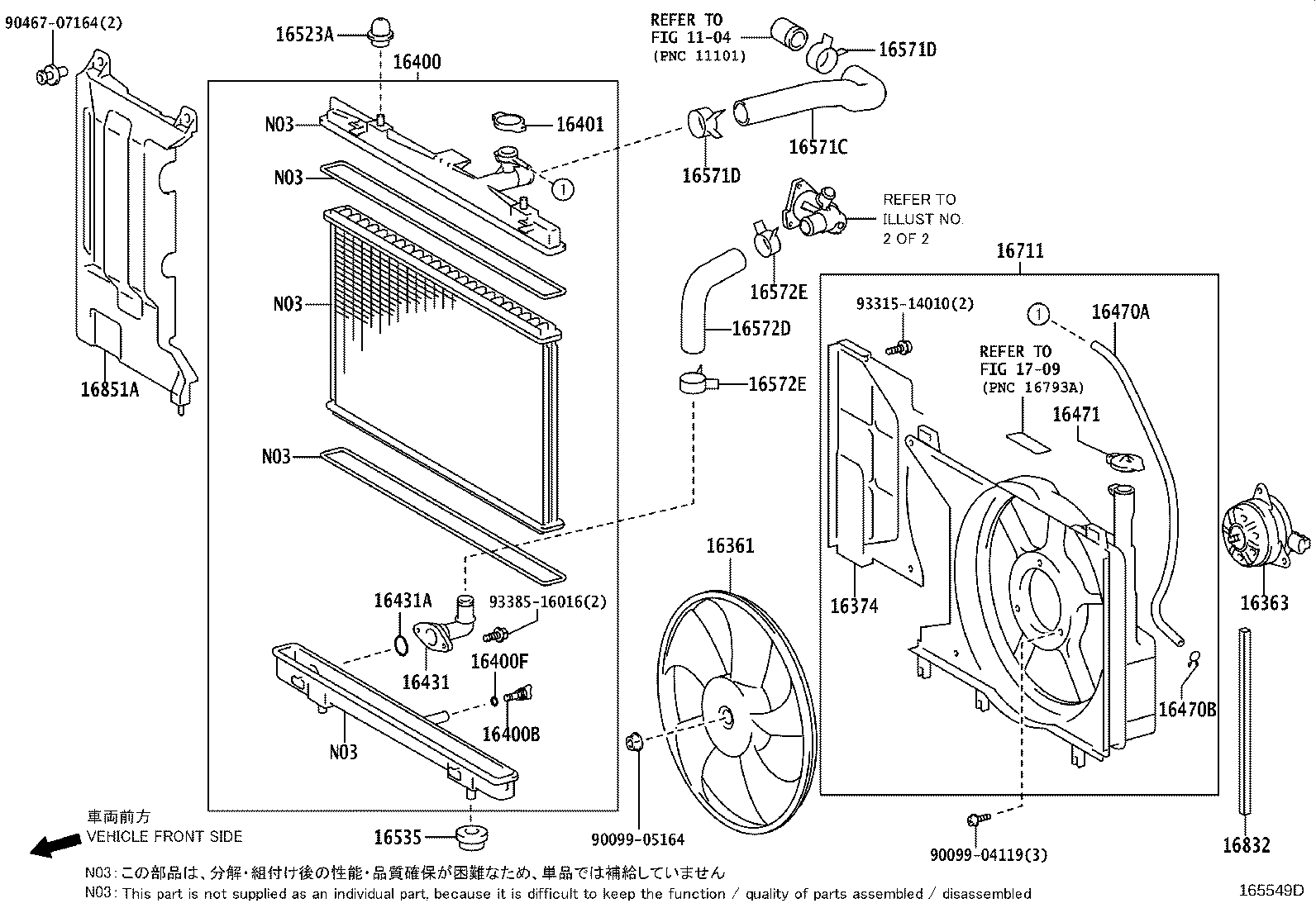

ILLUST NO. 1 OF 2(1312- )6NRFE,7NRFE..4FC

Click highlighted areas on diagram

RADIATOR SIDE

diagram 1104 16361 16363 16374 16400 16400B 16400F 16401 16431 16431A 16470A 16470B 16471 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16711 16832 16851A 1709 9009904119 9009905164 9046707164 9331514010 9338516016
Part # Description Qty Price
16361 - FAN
16361-0Y050

6NRFE,7NRFE..NSP15#

 1
16363 - MOTOR, COOLING FAN
16363-0Y030

6NRFE,7NRFE..NSP15#

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-0Y060

6NRFE,7NRFE..NSP15#

 1
16400 - RADIATOR ASSY
16400-0Y120

6NRFE,7NRFE..NSP15#..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

6NRFE,7NRFE..NSP15#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

6NRFE,7NRFE..NSP15#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0Y060

6NRFE,7NRFE..NSP15#

 1
16431 - INLET, RADIATOR WATER
16431-0Y120

6NRFE,7NRFE..NSP15#

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0Y120

6NRFE,7NRFE..NSP15#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0Y060

6NRFE,7NRFE..NSP15#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

6NRFE,7NRFE..NSP15#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-0T010

6NRFE,7NRFE..NSP15#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0M070

6NRFE,7NRFE..NSP15#

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

6NRFE,7NRFE..NSP15#

 2
16571C - HOSE, RADIATOR, NO.1
16571-0Y110

6NRFE,7NRFE..NSP15#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0008

6NRFE,7NRFE..NSP15#

(L)

 2
96136-43901

6NRFE,7NRFE..NSP15#

(J)

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0008

6NRFE,7NRFE..NSP15#

(L)

 2
96136-43901

6NRFE,7NRFE..NSP15#

(J)

 2
16572D - HOSE, RADIATOR, NO.2
16572-0Y090

6NRFE,7NRFE..NSP15#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

6NRFE,7NRFE..NSP15#

(J)

 2
90466-C0008

6NRFE,7NRFE..NSP15#

(L)

 2
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

6NRFE,7NRFE..NSP15#

(J)

 2
90466-C0008

6NRFE,7NRFE..NSP15#

(L)

 2
16711 - SHROUD, FAN
16711-0Y070

6NRFE,7NRFE..NSP15#

 1
16832 - SEAL, FAN SHROUD
16561-0Y030

6NRFE,7NRFE..NSP15#

 1
16851A - COVER, SHROUD SIDE
16851-0Y020

6NRFE,7NRFE..NSP15#

 1
Common parts
90099-04119
90099-05164
90467-07164
93315-14010
93385-16016
Linked diagrams
1104
1709
