NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1812) ; (1812- )6NRFE

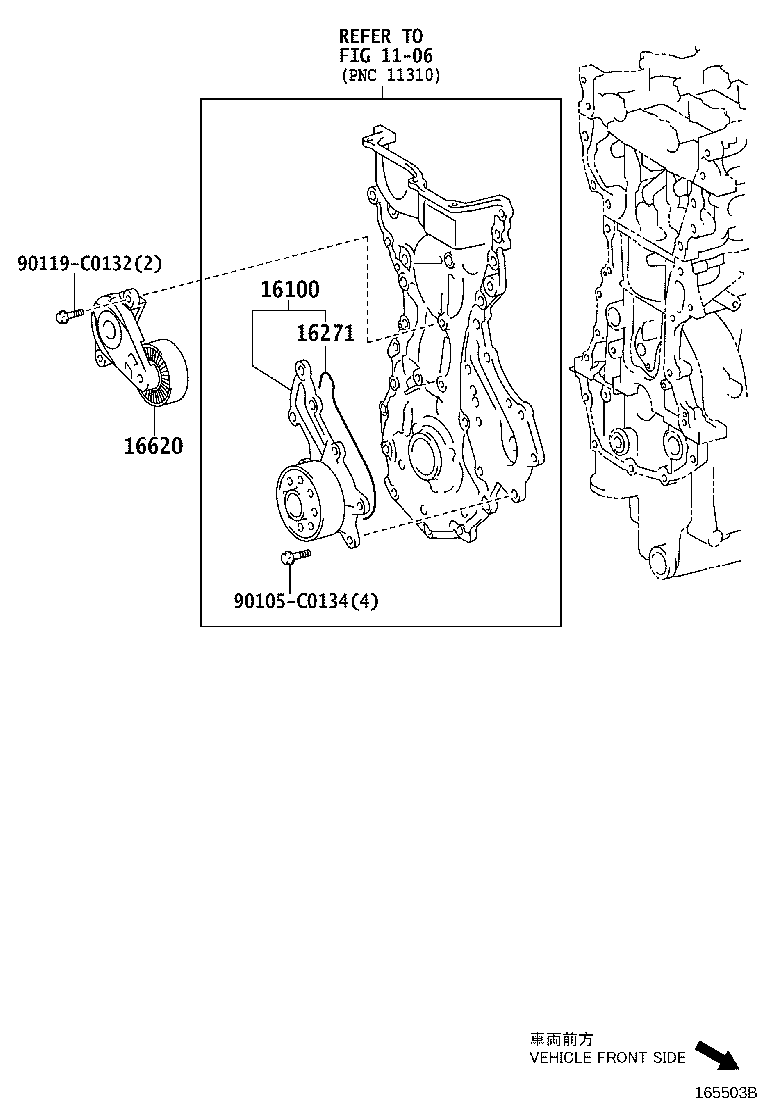

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 90105C0134 90119C0132
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09630

6NRFE,7NRFE..NSP15#

 1
16271 - GASKET, WATER PUMP
16271-0Y020

6NRFE,7NRFE..NSP15#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0Y010

6NRFE,7NRFE..NSP15#

 1
Common parts
90105-C0134
90119-C0132
Linked diagrams
1106
