NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1312-1812) ; (1812- )6NRFE

Click highlighted areas on diagram

diagram 11363A 11401 11401L 11416 11434A 11434J 11434J 11434M 11434Y 11445 11452 11452B 12101 12101A 12101B 12101C 12121 12122 1501 1501 1501 1502 15301 15708 90105C0096 90110C0001 90119C0098 90119C0098 90119C0132 90301C0038 90301C0039
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-40010

6NRFE,7NRFE..NSP15#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09621

7NRFE..NSP151

 1
11410-09620

7NRFE..NSP151

 1
11401L - SEAL, ENGINE REAR OIL
90311-C0019

6NRFE,7NRFE..NSP15#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02175

6NRFE,7NRFE..NSP15#

(J)

 10
90910-C2008

6NRFE,7NRFE..NSP15#

(L)

 10
90910-02175

6NRFE,7NRFE..NSP15#

 10
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-C0009

6NRFE,7NRFE..NSP15#

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-C0006

6NRFE,7NRFE..NSP15#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-C0006

6NRFE,7NRFE..NSP15#

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-C0006

6NRFE,7NRFE..NSP15#

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-C0011

6NRFE,7NRFE..NSP15#

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0Y010

6NRFE,7NRFE..NSP15#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-0Y010

6NRFE,7NRFE..NSP15#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-C0007

6NRFE,7NRFE..NSP15#

 1
12101 - PAN SUB-ASSY, OIL
12101-0Y030

6NRFE,7NRFE..NSP15#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12032

6NRFE,7NRFE..NSP15#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-C0005

6NRFE,7NRFE..NSP15#

 1
12101C - RING, O(FOR OIL PAN)
90430-C0003

6NRFE,7NRFE..NSP15#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0Y020

6NRFE,7NRFE..NSP15#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0Y030

6NRFE,7NRFE..NSP15#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-47031

6NRFE,7NRFE..NSP15#

 4
Common parts
90105-C0096
90110-C0001
90119-C0098
90119-C0132
90301-C0038
90301-C0039
Linked diagrams
1501
1502

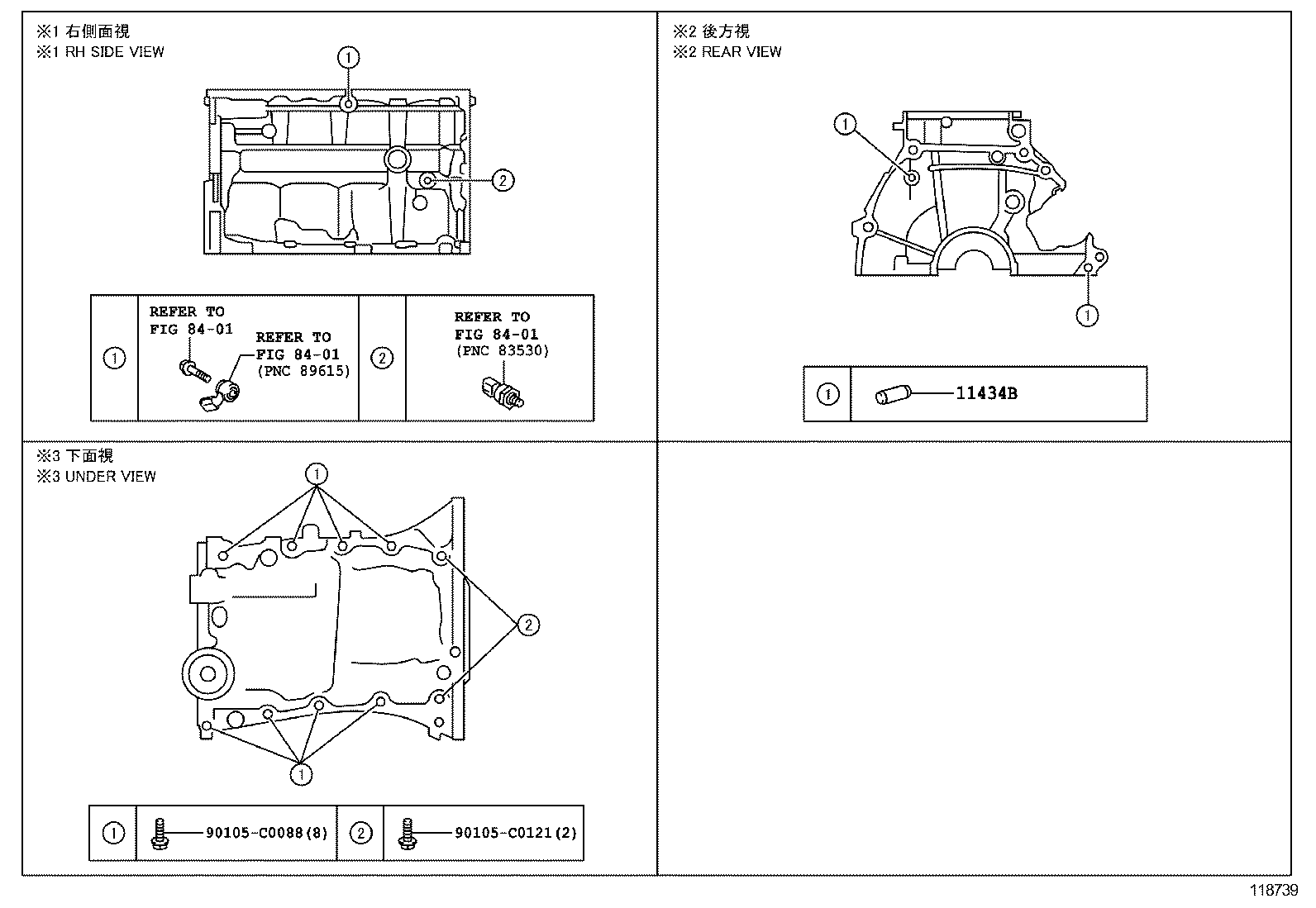

ILLUST NO. 2 OF 2(1312-1812) ; (1812- )6NRFE

Click highlighted areas on diagram

diagram 11434B 8401 8401 8401 90105C0088 90105C0121
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-C0012

6NRFE,7NRFE..NSP15#

L=22,OD=10

 2
Common parts
90105-C0088
90105-C0121
Linked diagrams
8401
