NSP151L-AHMRKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Sep 9999
Engine 7NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608-1807)NSP151..5F ; (1608- )NSP150..5F

Click highlighted areas on diagram

diagram 1104 1603 871240D210 871240D500 8714 8714 87209 87245 9046621001 90466C0014 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D610

NSP151..5F

 1
87209-0D800

NSP151..5F

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D710

NSP151..5F

 1
87245-0D790

NSP151..5F

 1
Common parts
87124-0D210
87124-0D500
90466-21001
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714

(1807- )NSP151..5F

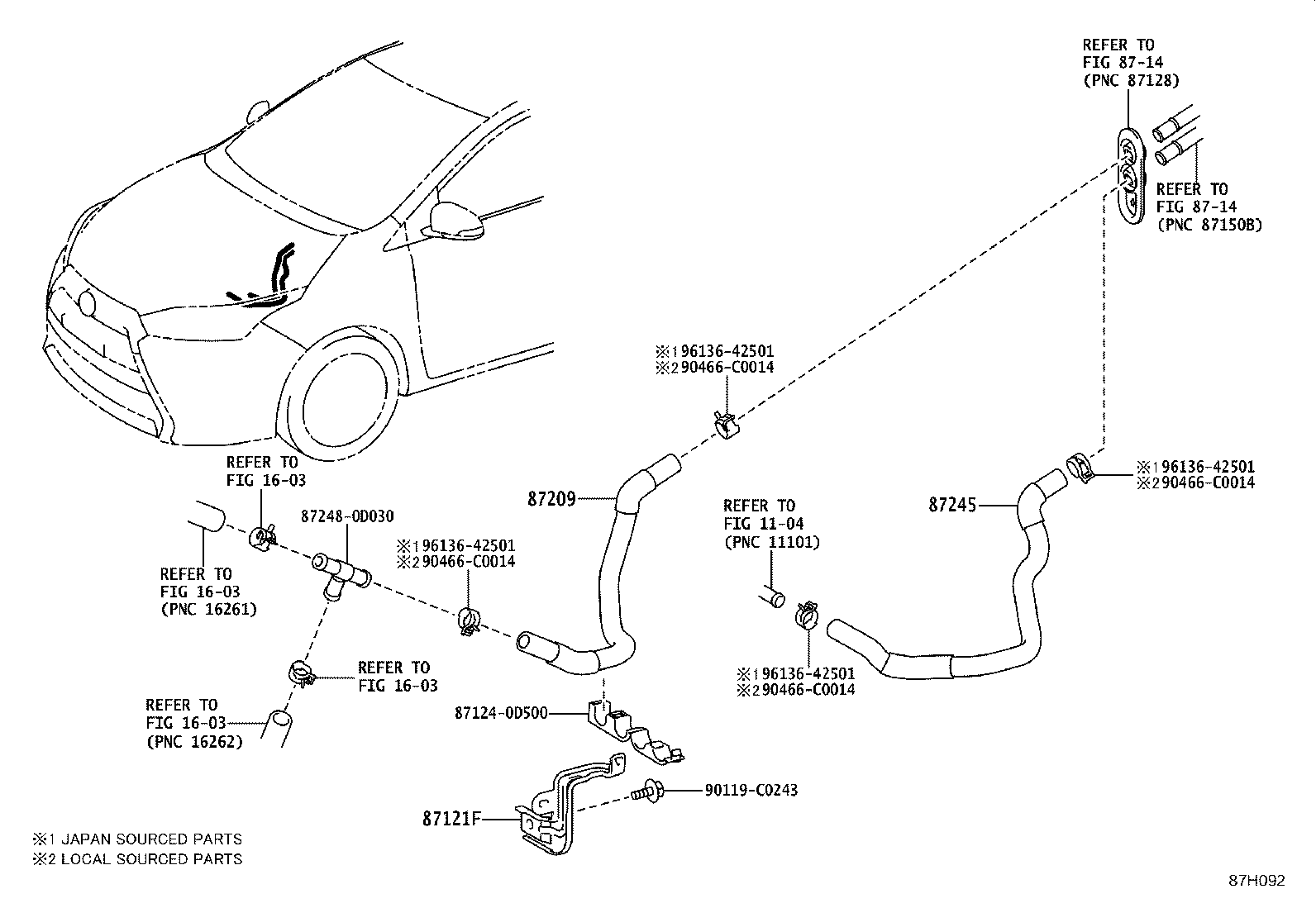

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 87121F 871240D500 8714 8714 87209 87245 872480D030 90119C0243 90466C0014 90466C0014 90466C0014 90466C0014 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-0D120

NSP151..5F

 1
87209 - HOSE SUB-ASSY, WATER
87209-0D610

NSP151..5F

 1
87209-0D800

NSP151..5F

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D710

NSP151..5F

 1
87245-0D790

NSP151..5F

 1
Common parts
87124-0D500
87248-0D030
90119-C0243
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714
