NSP151L-AHMRKC (2016)
Toyota Yaris (China)
Production
Aug 2016
-
Sep 9999
Engine
7NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1608- )

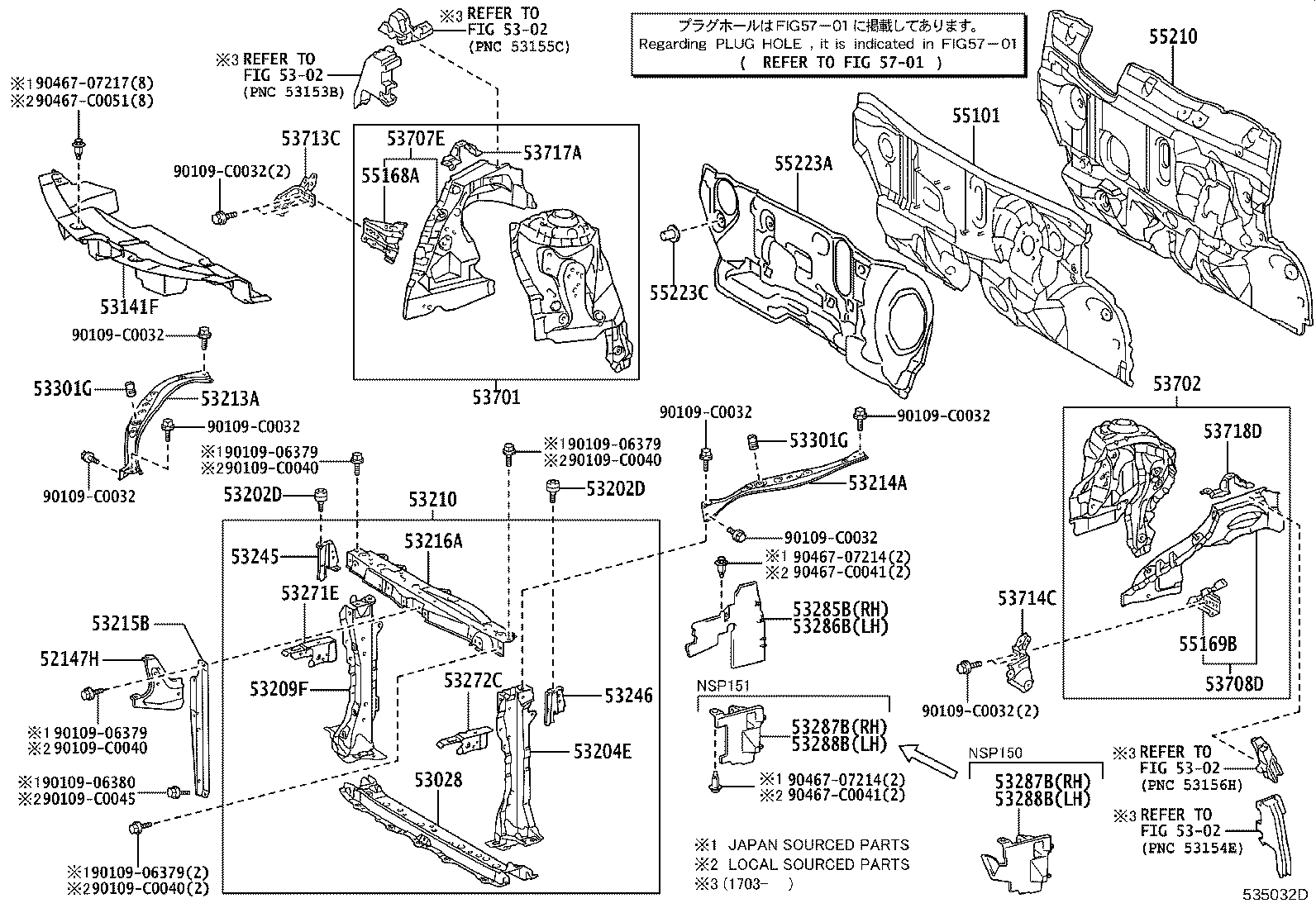

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52147H - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0D140 |
NSP151 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-0D080 |
NSP151 |
1 | ||
| 53141F - COVER, RADIATOR | ||||
| 53141-0D090 |
NSP15# |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53119-12150 |
NSP15# |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53119-12150 |
NSP15# |
2 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-0D040 |
NSP151 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-0D040 |
NSP151 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-0D916 |
NSP151 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-0D120 |
NSP151 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0D130 |
NSP151 |
1 | ||
| 53215B - SUPPORT, HOOD LOCK | ||||
| 53215-0D131 |
NSP151 |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-0D100 |
NSP151 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-0D040 |
NSP151 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-0D040 |
NSP151 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0D050 |
NSP151 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0D050 |
NSP151 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0D351 |
NSP15# |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0D350 |
NSP15# |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-0D240 |
NSP151 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-0D240 |
NSP151 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-0D230 |
NSP151 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-0D230 |
NSP151 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
NSP15# (J) |
2 | ||
| 90541-C0004 |
NSP151 (L) |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
NSP15# (J) |
2 | ||
| 90541-C0004 |
NSP151 (L) |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0D210 |
NSP151 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0D200 |
NSP151 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-0D020 |
NSP15# |
1 | ||
| 53707-0D060 |
NSP151 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-0D020 |
NSP151 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-0D902 |
NSP151 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-0D902 |
NSP151 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-0D080 |
NSP151 |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53718-0D080 |
NSP151 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0D840 |
NSP151..5F |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0D050 |
NSP151 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0D050 |
NSP151 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0D720 |
NSP151 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0D360 |
NSP15# |
1 | ||
| 55223-0D361 |
NSP151 |
1 | ||
| 55223C - CLIP | ||||
| 90467-C0080 |
NSP151 (L) |
1 | ||
| 90467-06197 |
NSP15# |
1 | ||
| 90467-06197 |
NSP151 (J) |
1 | ||
| Common parts | ||||
| 90109-06379 | ||||
| 90109-06380 | ||||
| 90109-C0032 | ||||
| 90109-C0040 | ||||
| 90109-C0045 | ||||
| 90467-07214 | ||||
| 90467-07217 | ||||
| 90467-C0041 | ||||
| 90467-C0051 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5701 | ||||
