NSP151L-AHMRKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Sep 9999
Engine 7NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

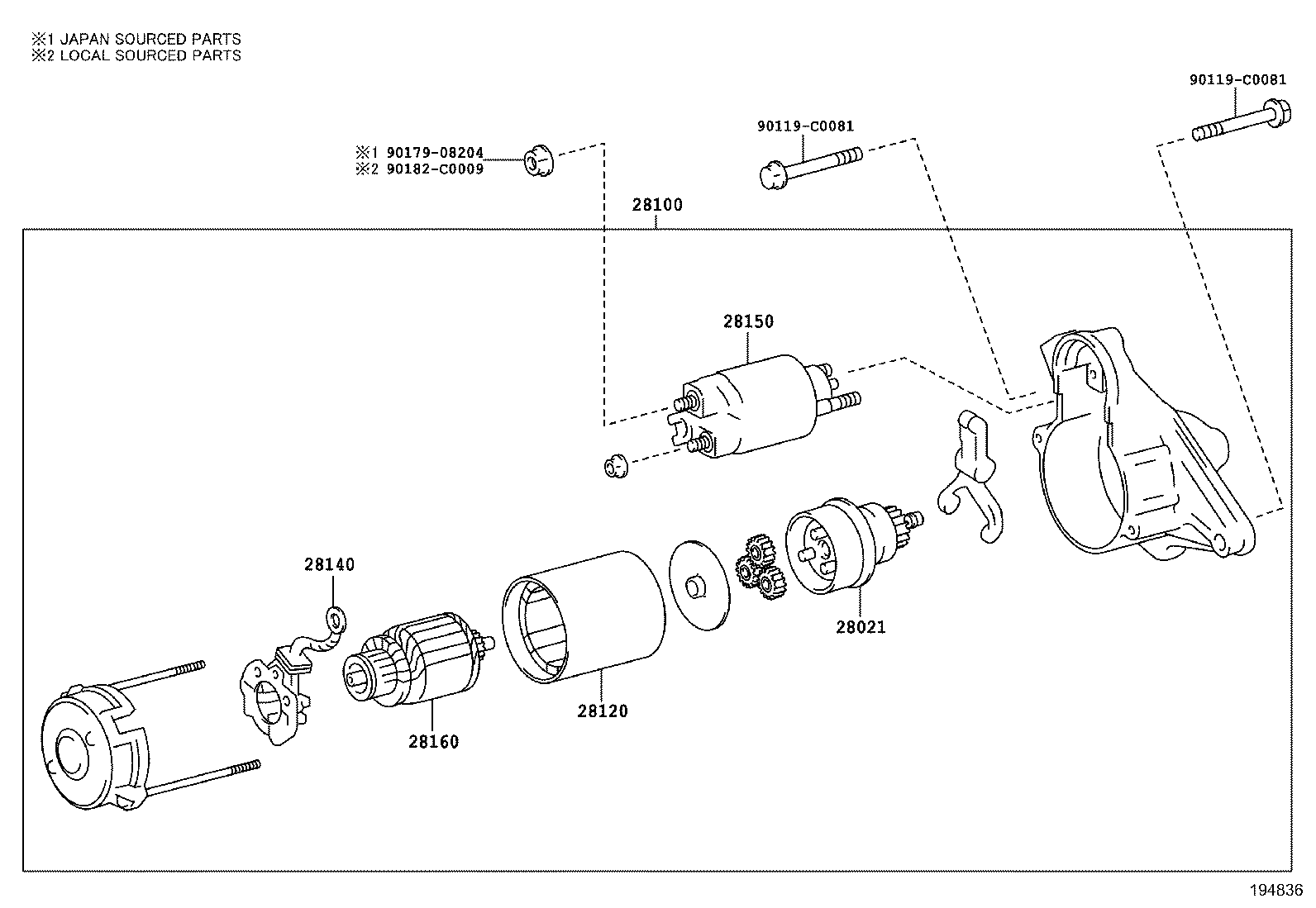

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28120 28140 28150 28160 90119C0081 90119C0081 9017908204 90182C0009
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0T360

7NRFE..NSP151

 1
28100 - STARTER ASSY
28100-0Y331

7NRFE..NSP151

12V 1.7KW

 1
28100-0Y330

6NRFE,7NRFE..NSP15#

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-0Y330

7NRFE..NSP151

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0V040

7NRFE..NSP151

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0Y330

6NRFE,7NRFE..NSP15#

 1
28150-0Y331

7NRFE..NSP151

 1
28160 - ARMATURE ASSY, STARTER
28160-0S050

7NRFE..NSP151

 1
Common parts
90119-C0081
90179-08204
90182-C0009
