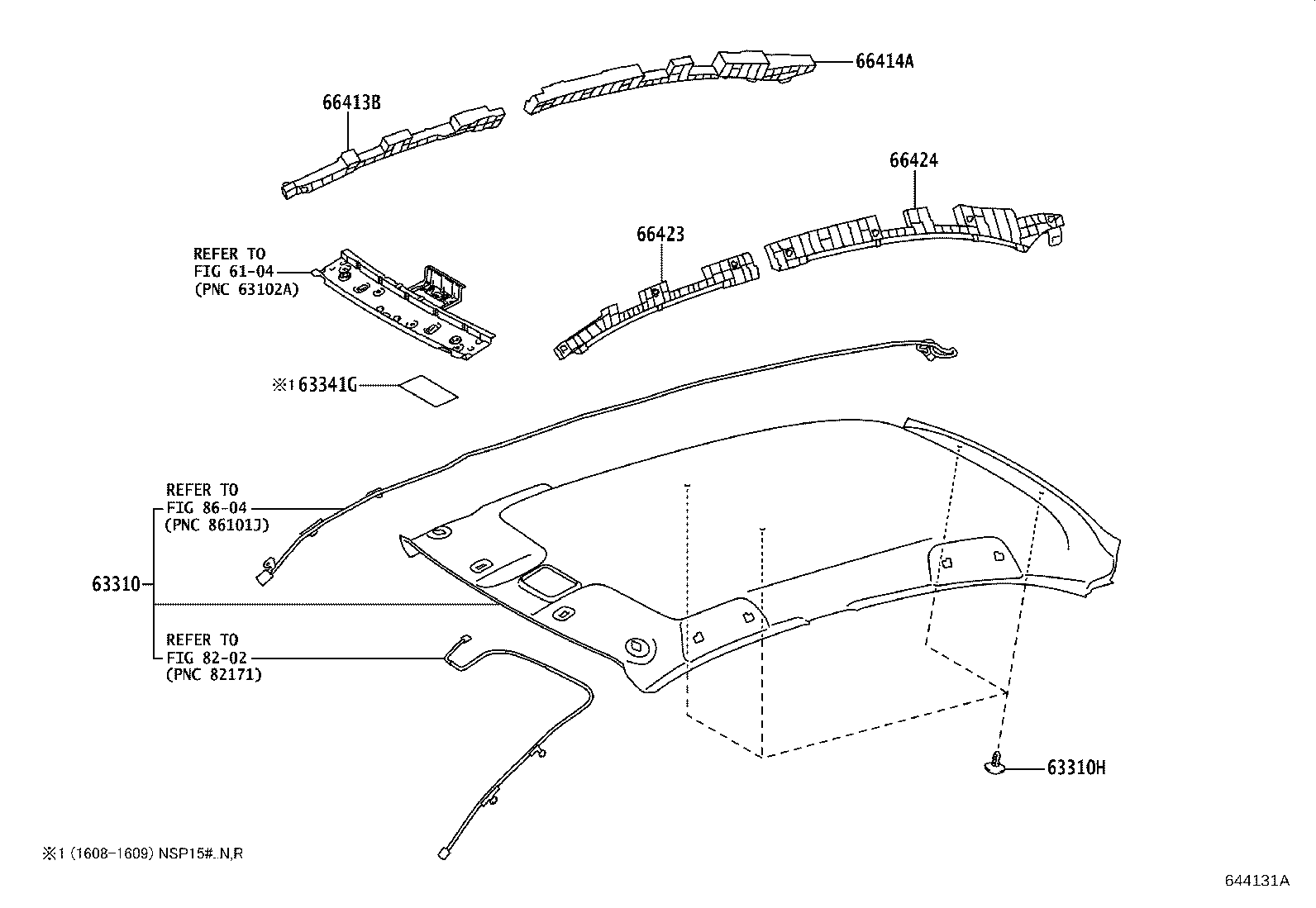

NSP151L-AHMNKC (2016)
Toyota Yaris (China)
(1608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0DF20A0 |
NSP15#..5D..5F IVORY,TRIM0# |
1 | ||
| 63310-0DF30B0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
1 | ||
| 63310-0DF20B0 |
NSP15#..5D..5F GRAY,TRIM2# |
1 | ||
| 63310-0DF30A0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-C0016B0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
2 | ||
| 90467-C0016B0 |
NSP15#..5D..(N,R) GRAY,TRIM2# |
4 | ||
| 90467-C0016A2 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),SHELL,TRIM0# |
2 | ||
| 90467-C0016A2 |
NSP15#..5D..(N,R) SHELL,TRIM0# |
4 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0D700 |
NSP15#..N,R |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0D280 |
NSP15# |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0D300 |
NSP15#..5D |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0D270 |
NSP15# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0D300 |
NSP15#..5D |
1 | ||
| Linked diagrams | ||||
| 6104 | ||||
| 8202 | ||||
| 8604 | ||||

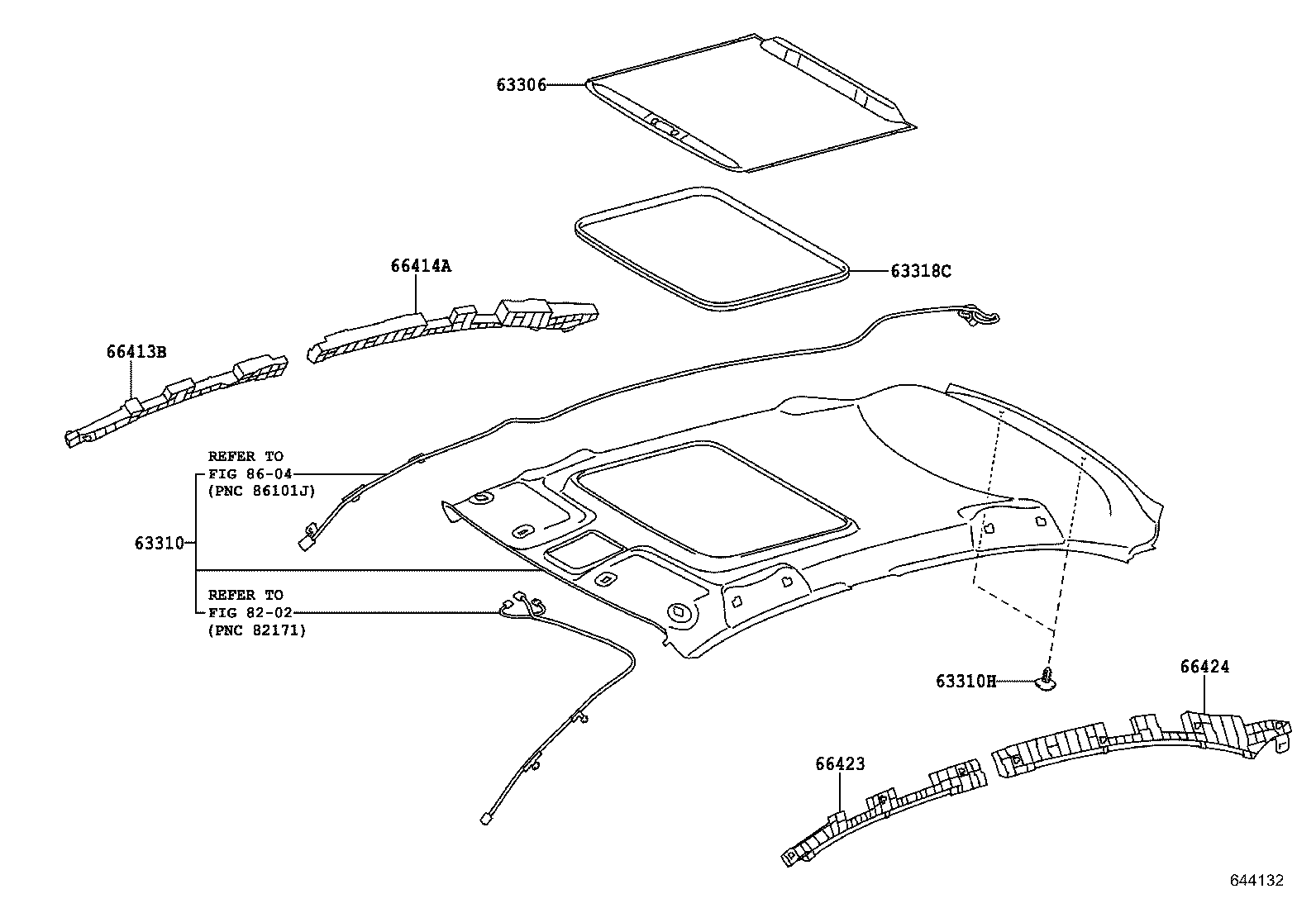

(1608- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0D070A0 |
NSP151..N MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63306-0D070B0 |
NSP151..N MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0DF20A0 |
NSP15#..5D..5F IVORY,TRIM0# |
1 | ||
| 63310-0DF30B0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
1 | ||
| 63310-0DF20B0 |
NSP15#..5D..5F GRAY,TRIM2# |
1 | ||
| 63310-0DF30A0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-C0016B0 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
2 | ||
| 90467-C0016B0 |
NSP15#..5D..(N,R) GRAY,TRIM2# |
4 | ||
| 90467-C0016A2 |
NSP151..5D..N MOON ROOF-WITH(TILT & SLIDE),SHELL,TRIM0# |
2 | ||
| 90467-C0016A2 |
NSP15#..5D..(N,R) SHELL,TRIM0# |
4 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-0D050A0 |
NSP151..N L=2085,MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0# |
1 | ||
| 63318-0D050B0 |
NSP151..N L=2085,MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0D280 |
NSP15# |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0D300 |
NSP15#..5D |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0D270 |
NSP15# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0D300 |
NSP15#..5D |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8604 | ||||
