NSP151L-AHMNKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Sep 9999
Engine 7NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

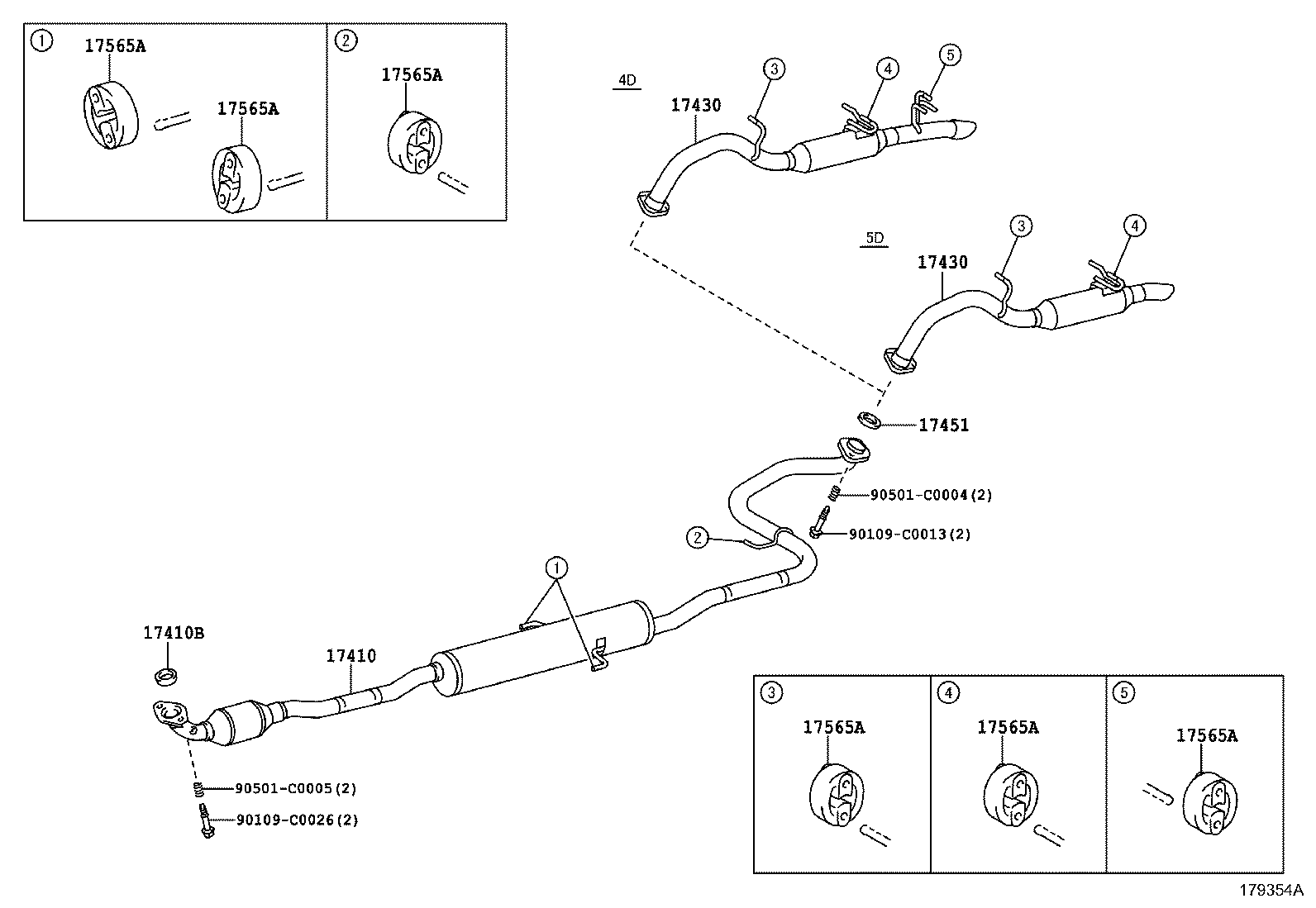

Click highlighted areas on diagram

diagram 17410 17410B 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y750

6NRFE,7NRFE..NSP15#

 1
17410-0Y751

7NRFE..NSP151

 1
17410-0Y830

7NRFE..NSP151

 1
17410B - GASKET, EXHAUST PIPE
17451-0J050

7NRFE..NSP151

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y370

7NRFE..NSP151..5D

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y370

7NRFE..NSP151..5D

 1
17451 - GASKET, EXHAUST PIPE
17451-0T031

7NRFE..NSP151

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0T060

7NRFE..NSP151..5D

 5
Common parts
90109-C0013
90109-C0026
90501-C0004
90501-C0005
