NSP151L-AHMNKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1608)5F

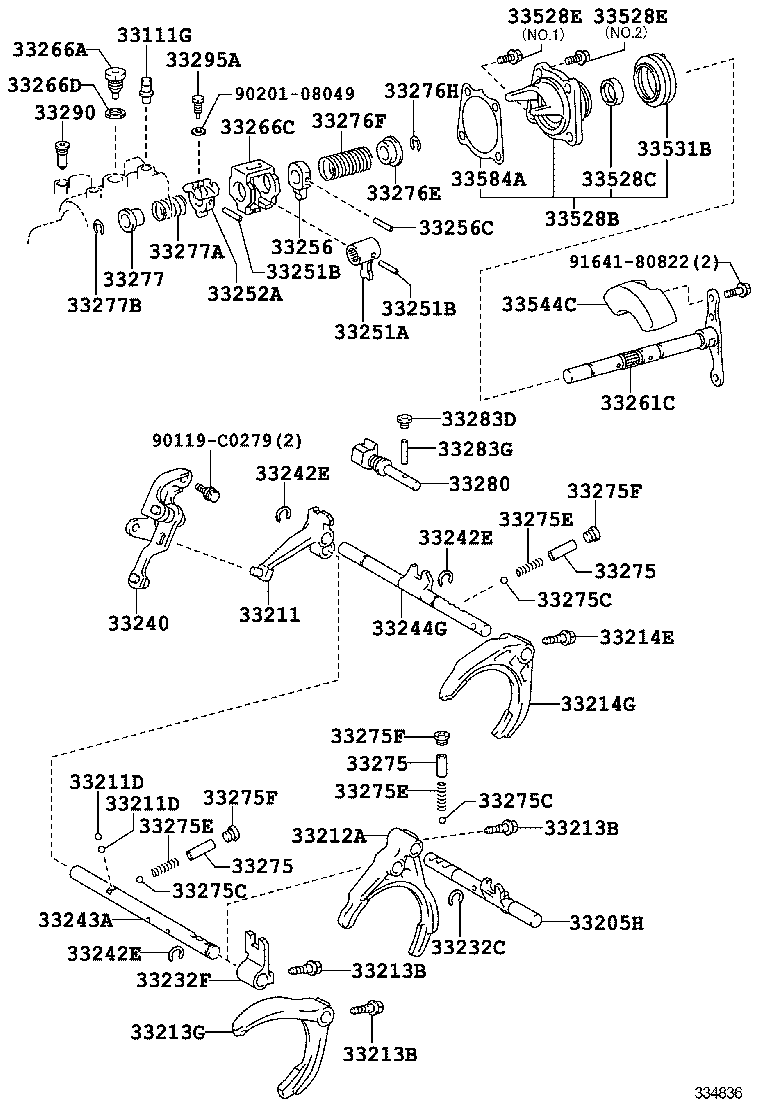

Click highlighted areas on diagram

C50,C51

diagram 33111G 33205H 33211 33211D 33211D 33212A 33213B 33213B 33213B 33213G 33214E 33214G 33232C 33232F 33240 33242E 33242E 33242E 33243A 33244G 33251A 33251B 33251B 33252A 33256 33256C 33261C 33266A 33266C 33266D 33275 33275 33275 33275C 33275C 33275C 33275E 33275E 33275E 33275F 33275F 33275F 33276E 33276F 33276H 33277 33277A 33277B 33280 33283D 33283G 33290 33295A 33528B 33528C 33528E 33528E 33531B 33544C 33584A 90119C0279 9020108049 9164180822
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-C3009

NSP15#..5F

 1
33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33205-0D020

NSP15#..5F

 1
33205-0D040

NSP15#..5F

 1
33211 - FORK, REVERSE SHIFT
33211-0D050

NSP15#..5F

 1
33211-0D080

NSP15#..5F

 1
33211D - BALL(FOR REVERSE SHIFT FORK)
90360-C0005

NSP15#..5F

OD=6.35

 2
33211D - BALL(FOR REVERSE SHIFT FORK)
90360-C0005

NSP15#..5F

OD=6.35

 2
33212A - FORK, GEAR SHIFT, NO.1
33212-0D030

NSP15#..5F

 1
33212-10013

NSP15#..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NSP15#..5F

 3
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NSP15#..5F

 3
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NSP15#..5F

 3
33213G - FORK, GEAR SHIFT, NO.2
33213-0D040

NSP15#..5F

 1
33213-20050

NSP15#..5F

 1
33214E - BOLT(FOR GEAR SHIFT FORK LOCK)
90109-C0009

NSP15#..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-0D050

NSP15#..5F

 1
33214-20050

NSP15#..5F

 1
33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
90520-12003

NSP15#..5F

 1
33232F - HEAD, GEAR SHIFT, NO.1
33232-0D020

NSP15#..5F

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-0D070

NSP15#..5F

 1
33240-0D040

NSP15#..5F

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NSP15#..5F

 3
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NSP15#..5F

 3
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NSP15#..5F

 3
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-0D060

NSP15#..5F

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-0D070

NSP15#..5F

 1
33244-0D050

NSP15#..5F

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-0D030

NSP15#..5F

 1
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-C0001

NSP15#..5F

L=25.5

 2
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-C0001

NSP15#..5F

L=25.5

 2
33252A - LEVER, SHIFT, INNER NO.2
33252-0D011

NSP15#..5F

 1
33256 - LEVER, SELECT INNER
33256-0D020

NSP15#..5F

 1
33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
90254-C0001

NSP15#..5F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-0D070

NSP15#..5F

 1
33266A - BOLT (FOR SHIFT INTER LOCK PLATE)
90109-18005

NSP15#..5F

 1
33266C - PLATE, SHIFT INTER LOCK
33266-0D030

NSP15#..5F

 1
33266D - GASKET (FOR SHIFT INTER LOCK PLATE)
90430-18008

NSP15#..5F

 1
90430-C0011

NSP15#..5F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NSP15#..5F

OD=10.7

 3
33275-12041

NSP15#..5F

OD=10.7

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NSP15#..5F

OD=10.7

 3
33275-12041

NSP15#..5F

OD=10.7

 2
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NSP15#..5F

OD=10.7

 3
33275-12041

NSP15#..5F

OD=10.7

 2
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NSP15#..5F

 3
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NSP15#..5F

 3
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NSP15#..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-C0023

NSP15#..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-C0023

NSP15#..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-C0023

NSP15#..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NSP15#..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NSP15#..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NSP15#..5F

 3
33276E - SEAT, SELECT SPRING, NO.1
33276-0D010

NSP15#..5F

 1
33276-0D030

NSP15#..5F

 1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-C0013

NSP15#..5F

 1
33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
90520-C0034

NSP15#..5F

 1
90520-C0003

NSP15#..5F

 1
33277 - SEAT, SELECT SPRING, NO.2
33277-0D020

NSP15#..5F

 1
33277-0D050

NSP15#..5F

 1
33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
90501-C0012

NSP15#..5F

 1
33277B - RING, E (FOR SELECT SPRING NO.2 SEAT)
90523-C0001

NSP15#..5F

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-0D020

NSP15#..5F

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-C0004

NSP15#..5F

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05003

NSP15#..5F

 1
33290 - BALL ASSY, LOCK, NO.1
33290-0D020

NSP15#..5F

 1
33295A - SHAFT, REVERSE RESTRICT
33295-0D010

NSP15#..5F

 1
33528B - COVER, CONTROL SHAFT
33506-0D040

NSP15#..5F

 1
33528C - SEAL, OIL (FOR CONTROL SHAFT COVER)
90310-C0001

NSP15#..5F

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-C0281

NSP15#..5F

*10-1.25PX25-19.8,NO.1:REFER ILLUST.

 2
90119-C0282

NSP15#..5F

*10-1.25PX25-19.8,NO.2:REFER ILLUST.

 2
33528E - BOLT (FOR CONTROL SHAFT COVER)
90119-C0281

NSP15#..5F

*10-1.25PX25-19.8,NO.1:REFER ILLUST.

 2
90119-C0282

NSP15#..5F

*10-1.25PX25-19.8,NO.2:REFER ILLUST.

 2
33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33531-0D020

NSP15#..5F

 1
33544C - DAMPER, SHIFT LEVER
33544-0D080

NSP15#..5F

 1
33584A - GASKET, CONTROL SHIFT LEVER RETAINER
33584-0D010

NSP15#..5F

 1
Common parts
90119-C0279
90201-08049
91641-80822
