NSP151L-AEXRKC (2017)
Toyota Yaris (China)
Production
Mar 2017
-
Sep 9999
Engine
7NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312-1812) ; (1812- )6NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-47040 |
7NRFE..NSP151 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0Y050 |
7NRFE..NSP151 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0Y120 |
7NRFE..NSP151 (L) |
1 | ||
| 13501-47060 |
7NRFE..NSP151 (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0Y100 |
7NRFE..NSP151 (L) |
1 | ||
| 13502-47050 |
7NRFE..NSP151 (J) |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-0Y030 |
7NRFE..NSP151 |
1 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0Y030 |
7NRFE..NSP151 |
8 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90105-C0083 | ||||
| 90105-C0346 | ||||
| 90119-C0097 | ||||
| Linked diagrams | ||||
| 1105 | ||||

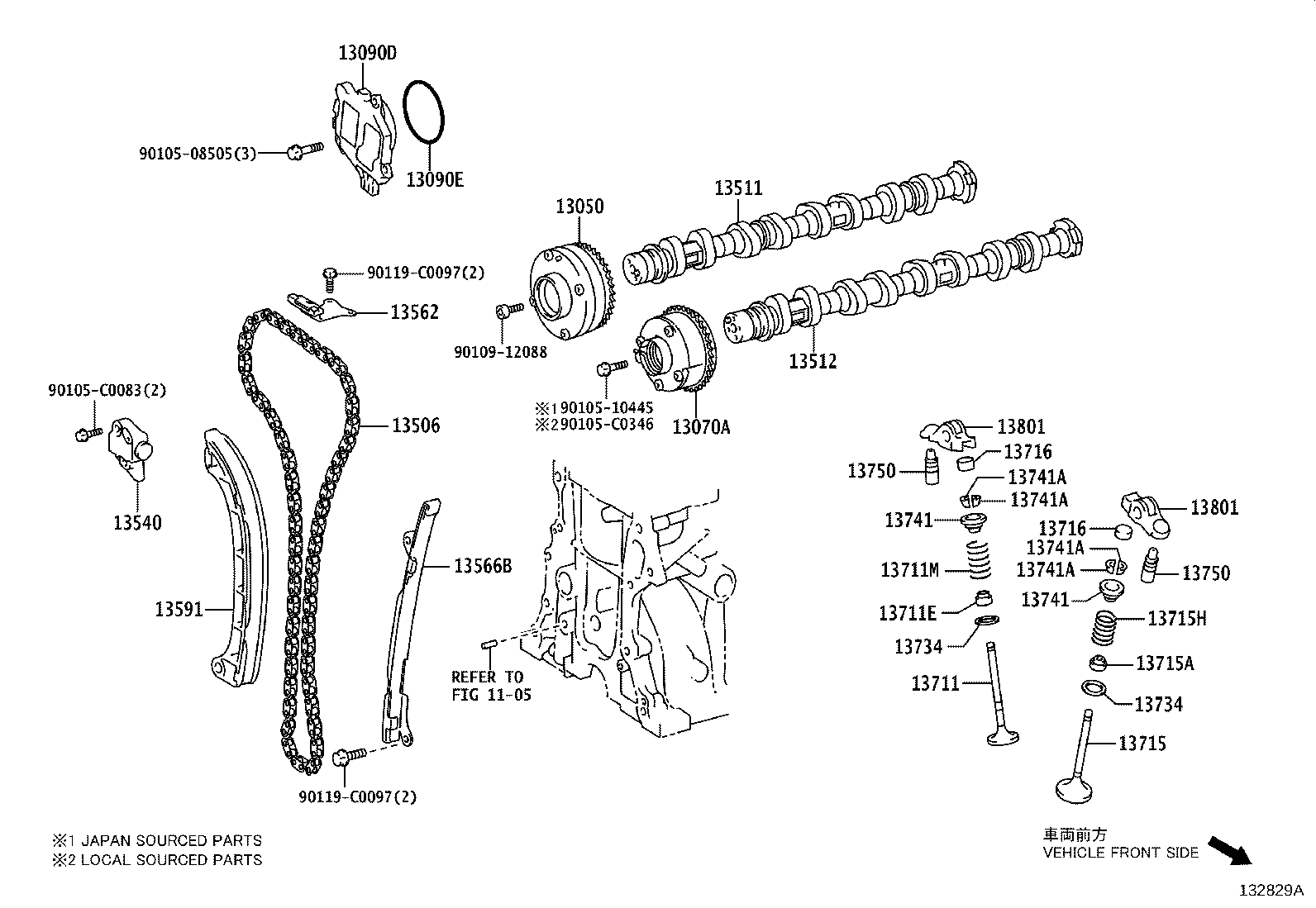

(1812- )7NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-47040 |
7NRFE..NSP151 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0Y050 |
7NRFE..NSP151 |
1 | ||
| 13090D - MOTOR ASSY, CAM TIMING CONTROL W/EDU | ||||
| 13090-47020 |
7NRFE..NSP151 |
1 | ||
| 13090E - RING, O(FOR CAM TIMING CONTROL MOTOR) | ||||
| 90301-92004 |
7NRFE..NSP151 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0Y120 |
7NRFE..NSP151 (L) |
1 | ||
| 13501-47060 |
7NRFE..NSP151 (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0Y100 |
7NRFE..NSP151 (L) |
1 | ||
| 13502-47050 |
7NRFE..NSP151 (J) |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-0Y030 |
7NRFE..NSP151 |
1 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0Y030 |
7NRFE..NSP151 |
8 | ||
| Common parts | ||||
| 90105-08505 | ||||
| 90105-10445 | ||||
| 90105-C0083 | ||||
| 90105-C0346 | ||||
| 90109-12088 | ||||
| 90119-C0097 | ||||
| Linked diagrams | ||||
| 1105 | ||||
