NSP151L-AEXNKC (2017)

Toyota Yaris (China)

Production Mar 2017 - Sep 9999
Engine 7NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

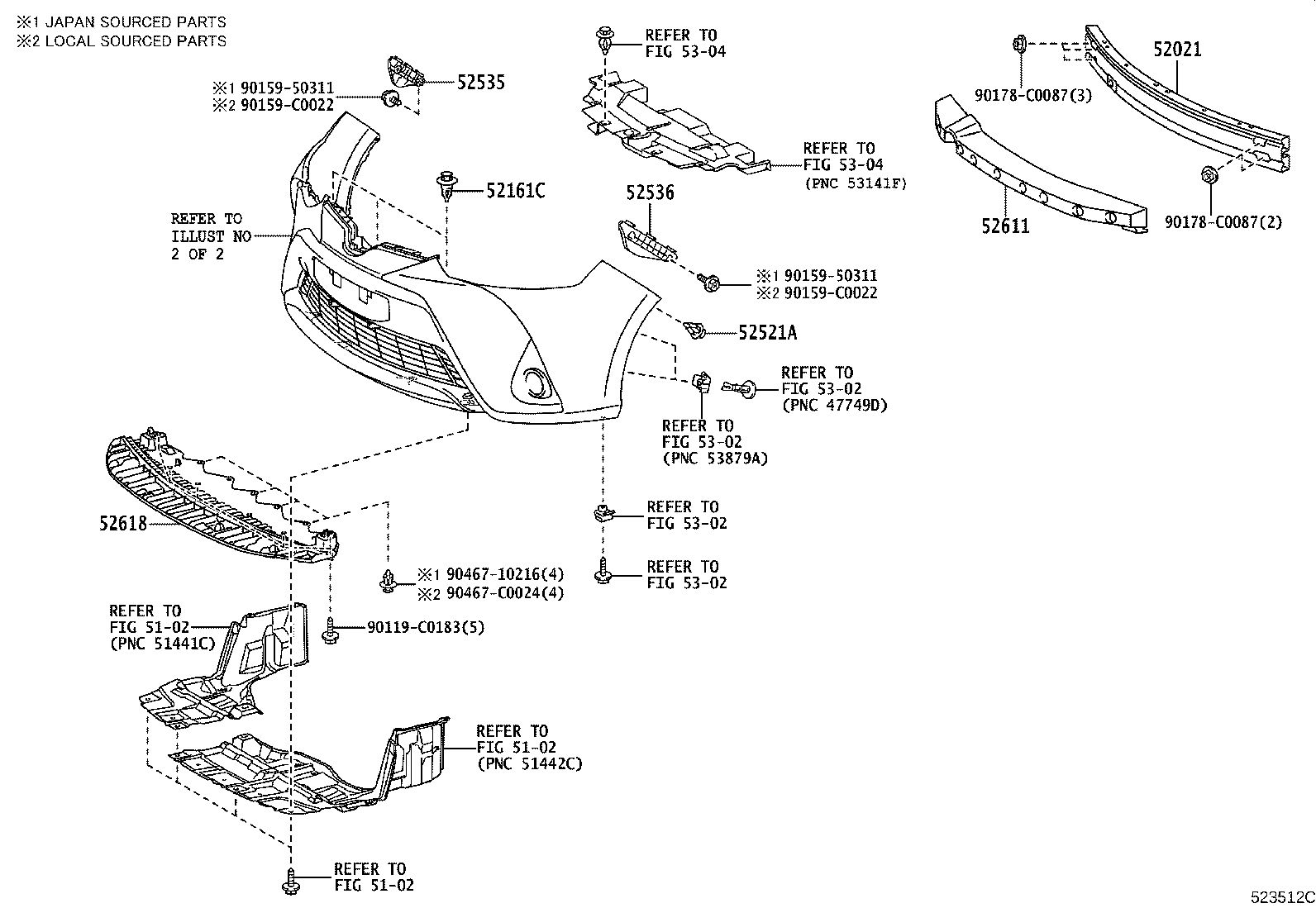

ILLUST NO. 1 OF 2(1703- )4D

Click highlighted areas on diagram

diagram 5102 5102 5102 52021 52161C 52521A 52535 52536 52611 52618 5302 5302 5302 5302 5304 5304 90119C0183 9015950311 9015950311 90159C0022 90159C0022 90178C0087 90178C0087 9046710216 90467C0024
Part # Description Qty Price
52161C - PIECE, FRONT BUMPER
52161-02040

NSP15#..4D

 3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170

NSP15#

(J)

 2
90467-C0032

NSP15#

(L)

 2
Common parts
90119-C0183
90159-50311
90159-C0022
90178-C0087
90467-10216
90467-C0024
Linked diagrams
5102
5302
5304

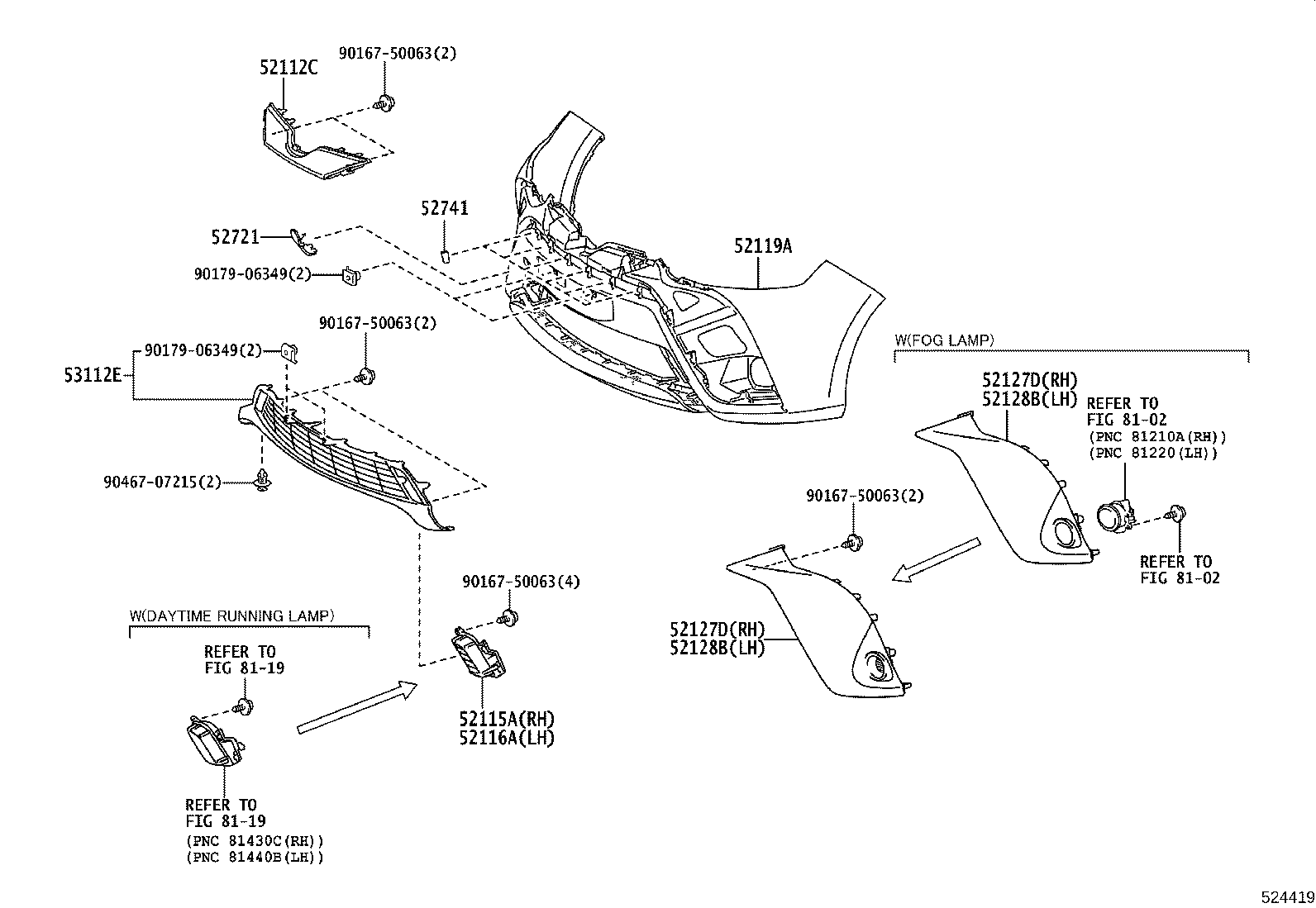

ILLUST NO. 2 OF 2(1703- )4D

Click highlighted areas on diagram

diagram 52112C 52115A 52116A 52119A 52127D 52127D 52128B 52128B 52721 52741 53112E 8102 8102 8119 8119 9016750063 9016750063 9016750063 9016750063 9017906349 9017906349 9046707215
Part # Description Qty Price
52112C - EXTENSION, FRONT BUMPER
52112-0D900

NSP15#..4D

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0D100

NSP151..CVT..N

MID HB, SD PACKAGE

 1
52115-0D100

NSP151..CVT..R

BASE UP HB, SD PACKAGE

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0D100

NSP151..CVT..R

BASE UP HB, SD PACKAGE

 1
52116-0D100

NSP151..CVT..N

MID HB, SD PACKAGE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D923

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52127-0D924

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52127-0D923

NSP15#..4D..R

 1
52127-0D923

NSP151..4D..CVT..R

BASE HB, SD PACKAGE

 1
52127-0D924

NSP151..4D..(G,N)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D923

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52127-0D924

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52127-0D923

NSP15#..4D..R

 1
52127-0D923

NSP151..4D..CVT..R

BASE HB, SD PACKAGE

 1
52127-0D924

NSP151..4D..(G,N)

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D901

NSP151..4D..CVT..R

BASE HB, SD PACKAGE

 1
52128-0D901

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52128-0D902

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52128-0D901

NSP15#..4D..R

 1
52128-0D902

NSP151..4D..(G,N)

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D901

NSP151..4D..CVT..R

BASE HB, SD PACKAGE

 1
52128-0D901

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52128-0D902

NSP151..4D..CVT..R

BASE UP HB, SD PACKAGE

 1
52128-0D901

NSP15#..4D..R

 1
52128-0D902

NSP151..4D..(G,N)

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D510

NSP15#..4D

 1
Common parts
90167-50063
90179-06349
90467-07215
Linked diagrams
8102
8119
