NSP151L-AEMNKC (2017)

Toyota Yaris (China)

Production Mar 2017 - Sep 9999
Engine 7NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )7NRFE

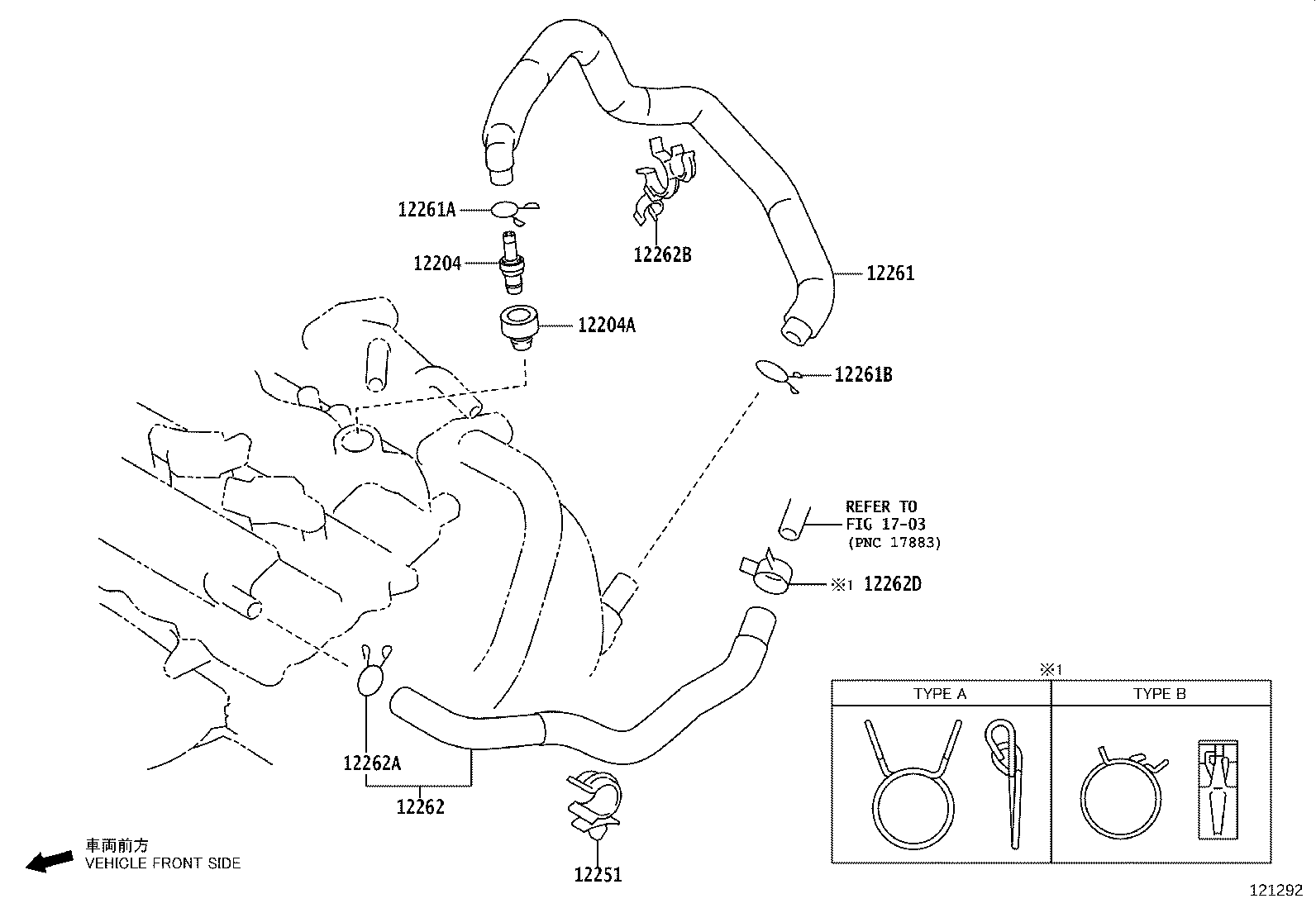

Click highlighted areas on diagram

diagram 12204 12204A 12251 12261 12261A 12261B 12262 12262A 12262B 12262D 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-47110

7NRFE..NSP151

 1
12251 - CLAMP, VENTILATION TUBE
12251-0Y010

7NRFE..NSP151

 1
12261 - HOSE, VENTILATION
12261-0Y090

7NRFE..NSP151

 1
12262 - HOSE, VENTILATION, NO.2
12262-0Y160

7NRFE..NSP151

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

7NRFE..NSP151

 1
12262B - CLAMP(FOR VENTILATION HOSE)
16581-0Y070

7NRFE..NSP151

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

7NRFE..NSP151

TYPE A:REFER ILLUST.

 1
96136-42201

7NRFE..NSP151

TYPE B:REFER ILLUST.

 1
Linked diagrams
1703
