NSP150L-AHMRKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Nov 2019
Engine 6NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608-1807)NSP151..5F ; (1608- )NSP150..5F

Click highlighted areas on diagram

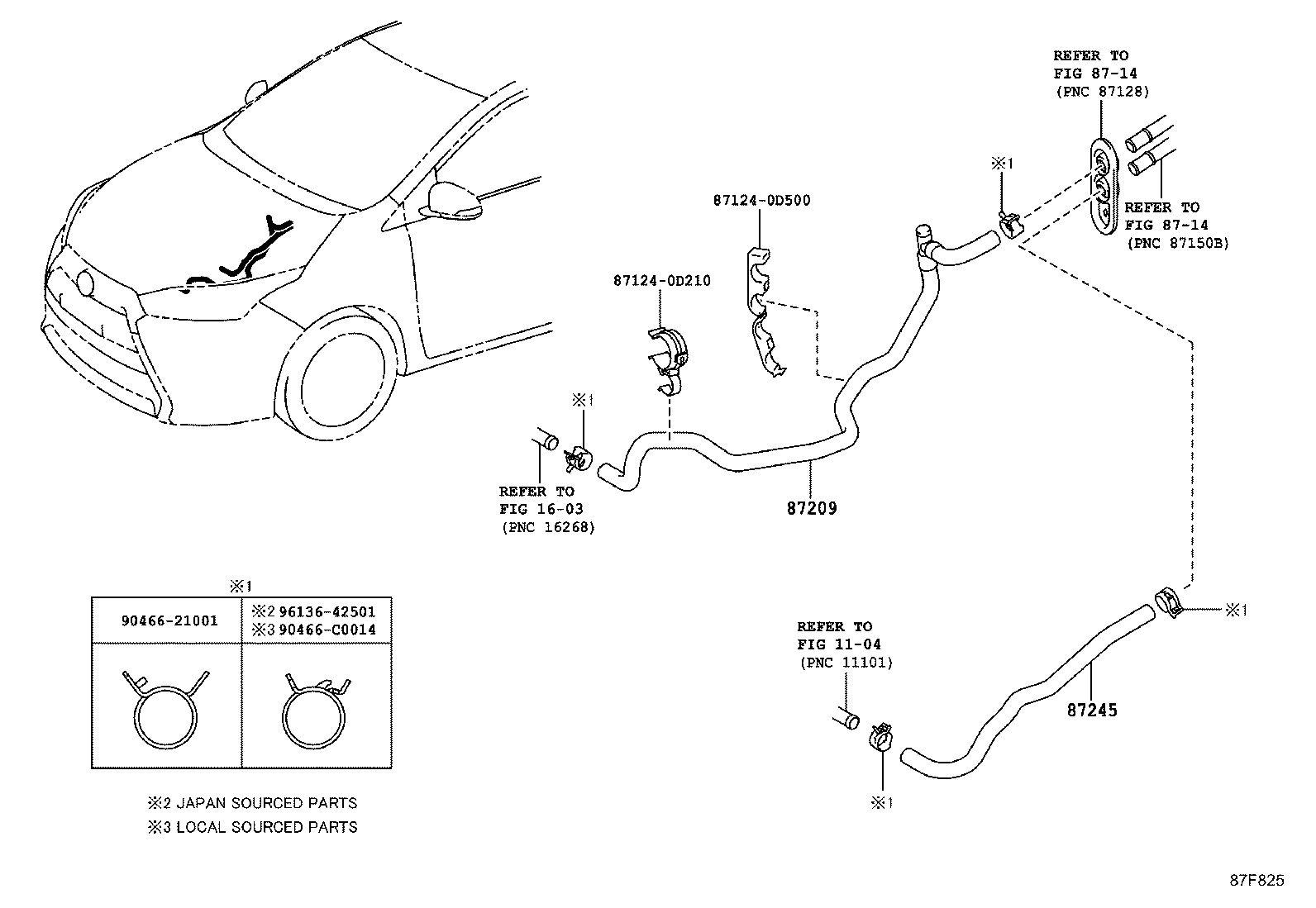

diagram 1104 1603 871240D210 871240D500 8714 8714 87209 87245 9046621001 90466C0014 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D610

NSP150..5F

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D710

NSP150..5F

 1
Common parts
87124-0D210
87124-0D500
90466-21001
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714
