NSP150L-AHMRKC (2016)
Toyota Yaris (China)

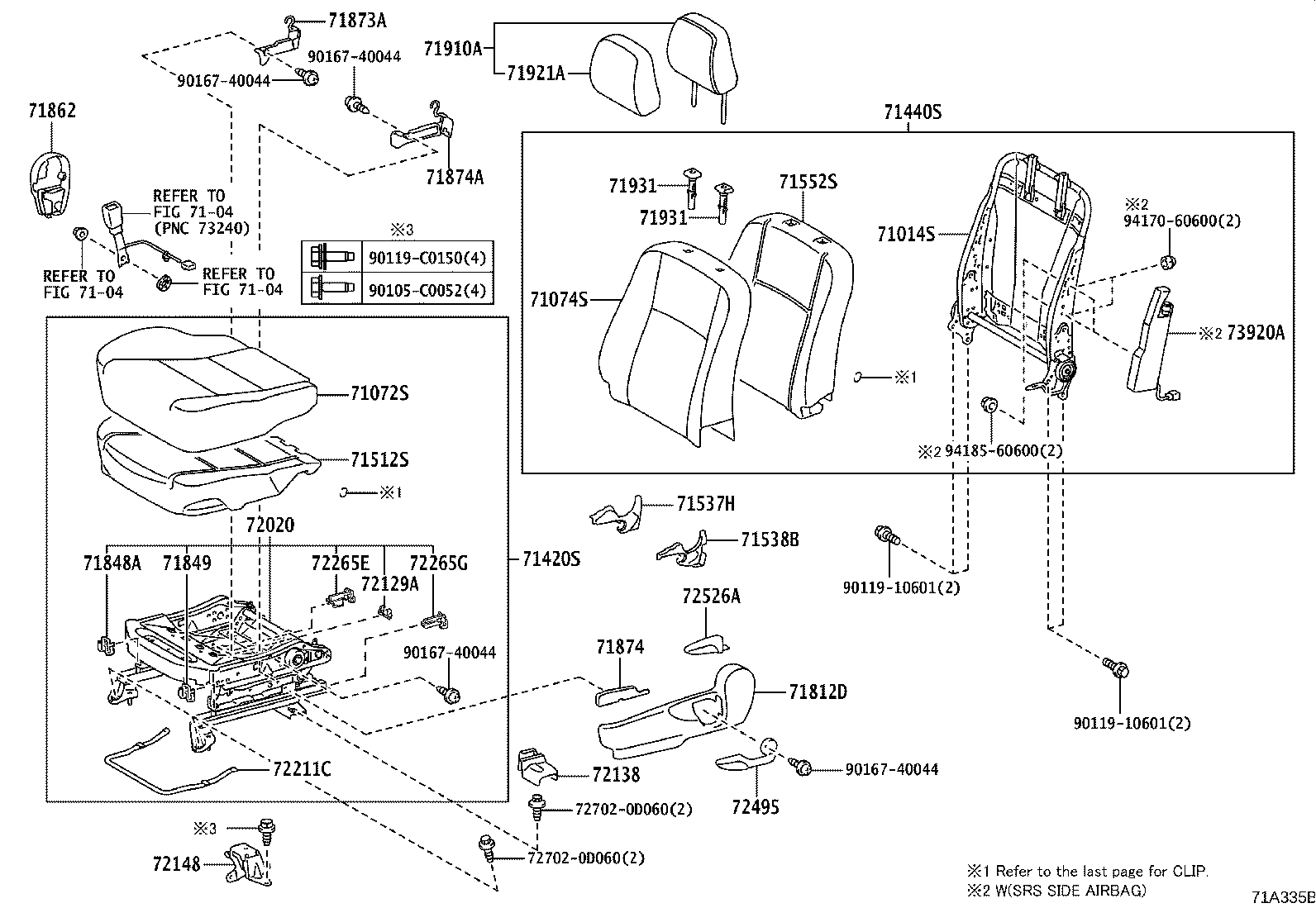

ILLUST NO. 1 OF 2(1608- )
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0D070 |
NSP15#..R |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0DU50A2 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71072-0DU50C2 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0DS90A3 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71074-0DS90C3 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0DV90A2 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71420-0DV90C2 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-0DY90A3 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71440-0DY90C3 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D550 |
NSP15# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0D200A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71537-0D200C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0D190C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71538-0D190A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D540 |
NSP15#..R |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D220A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71812-0D220C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0D130 |
NSP150 |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0D130 |
NSP150 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D170A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71862-0D170C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06440 |
NSP15# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0D370 |
NSP15# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06520 |
NSP15# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DG90C0 |
NSP15#..N,R BLACK,TRIM2# |
2 | ||
| 71910-0DG90A0 |
NSP15#..N,R IVORY,TRIM0# |
2 | ||
| 71921A - COVER, FRONT SEAT HEADREST | ||||
| 71921-0D450A0 |
NSP15#..N,R IVORY,TRIM0# |
2 | ||
| 71921-0D450C0 |
NSP15#..N,R BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D160A0 |
NSP15# W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D160C0 |
NSP15#..N,R W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0D170A0 |
NSP15# W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-0D170C0 |
NSP15#..N,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D160A0 |
NSP15# W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D160C0 |
NSP15#..N,R W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0D170A0 |
NSP15# W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-0D170C0 |
NSP15#..N,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0D531 |
NSP15# |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-0D020 |
NSP150 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D140A0 |
NSP150 IVORY,TRIM0# |
1 | ||
| 72138-0D140C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D140 |
NSP150 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D200 |
NSP15# |
1 | ||
| 72265E - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0D030 |
NSP150 |
1 | ||
| 72265G - COVER, SEAT TRACK UPPER RAIL, LH(FOR LH SEAT) | ||||
| 72265-0D020 |
NSP150 |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-0D070A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 72495-0D070C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0P020C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 72526-0P020A2 |
NSP15# IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-0D060 | ||||
| 90105-C0052 | ||||
| 90119-10601 | ||||
| 90119-C0150 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

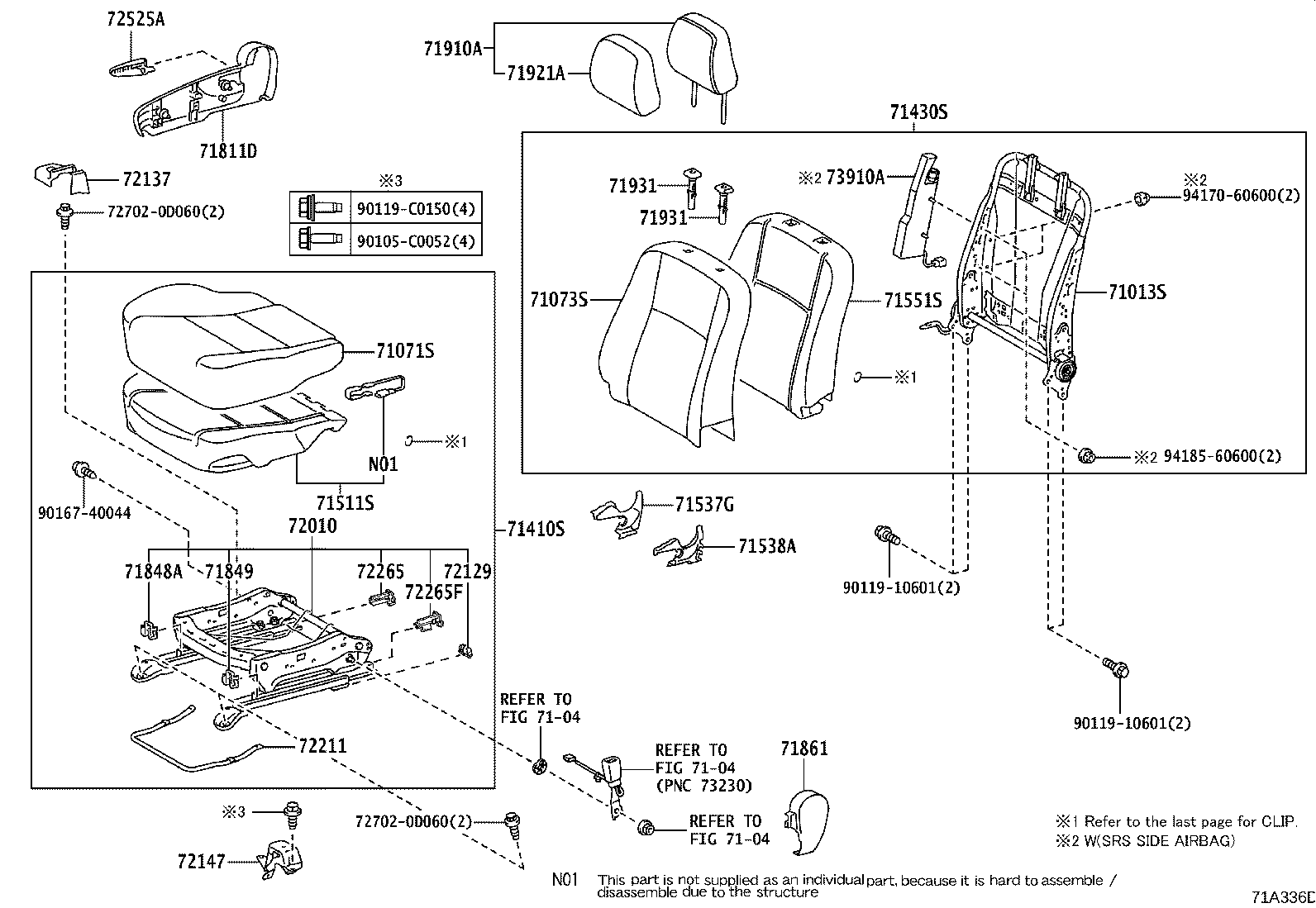

ILLUST NO. 2 OF 2(1608- )
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0D070 |
NSP15#..R |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0DU80A2 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71071-0DU80C2 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0DW40C3 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71073-0DW40A3 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0DY30C2 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71410-0DY30A2 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0DY10C3 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71430-0DY10A3 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0D130 |
NSP15# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-0D190A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71537-0D190C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0D180C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71538-0D180A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D640 |
NSP15#..R |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D220A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 71811-0D220C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0D130 |
NSP150 |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0D130 |
NSP150 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D170C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| 71861-0D170A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DG90C0 |
NSP15#..N,R BLACK,TRIM2# |
2 | ||
| 71910-0DG90A0 |
NSP15#..N,R IVORY,TRIM0# |
2 | ||
| 71921A - COVER, FRONT SEAT HEADREST | ||||
| 71921-0D450A0 |
NSP15#..N,R IVORY,TRIM0# |
2 | ||
| 71921-0D450C0 |
NSP15#..N,R BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D160A0 |
NSP15# W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D160C0 |
NSP15#..N,R W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0D170A0 |
NSP15# W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-0D170C0 |
NSP15#..N,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D160A0 |
NSP15# W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-0D160C0 |
NSP15#..N,R W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0D170A0 |
NSP15# W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-0D170C0 |
NSP15#..N,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0D511 |
NSP15# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-0D020 |
NSP150 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D160A0 |
NSP150 IVORY,TRIM0# |
1 | ||
| 72137-0D160C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D130 |
NSP150 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D200 |
NSP15# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0D020 |
NSP150 |
1 | ||
| 72265F - COVER, SEAT TRACK UPPER RAIL, LH(FOR RH SEAT) | ||||
| 72265-0D030 |
NSP150 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D290A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 72525-0D290C0 |
NSP15#..N,R BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-0D060 | ||||
| 90105-C0052 | ||||
| 90119-10601 | ||||
| 90119-C0150 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
