NSP150L-AEXRKC (2017)
Toyota Yaris (China)
Production
Mar 2017
-
Nov 2019
Engine
6NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

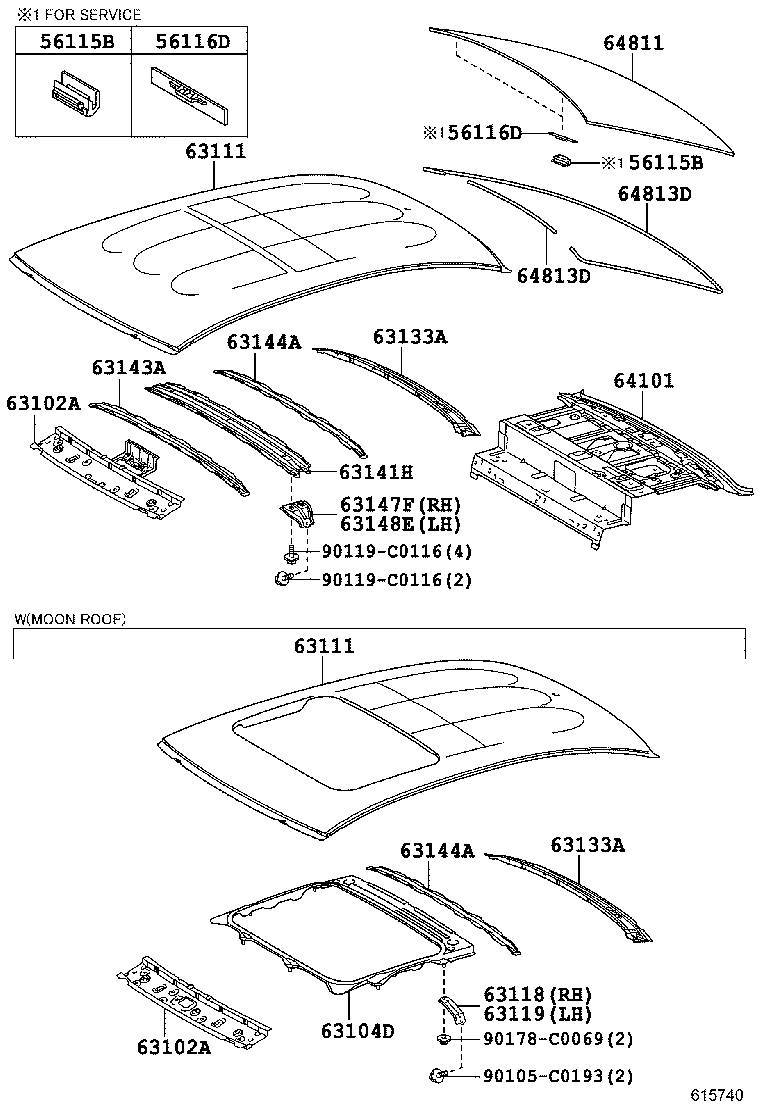

ILLUST NO. 1 OF 2(1703- )4D
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
NSP150..4D |
1 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
NSP150..4D |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NSP150..4D |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NSP150..4D |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0150 |
NSP15#..4D..(N,R) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0150 |
NSP15#..4D..(N,R) |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-0D100 |
NSP150..4D |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-0D100 |
NSP150..4D |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D150 |
NSP15#..4D |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D150 |
NSP15#..4D |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-0D310 |
NSP15#..4D |
1 | ||
| 64101-0D312 |
NSP150..4D |
1 | ||
| 64101-0D311 |
NSP15#..4D |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-0D390 |
NSP15#..4D |
1 | ||
| 64801-0D210 |
NSP15#..4D |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-0D180 |
NSP150..4D L=573 |
1 | ||
| 64813-0D360 |
NSP150..4D L=2563 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64814-0D180 |
NSP150..4D L=573 |
1 | ||
| 64813-0D360 |
NSP150..4D L=2563 |
1 | ||
| Common parts | ||||
| 90105-C0193 | ||||
| 90119-C0116 | ||||
| 90178-C0069 | ||||

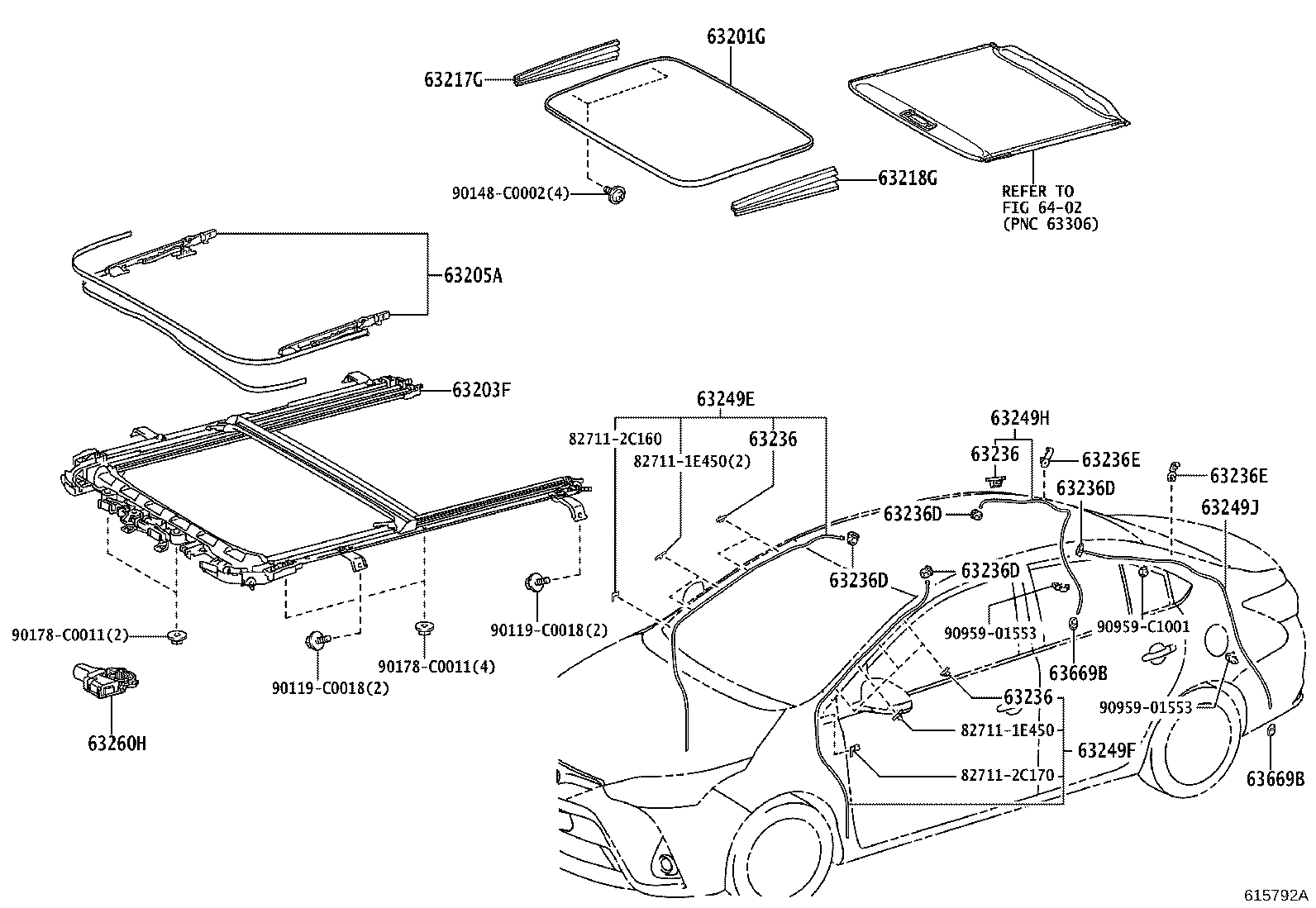

ILLUST NO. 2 OF 2(1703- )4D
Click highlighted areas on diagram
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E450 | ||||
| 82711-2C160 | ||||
| 82711-2C170 | ||||
| 90119-C0018 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| 90959-01553 | ||||
| 90959-C1001 | ||||
| Linked diagrams | ||||
| 6402 | ||||
