NSP150L-AEMRKC (2017)
Toyota Yaris (China)
Production
Mar 2017
-
Nov 2019
Engine
6NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

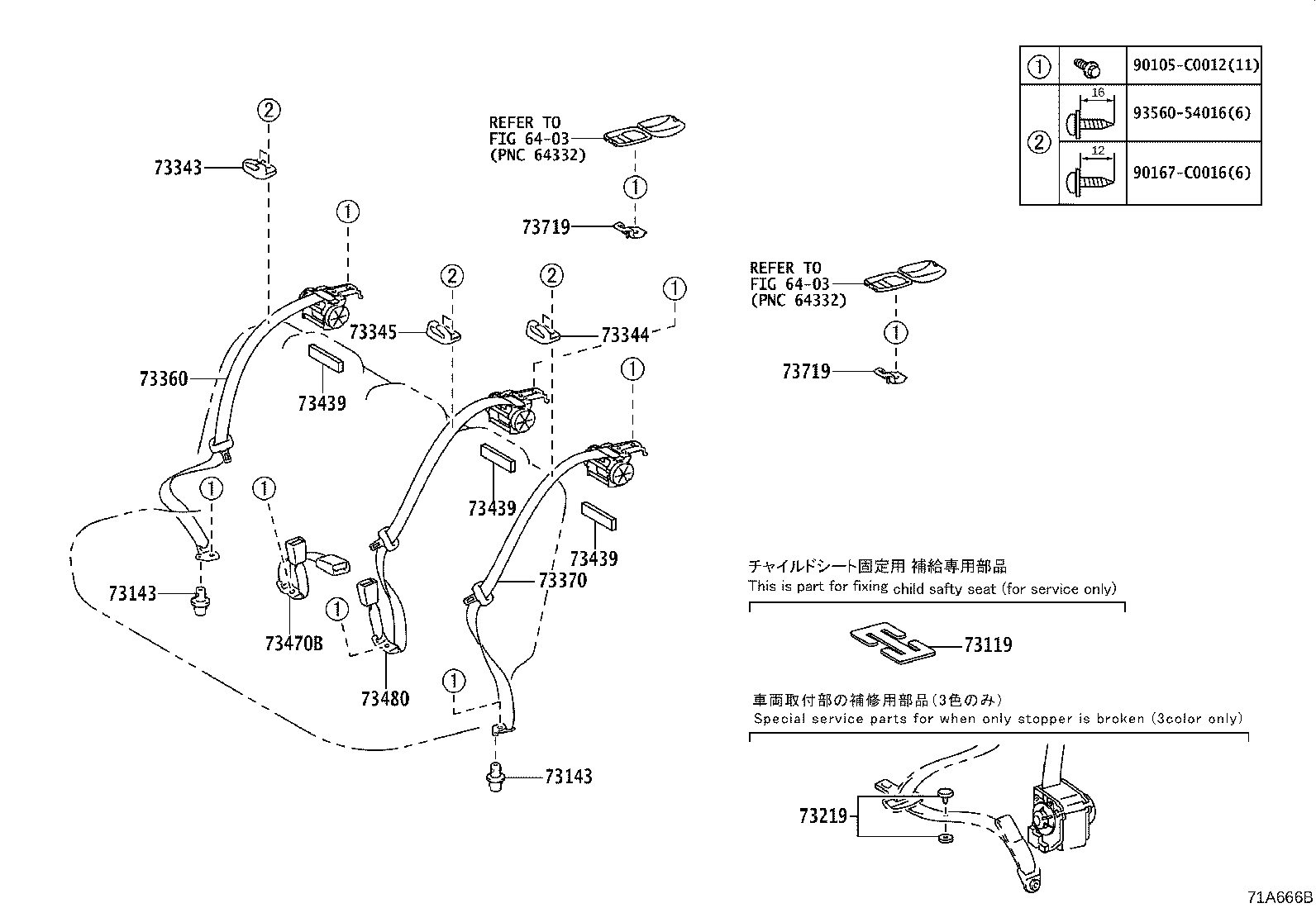

ILLUST NO. 2 OF 2(1703- )4D..G,N
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A3 |
NSP150..4D IVORY,TRIM0# |
1 | ||
| 73343-33020C1 |
NSP150..4D BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020A3 |
NSP150..4D IVORY,TRIM0# |
1 | ||
| 73344-33020C1 |
NSP150..4D BLACK,TRIM2# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020C1 |
NSP15#..4D BLACK,TRIM2# |
1 | ||
| 73344-33020A3 |
NSP15#..4D IVORY,TRIM0# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D160C0 |
NSP15#..4D BLACK,TRIM2# |
1 | ||
| 73480-0D160A0 |
NSP15#..4D IVORY,TRIM0# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP150..4D |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP150..4D |
2 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90167-C0016 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 6403 | ||||
ILLUST NO. 2 OF 2(1703- )4D..R
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A3 |
NSP150..4D IVORY,TRIM0# |
1 | ||
| 73343-33020C1 |
NSP150..4D BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020A3 |
NSP150..4D IVORY,TRIM0# |
1 | ||
| 73344-33020C1 |
NSP150..4D BLACK,TRIM2# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020C1 |
NSP15#..4D BLACK,TRIM2# |
1 | ||
| 73344-33020A3 |
NSP15#..4D IVORY,TRIM0# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..4D..R |
2 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D160C0 |
NSP15#..4D BLACK,TRIM2# |
1 | ||
| 73480-0D160A0 |
NSP15#..4D IVORY,TRIM0# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP150..4D |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP150..4D |
2 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90167-C0016 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 6403 | ||||
