NSP150L-AEMRKC (2017)
Toyota Yaris (China)
Production
Mar 2017
-
Nov 2019
Engine
6NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

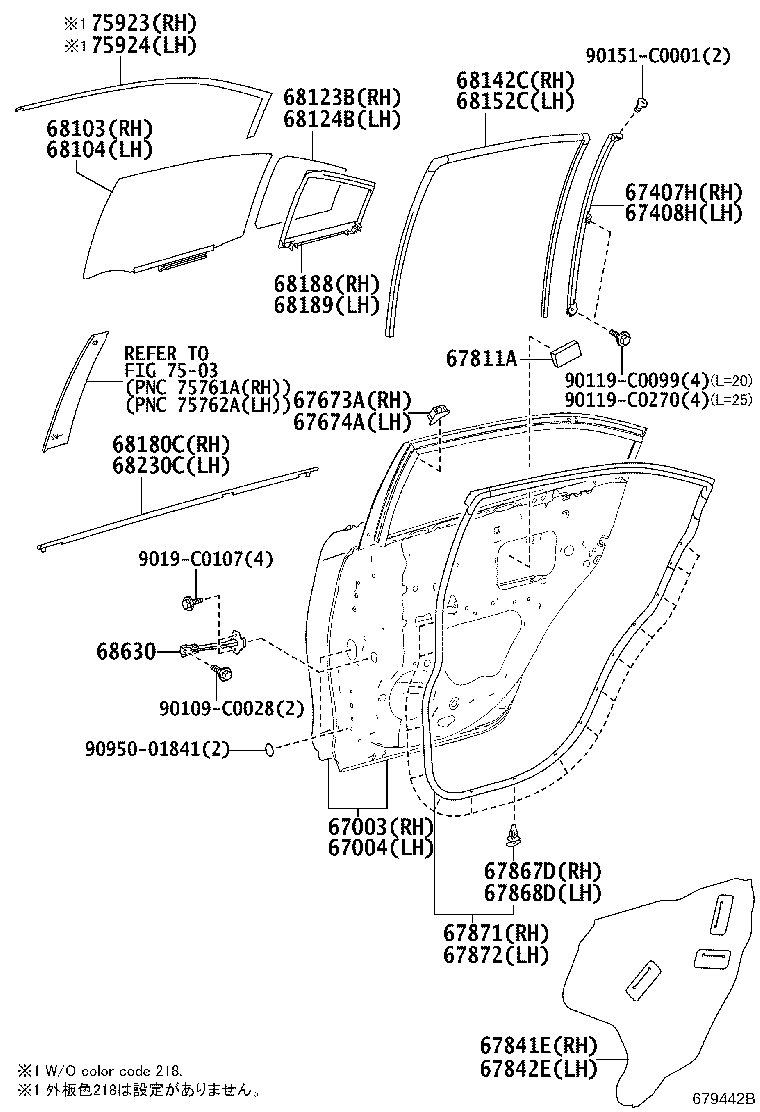

ILLUST NO. 1 OF 2(1703- )4D
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D390 |
NSP15#..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D390 |
NSP15#..4D |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-0D210 |
NSP150..4D |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-0D210 |
NSP150..4D |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP150..4D |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP150..4D |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D210 |
NSP150..4D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D210 |
NSP150..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D420 |
NSP15#..4D |
1 | ||
| 68130-0D650 |
NSP15#..4D |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D650 |
NSP15#..4D |
1 | ||
| 68140-0D420 |
NSP15#..4D |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D500 |
NSP15#..4D |
1 | ||
| 68123-0D280 |
NSP15#..4D |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D500 |
NSP15#..4D |
1 | ||
| 68124-0D280 |
NSP15#..4D |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D260 |
NSP150..4D |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D220 |
NSP150..4D |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D310 |
NSP150..4D |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D160 |
NSP150..4D |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D160 |
NSP150..4D |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D310 |
NSP150..4D |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0D250 |
NSP15#..4D |
1 | ||
| 75923-0D250 |
NSP15#..4D |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0D250 |
NSP15#..4D |
1 | ||
| 75924-0D250 |
NSP15#..4D |
1 | ||
| Common parts | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0270 | ||||
| 90151-C0001 | ||||
| 90950-01841 | ||||
| Linked diagrams | ||||
| 7503 | ||||
