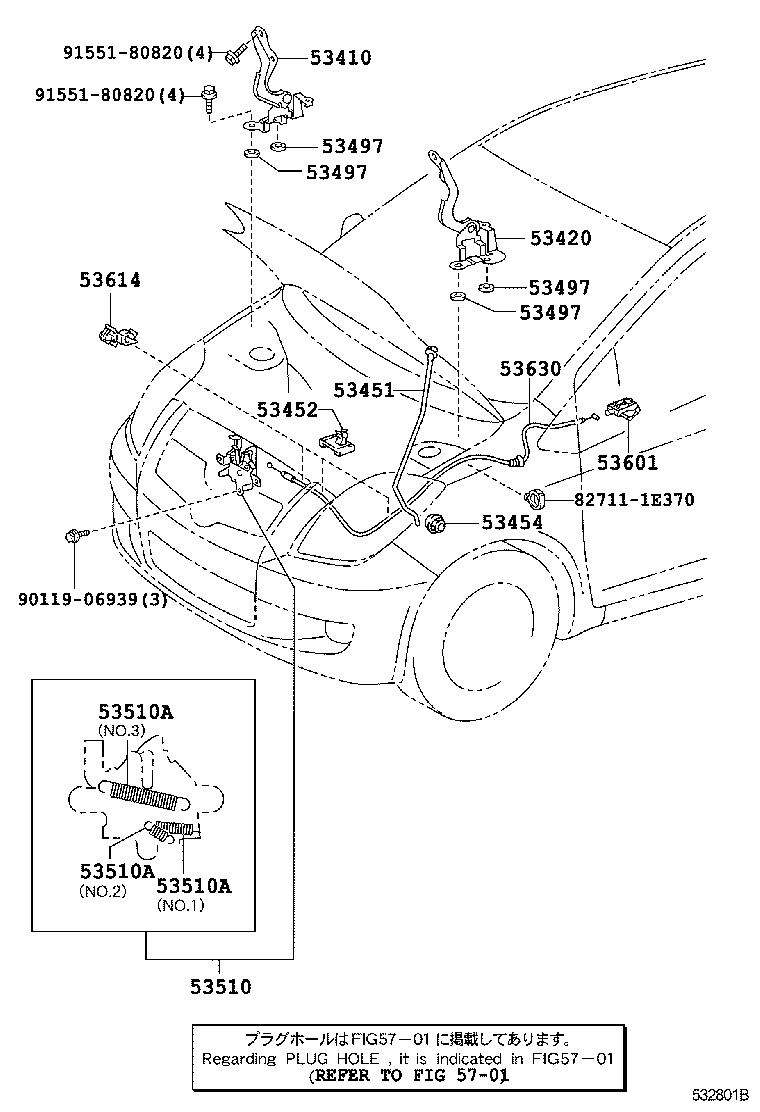

NCP90L-AHPGKC (2008)
Toyota Yaris (China)
(0805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-0D230 |
NCP90,ZSP91 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-0D230 |
NCP90,ZSP91 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-0D070 |
NCP90,ZSP91..STD |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-0D020 |
NCP90,ZSP91..STD |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-0D010 |
NCP90,ZSP91..STD |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-0D090 |
NCP90,ZSP91..STD T=0.5 |
4 | ||
| 53497-0D100 |
NCP90,ZSP91..STD T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-0D090 |
NCP90,ZSP91..STD T=0.5 |
4 | ||
| 53497-0D100 |
NCP90,ZSP91..STD T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-0D090 |
NCP90,ZSP91..STD T=0.5 |
4 | ||
| 53497-0D100 |
NCP90,ZSP91..STD T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-0D090 |
NCP90,ZSP91..STD T=0.5 |
4 | ||
| 53497-0D100 |
NCP90,ZSP91..STD T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-0D230 |
NCP90 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
NCP90,ZSP91..STD WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-14085 |
NCP90,ZSP91..STD WD=1.4,CW=12,NO.3 |
1 | ||
| 90506-09055 |
NCP90,ZSP91..STD WD=0.9,CW=21,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
NCP90,ZSP91..STD WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-14085 |
NCP90,ZSP91..STD WD=1.4,CW=12,NO.3 |
1 | ||
| 90506-09055 |
NCP90,ZSP91..STD WD=0.9,CW=21,NO.1 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
NCP90,ZSP91..STD WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-14085 |
NCP90,ZSP91..STD WD=1.4,CW=12,NO.3 |
1 | ||
| 90506-09055 |
NCP90,ZSP91..STD WD=0.9,CW=21,NO.1 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D010B2 |
NCP90 DK.GRAY,TRIM4# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-0D010 |
NCP90,ZSP91..STD |
3 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-0D120 |
NCP90,ZSP91..STD |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90119-06939 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
