NCP90L-AHPGKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

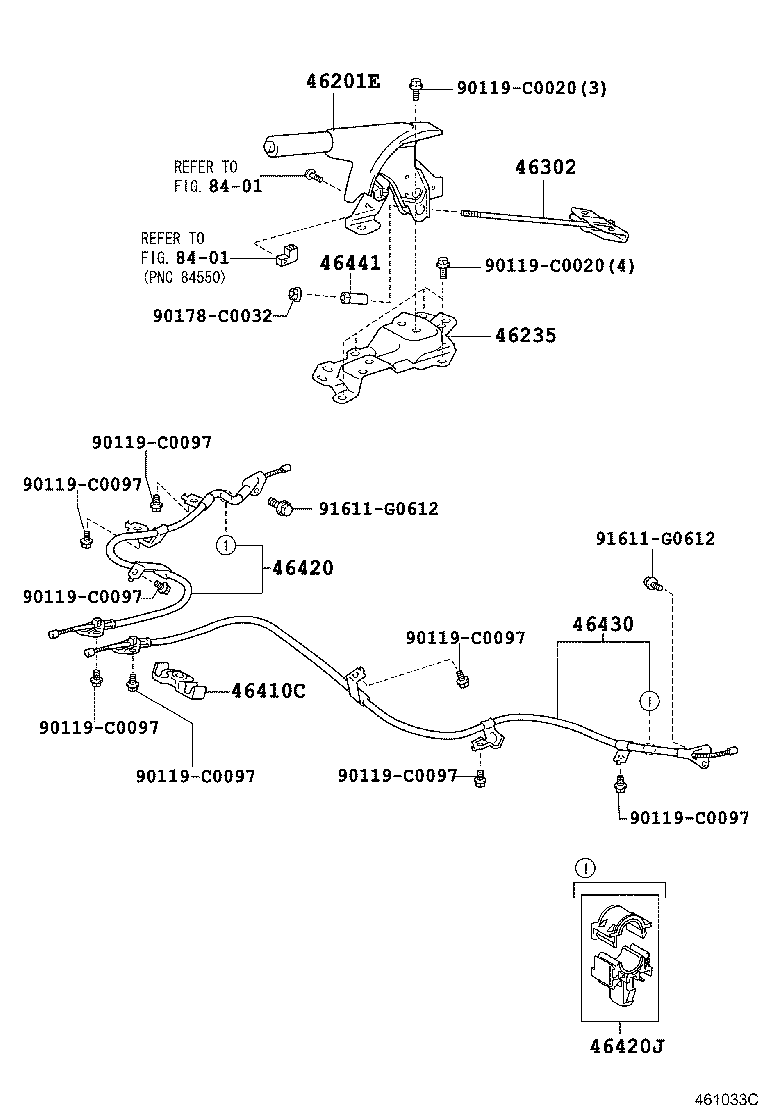

Click highlighted areas on diagram

diagram 46201E 46235 46302 46410C 46420 46420J 46430 46441 8401 8401 90119C0020 90119C0020 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90119C0097 90178C0032 91611G0612 91611G0612
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D150B0

NCP90

DK.GRAY,TRIM4#

 1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-0D050

NCP90,ZSP91..STD

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-0D050

NCP90,ZSP91..STD

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D050

NCP90,ZSP91..STD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D151

NCP90,ZSP91

 1
46420-0D150

NCP90,ZSP91

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030

NCP90,ZSP91

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D150

NCP90,ZSP91

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCP90,ZSP91..STD

 1
Common parts
90119-C0020
90119-C0097
90178-C0032
91611-G0612
Linked diagrams
8401
