NCP90L-AHMGKC (2008)
Toyota Yaris (China)
Production
May 2008
-
Aug 2013
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0805- )

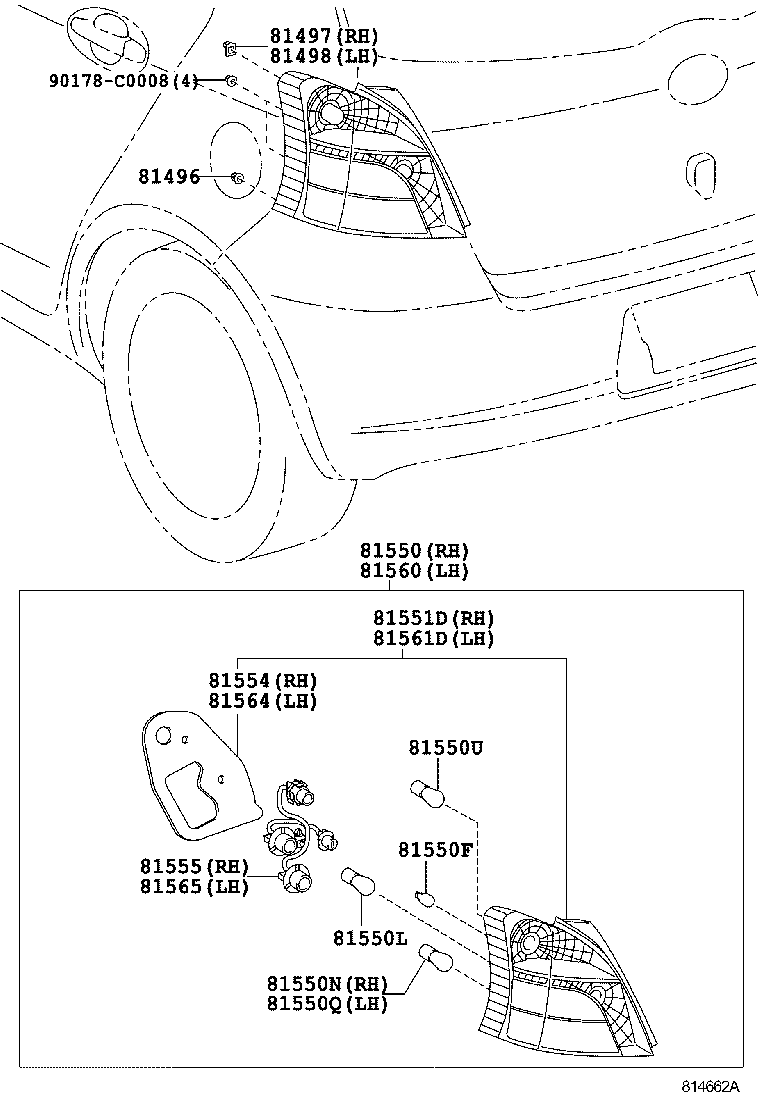

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-0D030 |
NCP90,ZSP91..STD |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-0D040 |
NCP90,ZSP91..STD |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81497-0D040 |
NCP90,ZSP91..STD |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
NCP90,ZSP91..STD |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15009 |
NCP90,ZSP91..STD |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 99132-11210 |
NCP90,ZSP91..STD |
1 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 99132-11210 |
NCP90,ZSP91..STD |
1 | ||
| 81550U - BULB, STOP LAMP | ||||
| 99132-11210 |
NCP90,ZSP91..STD |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-0D240 |
NCP90,ZSP91..STD |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-0D240 |
NCP90,ZSP91..STD |
1 | ||
| Common parts | ||||
| 90178-C0008 | ||||
