NCP90L-AHMGKC (2008)
Toyota Yaris (China)
Production
May 2008
-
Aug 2013
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

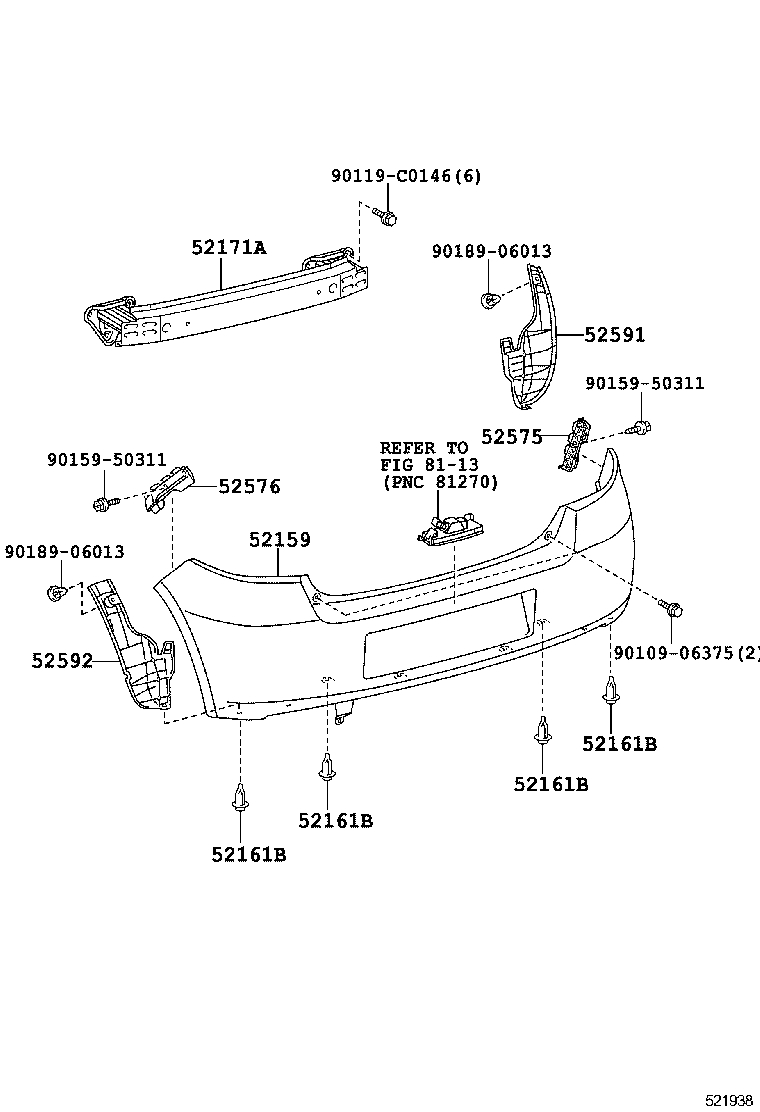

(0805-1008)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0D985 |
NCP90,ZSP91 PAINT REQ. |
1 | ||
| 52159-0D990 |
NCP90,ZSP91..STD PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP90,ZSP91..STD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP90,ZSP91..STD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP90,ZSP91..STD |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP90,ZSP91..STD |
4 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-0D050 |
NCP90,ZSP91 |
1 | ||
| 52023-0D070 |
NCP90,ZSP91 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0D080 |
NCP90,ZSP91..STD |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0D080 |
NCP90,ZSP91..STD |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0D090 |
NCP90,ZSP91..STD |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0D090 |
NCP90,ZSP91..STD |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-C0146 | ||||
| 90159-50311 | ||||
| 90189-06013 | ||||
| Linked diagrams | ||||
| 8113 | ||||

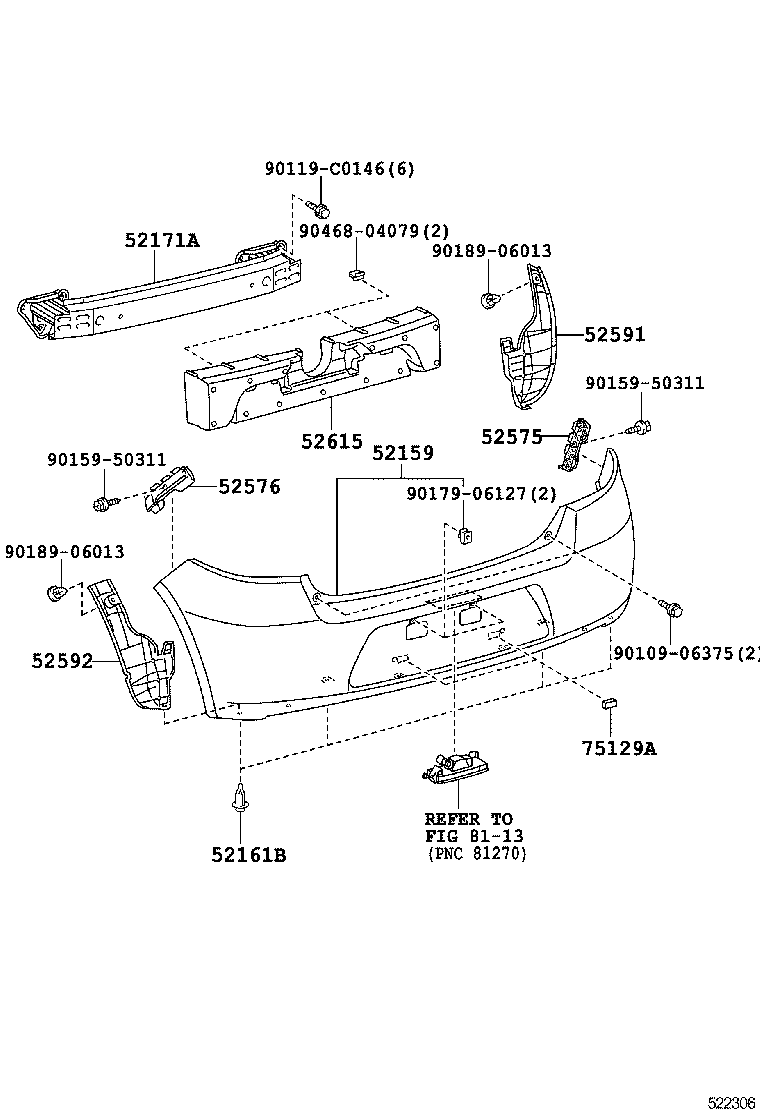

(1008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0D985 |
NCP90,ZSP91 PAINT REQ. |
1 | ||
| 52159-0D990 |
NCP90,ZSP91..STD PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP90,ZSP91..STD |
4 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-0D050 |
NCP90,ZSP91 |
1 | ||
| 52023-0D070 |
NCP90,ZSP91 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0D080 |
NCP90,ZSP91..STD |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0D080 |
NCP90,ZSP91..STD |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0D090 |
NCP90,ZSP91..STD |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0D090 |
NCP90,ZSP91..STD |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-0D030 |
NCP90,ZSP91..STD |
1 | ||
| 75129A - CUSHION, REAR LICENCE PLATE | ||||
| 75129-0D010 |
NCP90,ZSP91..STD |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-C0146 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-06013 | ||||
| 90468-04079 | ||||
| Linked diagrams | ||||
| 8113 | ||||
