NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
ILLUST NO. 2 OF 2(0601- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

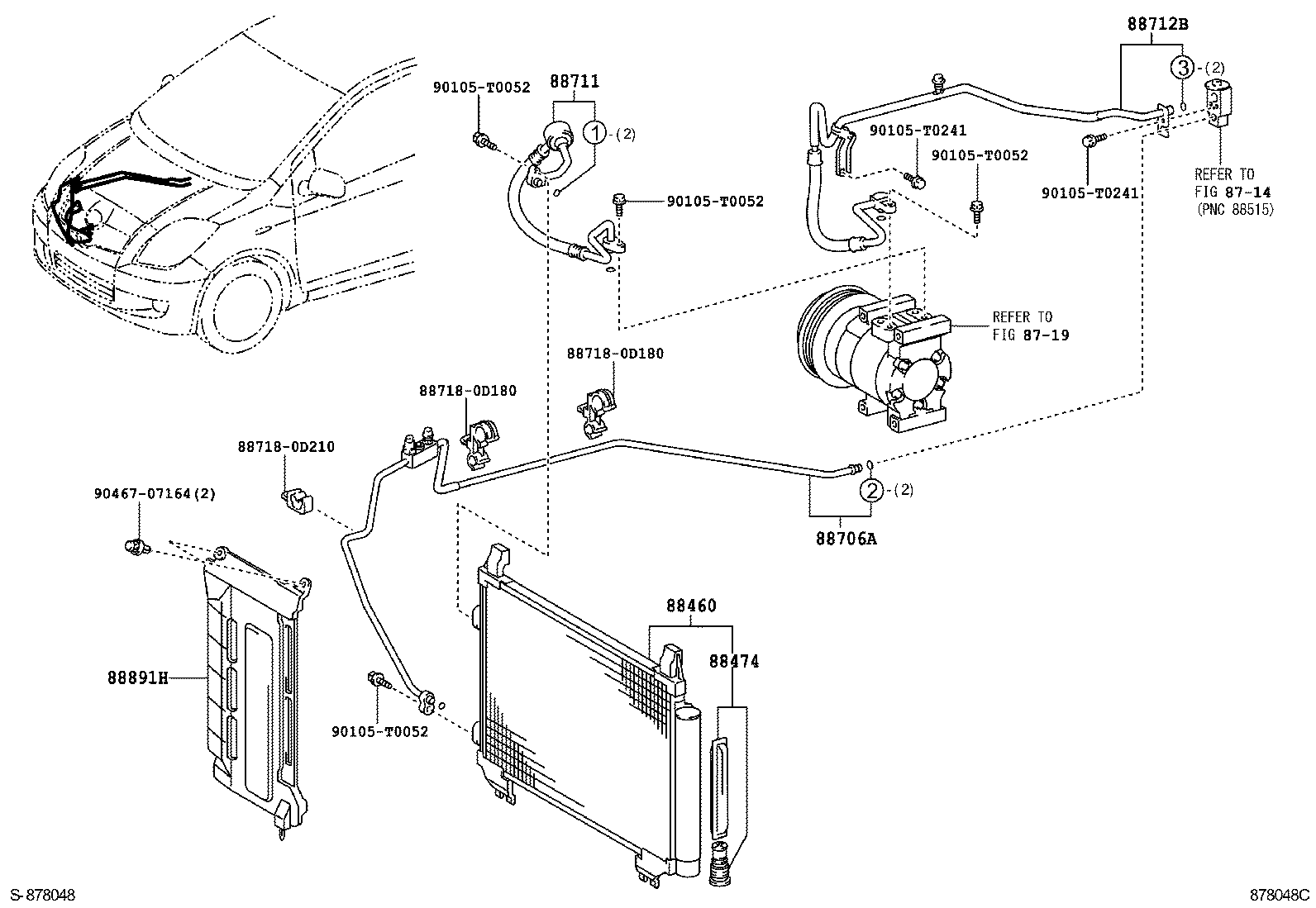

ILLUST NO. 1 OF 2(0601-0812)TH ; (0601-0901)IDN,PH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D070 |
NCP91..IDN,PH,TH |
1 | ||
| 88460-0D070 |
NCP91..(E,G)..TH SINGAPORE SPEC |
1 | ||
| 88460-0D070 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP91..(E,G)..TH SINGAPORE SPEC |
1 | ||
| 88474-17010 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0D220 |
NCP91..IDN,PH,TH |
1 | ||
| 88706-0D240 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D150 |
NCP91..IDN,PH,TH |
1 | ||
| 88711-0D150 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88704-0D050 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D190 |
NCP91..IDN,PH,TH |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-0D080 |
NCP91..(E,G)..TH SINGAPORE SPEC |
1 | ||
| 88891-0D080 |
NCP91..IDN,PH,TH |
1 | ||
| Common parts | ||||
| 88718-0D180 | ||||
| 88718-0D210 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90467-07164 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

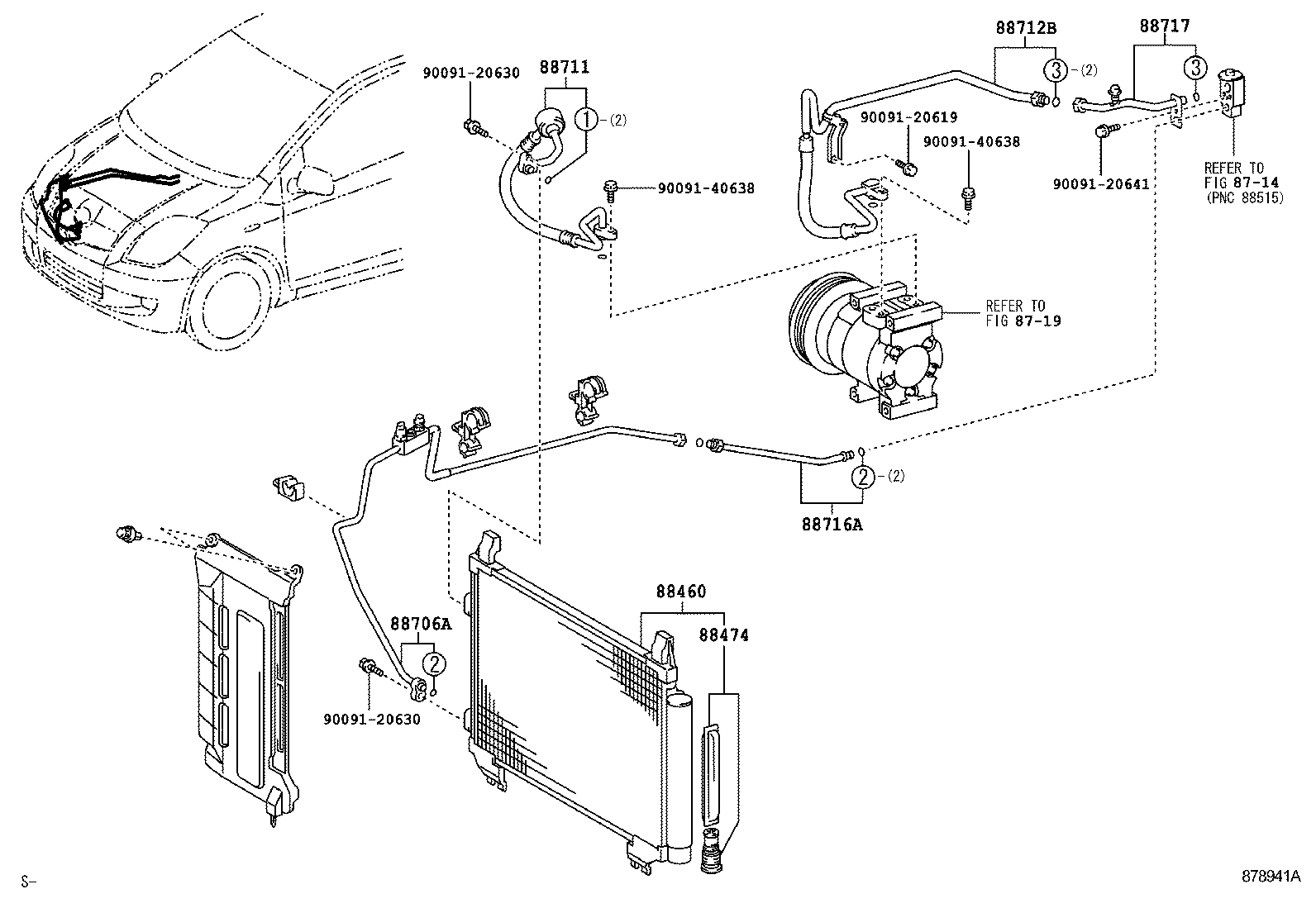

ILLUST NO. 1 OF 2(0601- )S..MA ; (0601- )E,G..MA,TH
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D070 |
NCP91..IDN,PH,TH |
1 | ||
| 88460-0D070 |
NCP91..(E,G)..TH SINGAPORE SPEC |
1 | ||
| 88460-0D070 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP91..(E,G)..TH SINGAPORE SPEC |
1 | ||
| 88474-17010 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0D220 |
NCP91..IDN,PH,TH |
1 | ||
| 88706-0D240 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D150 |
NCP91..IDN,PH,TH |
1 | ||
| 88711-0D150 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88704-0D050 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-0D190 |
NCP91..IDN,PH,TH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0D240 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-0D080 |
NCP91..(E,G)..TH SINGAPORE SPEC&FRONT AIR CONDITIONER-DEALER KIT |
1 | ||
| Common parts | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90091-20641 | ||||
| 90091-40638 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
