NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0903)IDN,MA,PH,TH ; (0611- )TAIW ; (0903- )J ; (0903- )E..IDN

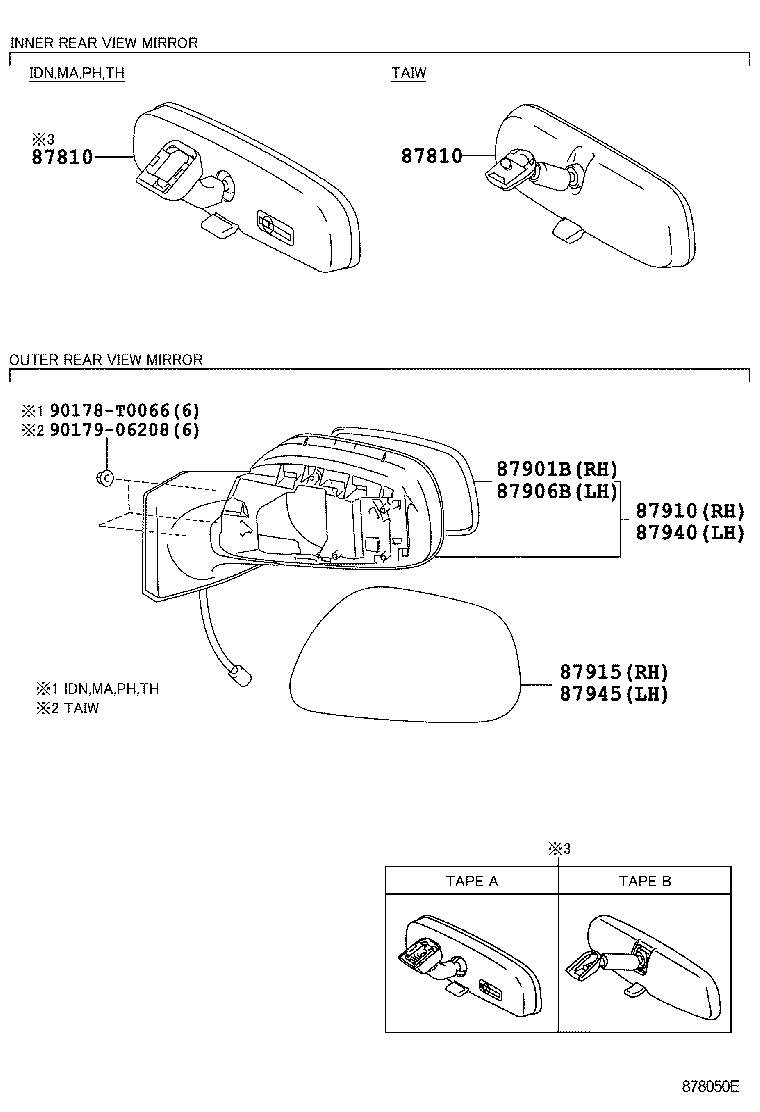

Click highlighted areas on diagram

diagram 87810 87810 87901B 87906B 87910 87915 87940 87945 90178T0066 9017906208
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

NCP91..IDN,MA,PH,TH

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

NCP91..IDN,MA,PH,TH

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-0D290

NCP91..IDN,MA,PH,TH

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-0D290

NCP91..IDN,MA,PH,TH

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0D300

NCP91..(G,S)..(IDN,TH)

NO PAINT REQ.

 1
87910-0D290

NCP91..S..MA;NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA)

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-0D903

NCP91..IDN,MA,PH,TH

PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0D290

NCP91..S..MA;NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA)

NO PAINT REQ.

 1
87940-0D300

NCP91..(G,S)..(IDN,TH)

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-0D903

NCP91..IDN,MA,PH,TH

PAINT REQ.

 1
Common parts
90178-T0066
90179-06208
