NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

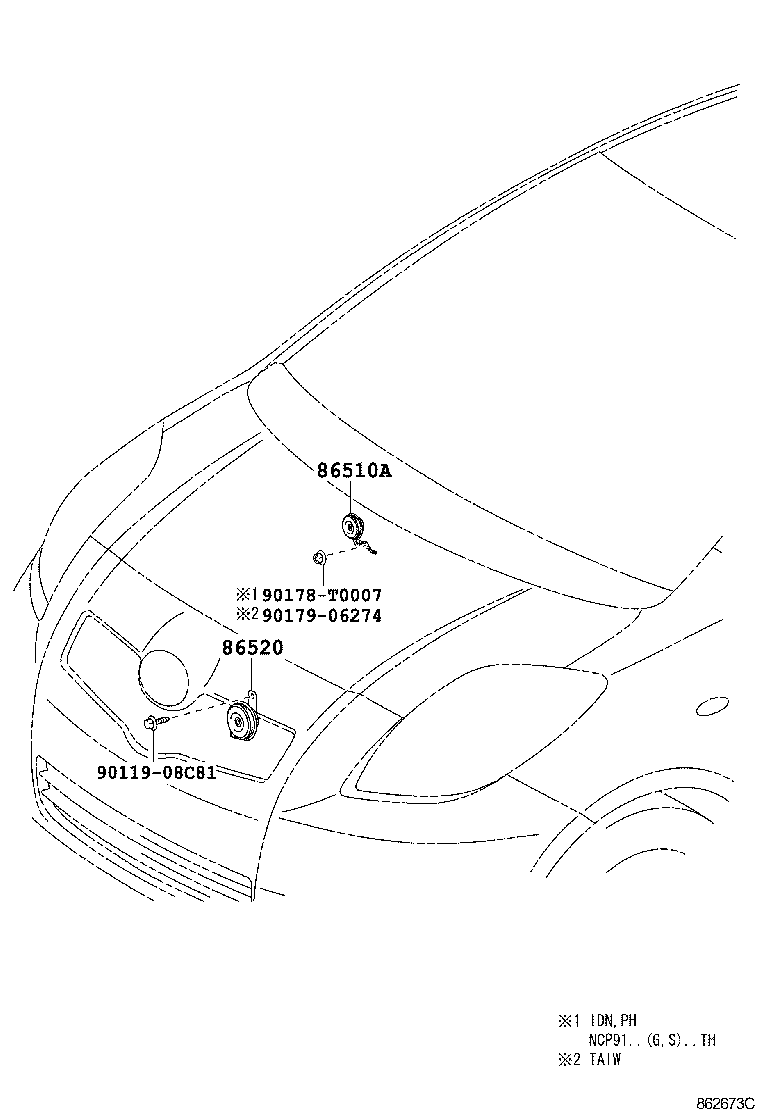

Click highlighted areas on diagram

diagram 86510A 86520 9011908C81 90178T0007 9017906274
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-0D020

NCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)

 1
86520 - HORN ASSY, LOW PITCHED
86520-0K010

NCP91..IDN,MA,PH,TH

 1
Common parts
90119-08C81
90178-T0007
90179-06274
