NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 8(0601- )RHD

Click highlighted areas on diagram

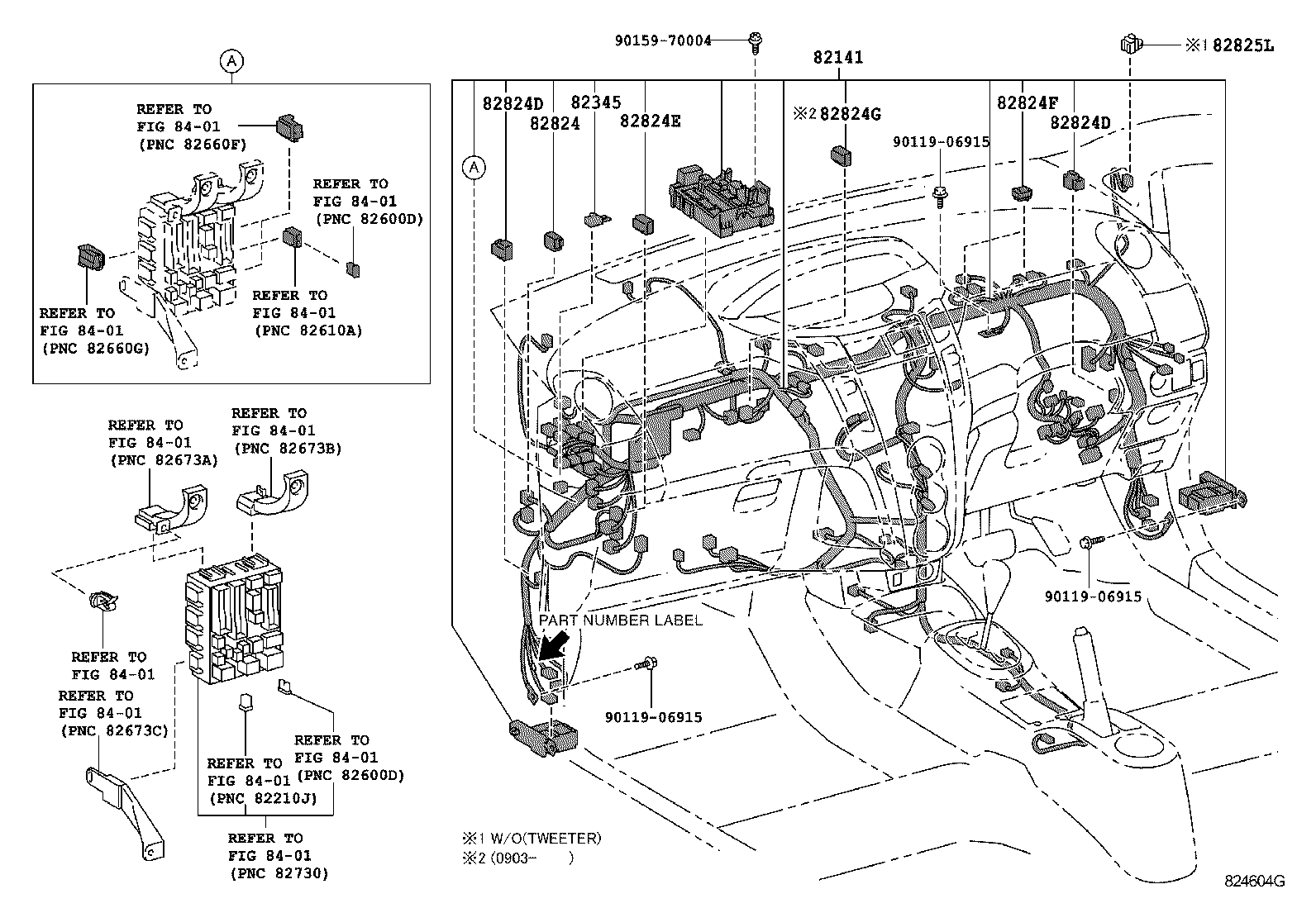

INSTRUMENT PANEL

diagram 82141 82345 82824 82824D 82824D 82824E 82824F 82824G 82825L 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9015970004
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-0DP40

NCP91..E..TH

 1
82141-0DP50

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
82141-0DP50

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

PART NUMBER LABEL=82141-0DP50 OR 82141-0DJ30

 1
82141-0DP40

NCP91..E..TH

PART NUMBER LABEL=82141-0DP40 OR 82141-0DJ20

 1
82345 - DIODE
82345-32010

NCP91..IDN,MA,PH,TH

 1
82824 - CONNECTOR, WIRING HARNESS
82824-22070

NCP91..IDN,MA,PH,TH

 1
82824D - CONNECTOR, WIRING HARNESS
82824-47210

NCP91..IDN,MA,PH,TH

 2
82824D - CONNECTOR, WIRING HARNESS
82824-47210

NCP91..IDN,MA,PH,TH

 2
82824E - CONNECTOR, WIRING HARNESS
82824-52280

NCP91..IDN,MA,PH,TH

 1
82824F - CONNECTOR, WIRING HARNESS
82824-52290

NCP91..IDN,MA,PH,TH

 2
Common parts
90119-06915
90159-70004
Linked diagrams
8401

ILLUST NO. 1 OF 8(0601- )RHD

Click highlighted areas on diagram

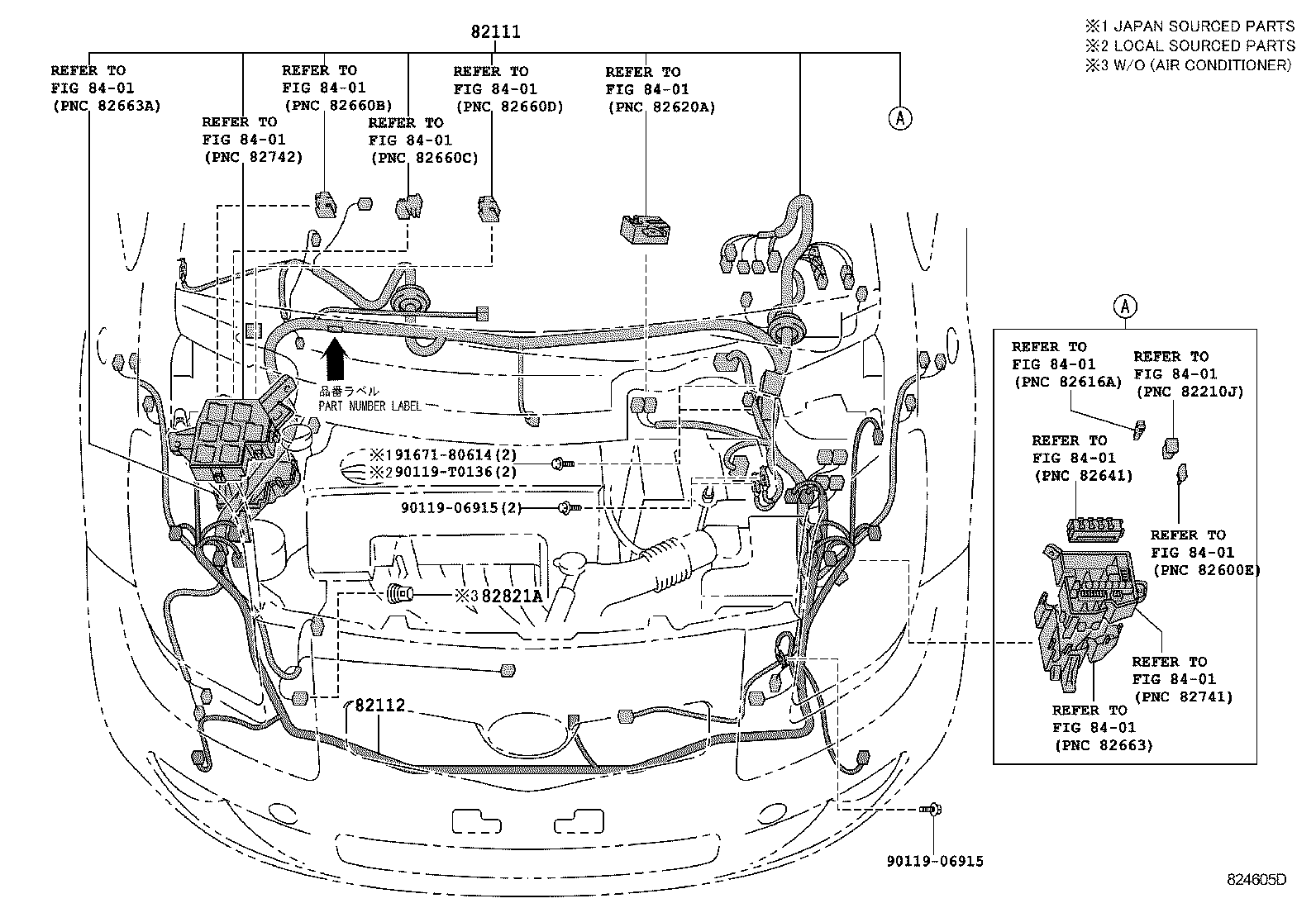

ENGINE ROOM

diagram 82111 82112 82821A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 90119T0136 9167180614
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0DE80

NCP91..E..TH

 1
82111-0DE90

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
82111-0DF00

NCP91..S..TH

S LIMITED(THAILAND)

 1
82111-0DF01

NCP91..S..TH

S LIMITED(THAILAND)

 1
82111-0DE91

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
82111-0DE81

NCP91..E..TH

 1
82111-0DE90

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

PART NUMBER LABEL=82111-0DE90

 1
82111-0DE81

NCP91..E..TH

PART NUMBER LABEL=82111-0DE81

 1
82111-0DF00

NCP91..S..TH

PART NUMBER LABEL=82111-0DE00

 1
82111-0DE91

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

PART NUMBER LABEL=82111-0DE91

 1
82111-0DE80

NCP91..E..TH

PART NUMBER LABEL=82111-0DE80

 1
82111-0DF01

NCP91..S..TH

PART NUMBER LABEL=82111-0DF01

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-0D060

NCP91..PH;NCP91..RHD..(G,S)

 1
82112-0D070

NCP91..S..TH

S LIMITED(THAILAND)

 1
82112-0D050

NCP91..RHD..(E,J)

 1
82821A - COVER, CONNECTOR
82821-10050

NCP91..(E,G)..TH

SINGAPORE SPEC

 1
Common parts
90119-06915
90119-T0136
91671-80614
Linked diagrams
8401

ILLUST NO. 2 OF 8(0601- )RHD

Click highlighted areas on diagram

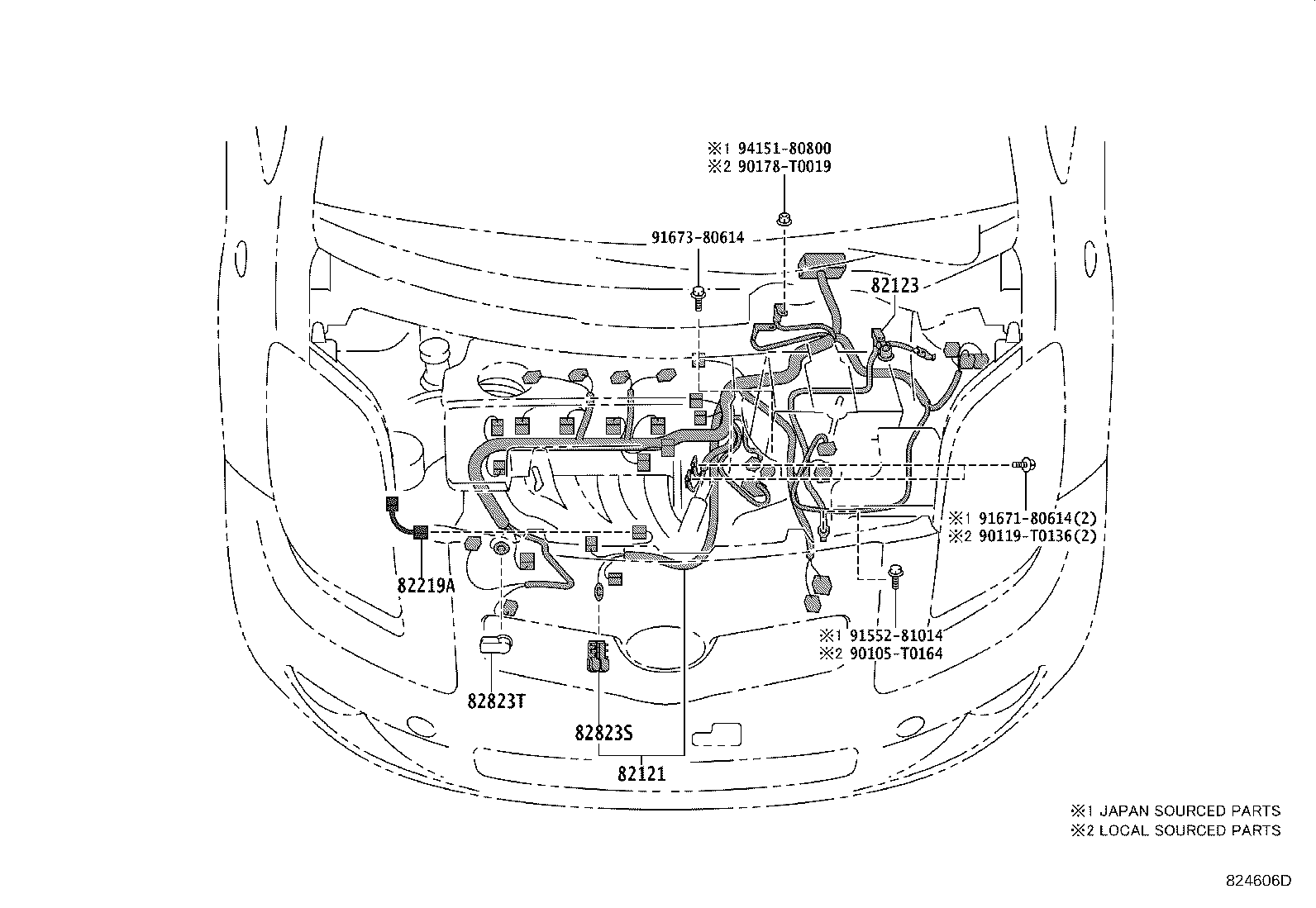

ENGINE

diagram 82121 82123 82219A 82823S 82823T 90105T0164 90119T0136 90178T0019 9155281014 9167180614 9167380614 9415180800
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0D700

NCP91..RHD..ATM..(E,G,S)

 1
82123 - WIRE, ENGINE, NO.3
82123-0D230

NCP91..ATM..(IDN,MA,PH,TH)

 1
82219A - WIRE, SENSOR
82219-0D120

NCP91..IDN,MA,PH,TH

 1
82219-52040

NCP91

 1
82823S - CAP, STARTER TERMINAL
82823-20080

NCP91..IDN,MA,PH,TH

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NCP91..IDN,MA,PH,TH

 1
Common parts
90105-T0164
90119-T0136
90178-T0019
91552-81014
91671-80614
91673-80614
94151-80800

ILLUST NO. 5 OF 8(0601- )

Click highlighted areas on diagram

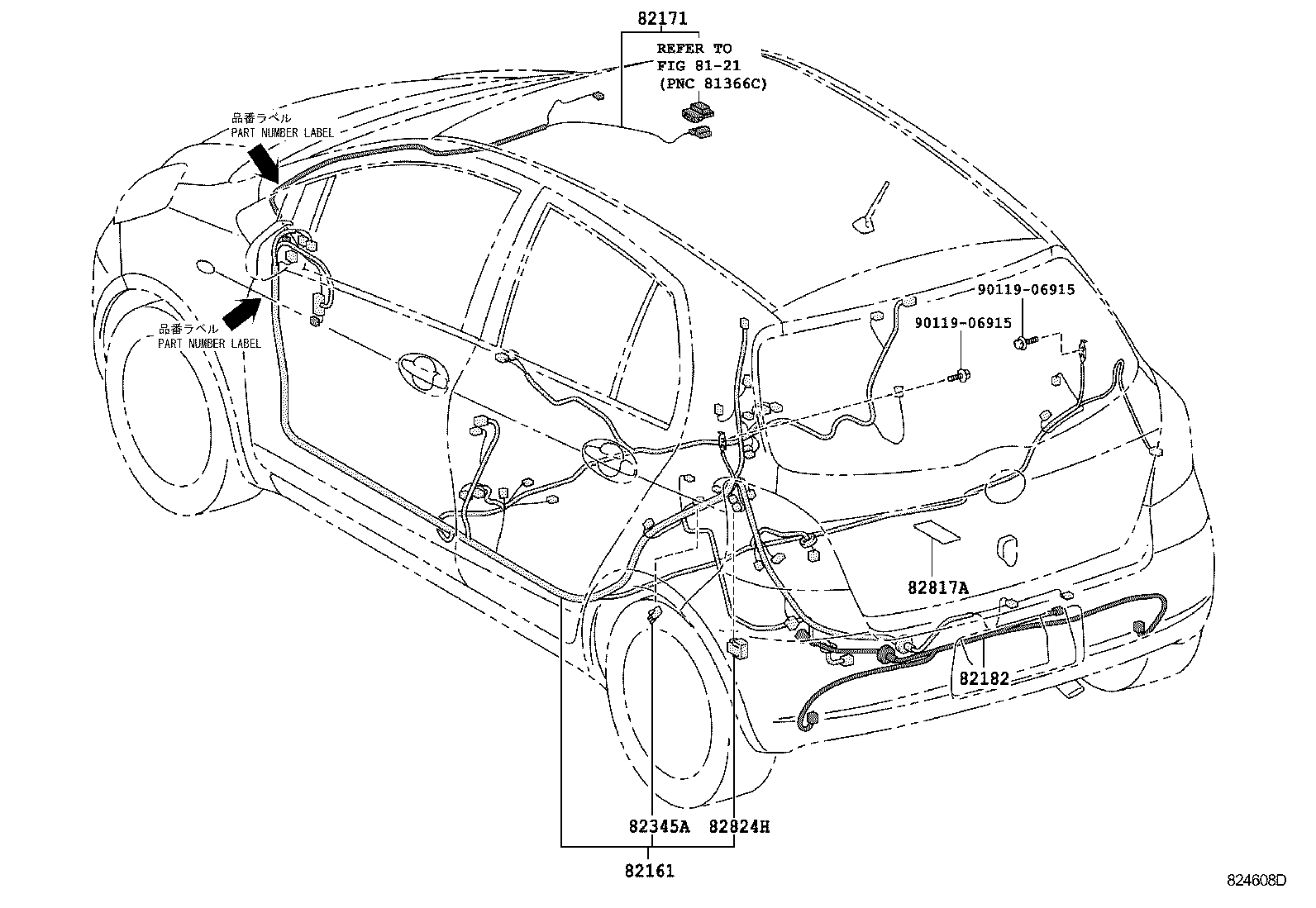

FLOOR & ROOF

diagram 8121 82161 82171 82182 82345A 82817A 82824H 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-0DA60

NCP91..MA;NCP91..E..TH

 1
82161-0DA70

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
82161-0DA61

NCP91..MA;NCP91..E..TH

 1
82161-0DA71

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
82161-0DA60

NCP91..MA;NCP91..E..TH

PART NUMBER LABEL=82161-0DA60

 1
82161-0DA70

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

PART NUMBER LABEL=82161-0DA70

 1
82161-0DA61

NCP91..MA;NCP91..E..TH

PART NUMBER LABEL=82161-0DA61

 1
82161-0DA71

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

PART NUMBER LABEL=82161-0DA71

 1
82171 - WIRE, ROOF, NO.1
82171-0D050

NCP91..IDN,MA,PH,TH

 1
82171-0D050

NCP91..IDN,MA,PH,TH

PART NUMBER LABEL=82171-0D050

 1
82345A - DIODE
82345-32010

NCP91..IDN,MA,PH,TH

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

NCP91..IDN,MA,PH,TH

 1
82824H - CONNECTOR, WIRING HARNESS
82824-44030

NCP91..IDN,MA,PH,TH

 1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 6 OF 8(0601- )RHD

Click highlighted areas on diagram

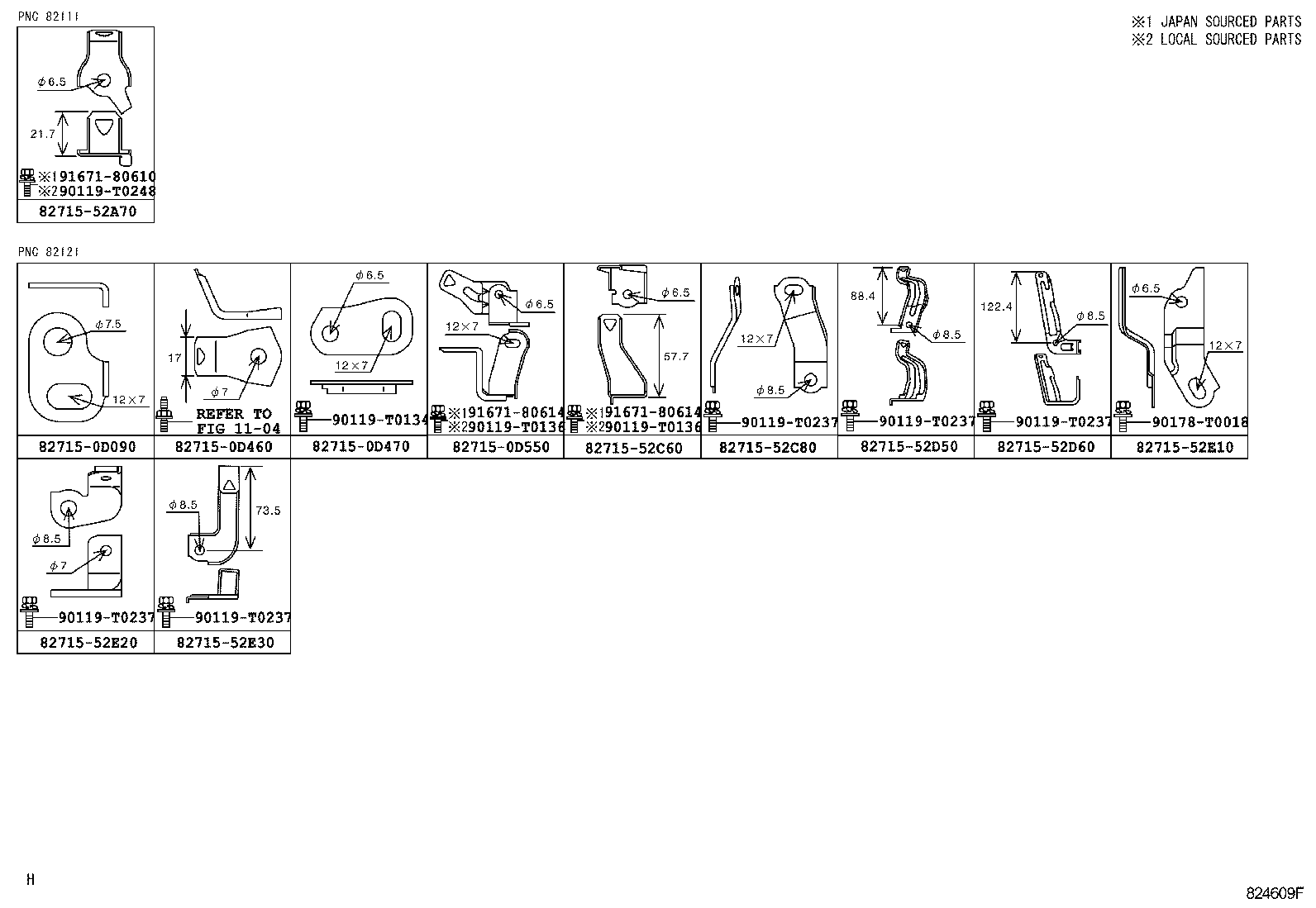

CLAMP & BRACKET

diagram 1104 827150D090 827150D460 827150D470 827150D550 8271552C60 8271552C80 8271552D50 8271552D60 8271552E10 8271552E20 8271552E30 90119T0134 90119T0136 90119T0136 90119T0237 90119T0237 90119T0237 90119T0237 90119T0237 90178T0018 9167180614 9167180614
Part # Description Qty Price
Common parts
82715-0D090
82715-0D460
82715-0D470
82715-0D550
82715-52C60
82715-52C80
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
90119-T0134
90119-T0136
90119-T0237
90178-T0018
91671-80614
Linked diagrams
1104

ILLUST NO. 4 OF 8(0601- )

Click highlighted areas on diagram

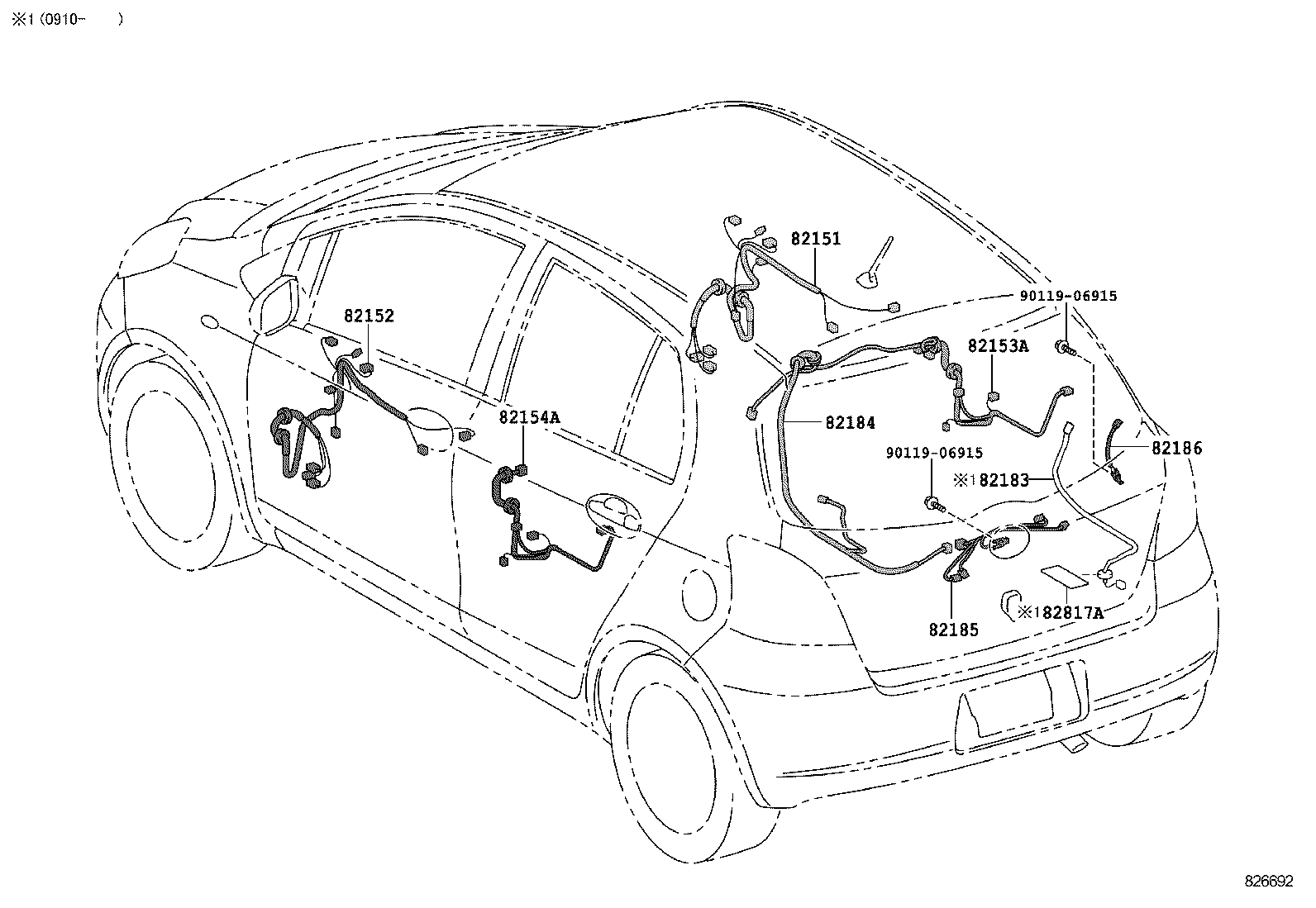

DOOR

diagram 82151 82152 82153A 82154A 82183 82184 82185 82186 82817A 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-0D720

NCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)

 1
82151-0D710

NCP91..MA;NCP91..(E,J)..TH

 1
82152 - WIRE, FRONT DOOR, LH
82152-0D740

NCP91..(E,J)..IDN;NCP91..(G,S)..(IDN,TH)

 1
82152-0D730

NCP91..MA;NCP91..(E,J)..TH

 1
82153A - WIRE, REAR DOOR, RH
82153-0D190

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
82153-0D180

NCP91..MA;NCP91..(E,J)..TH

 1
82154A - WIRE, REAR DOOR, LH
82153-0D180

NCP91..MA;NCP91..(E,J)..TH

 1
82153-0D190

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-0D060

NCP91..MA;NCP91..(E,J)..TH

 1
82184-0D070

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-0D120

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
82185-0D110

NCP91..MA;NCP91..(E,J)..TH

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D040

NCP91..IDN,MA,PH,TH

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

NCP91..IDN,MA,PH,TH

 1
Common parts
90119-06915

ILLUST NO. 8 OF 8(0601- )

Click highlighted areas on diagram

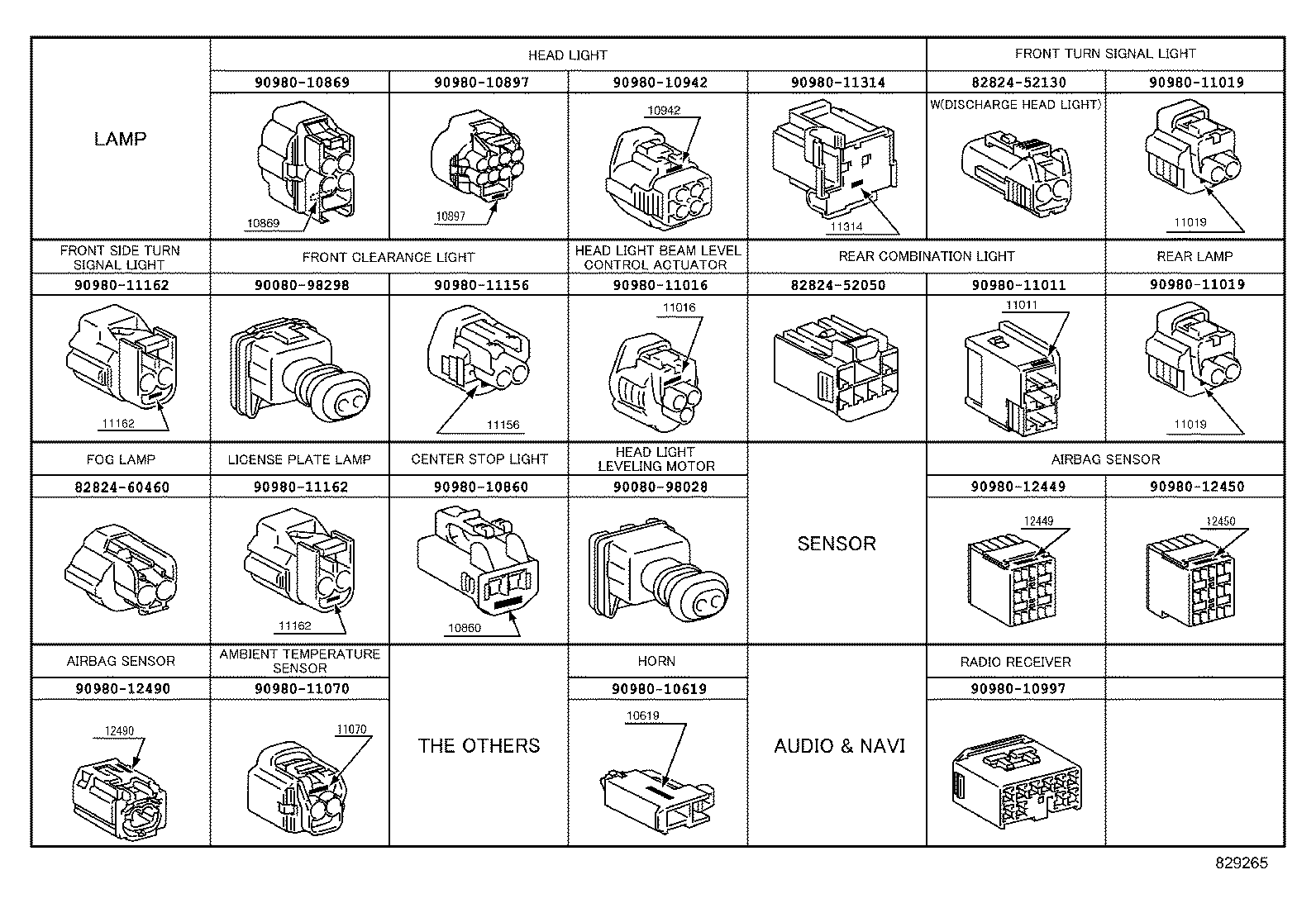

CONNECTOR

diagram 8282452050 8282452130 8282460460 9008098028 9008098298 9098010619 9098010860 9098010869 9098010897 9098010942 9098010997 9098011011 9098011016 9098011019 9098011019 9098011070 9098011156 9098011162 9098011162 9098011314 9098012449 9098012450 9098012490
Part # Description Qty Price
Common parts
82824-52050
82824-52130
82824-60460
90080-98028
90080-98298
90980-10619
90980-10860
90980-10869
90980-10897
90980-10942
90980-10997
90980-11011
90980-11016
90980-11019
90980-11070
90980-11156
90980-11162
90980-11314
90980-12449
90980-12450
90980-12490
