NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )MA,PH,TH ; (0601- )S..IDN,TAIW

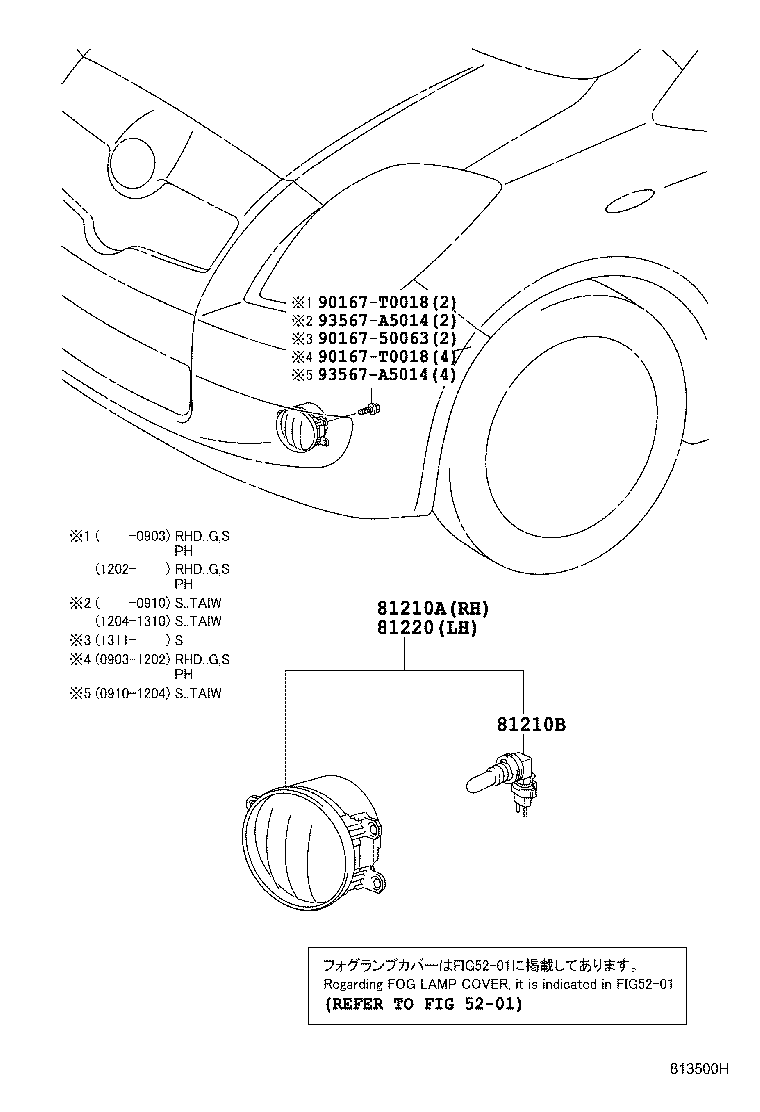

Click highlighted areas on diagram

diagram 81210A 81210B 81220 9016750063 90167T0018 90167T0018 93567A5014 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0D040

NCP91..G,S

 1
81210-0D041

NCP91..PH;NCP91..RHD..(G,S)

 1
81210B - BULB, FOG LAMP
90981-13075

NCP91..S..TAIW;NCP91..RHD..(G,S)

12V 55W,HALOGEN,PHILIPS

 2
90981-13081

NCP91..PH;NCP91..RHD..(G,S)

12V 55W,HALOGEN

 2
90981-13081

NCP91..S..TAIW;NCP91..RHD..(G,S)

12V 55W,HALOGEN,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-0D040

NCP91..G,S

 1
81220-0D041

NCP91..PH;NCP91..RHD..(G,S)

 1
Common parts
90167-50063
90167-T0018
93567-A5014
