NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0903)S..IDN ; (0601-0903)ATM..E,S..MA,TH ;(0601- )S..TAIW

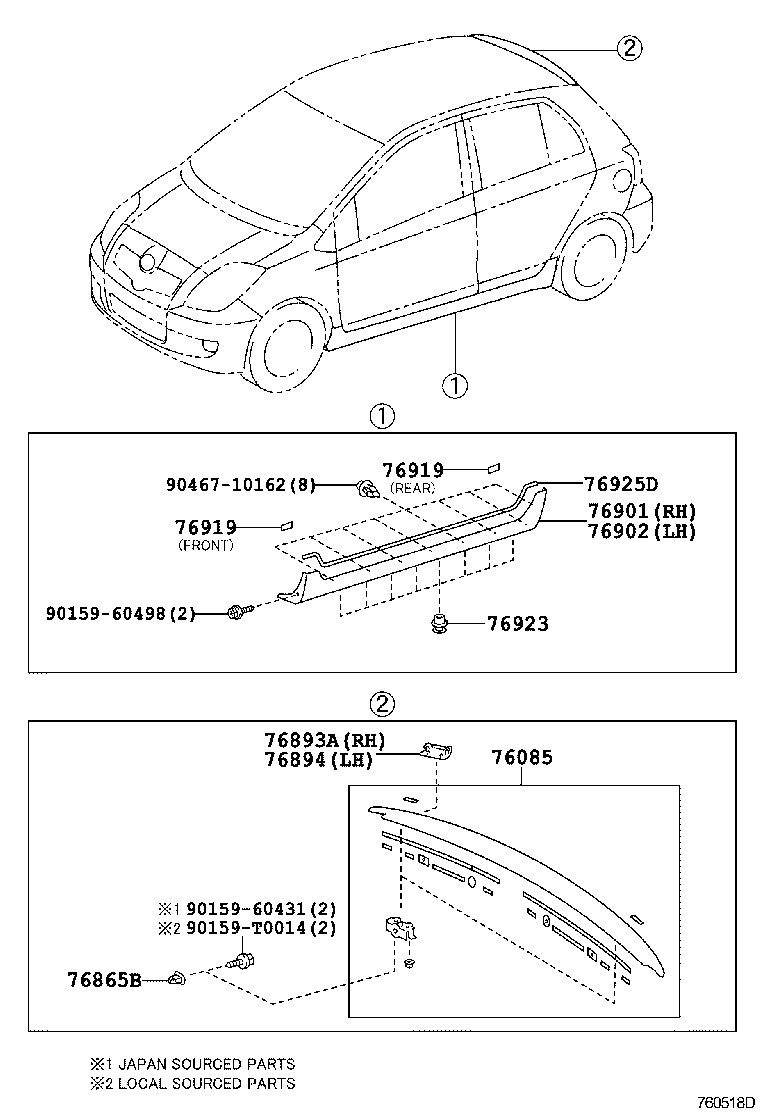

Click highlighted areas on diagram

diagram 76085 76865B 76893A 76894 76901 76902 76919 76919 76923 76925D 9015960431 9015960498 90159T0014 9046710162
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-0D901

NCP91..ATM..E..TH

PAINT REQ.,E LTD(THAI)

 1
76085-0D901

NCP91..ATM..S

PAINT REQ.

 1
76865B - RETAINER, REAR SPOILER
76865-0D010

NCP91..ATM..E..TH

E LTD(THAI)

 2
76865-0D010

NCP91..RHD..S

 2
76893A - COVER, REAR SPOILER, RH
76893-0D901

NCP91..ATM..E..TH

E LTD(THAI)

 1
76893-0D901

NCP91..RHD..S

 1
76894 - COVER, REAR SPOILER, LH
76894-0D901

NCP91..ATM..E..TH

E LTD(THAI)

 1
76894-0D901

NCP91..RHD..S

 1
Common parts
90159-60431
90159-60498
90159-T0014
90467-10162
