NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
(0601- )E,J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-0D060 |
NCP91..RHD..E |
1 | ||
| 71017-0D060 |
NCP91..RHD..E |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0D360C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71075-0D360C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0D700C0 |
NCP91..E..TH SINGAPORE SPEC,BLACK,TRIM1# |
1 | ||
| 71077-0D360C0 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71077-0D360C0 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71077-0D700C0 |
NCP91..E..TH SINGAPORE SPEC,BLACK,TRIM1# |
1 | ||
| 71077-0D410C0 |
NCP91..E..TH SINGAPORE SPEC,BLACK,TRIM1# |
1 | ||
| 71333 - LEG, REAR SEAT CUSHION, NO.1 | ||||
| 71333-0D010 |
NCP91..RHD..E |
1 | ||
| 71333-0D030 |
NCP91..(E,J)..(IDN,PH,TH) |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0D050 |
NCP91..RHD..E |
1 | ||
| 71503-0D050 |
NCP91..RHD..E |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-0D040 |
NCP91..RHD..E |
1 | ||
| 71651-0D040 |
NCP91..RHD..E |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52040B1 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71833-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71833-52060B1 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71833-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52040B1 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71834-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71834-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71834-52060B1 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52030 |
NCP91..(E,J)..(IDN,PH,TH) |
2 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52030 |
NCP91..(E,J)..(IDN,PH,TH) |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52140B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875-52100B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71875-0D070B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71875-0D100B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52100B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71876-0D090B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-52120B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-0D070B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D181C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D250C0 |
NCP91..RHD..E BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D181C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D250C0 |
NCP91..RHD..E BLACK,TRIM1# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52020B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 72057-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72057-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 72057-52010B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0D020B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 72615-52070B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02020 |
NCP91..(E,J)..(IDN,PH,TH) |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52020 |
NCP91..RHD..E |
1 | ||
| 72704-52020 |
NCP91..RHD..E |
1 | ||
| 72704-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72704-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79232-0D010 |
NCP91..RHD..E |
1 | ||
| 79232-0D010 |
NCP91..RHD..E |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90105-10544 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 90949-01C02 | ||||
| 91552-81020 | ||||
| 93560-54014 | ||||

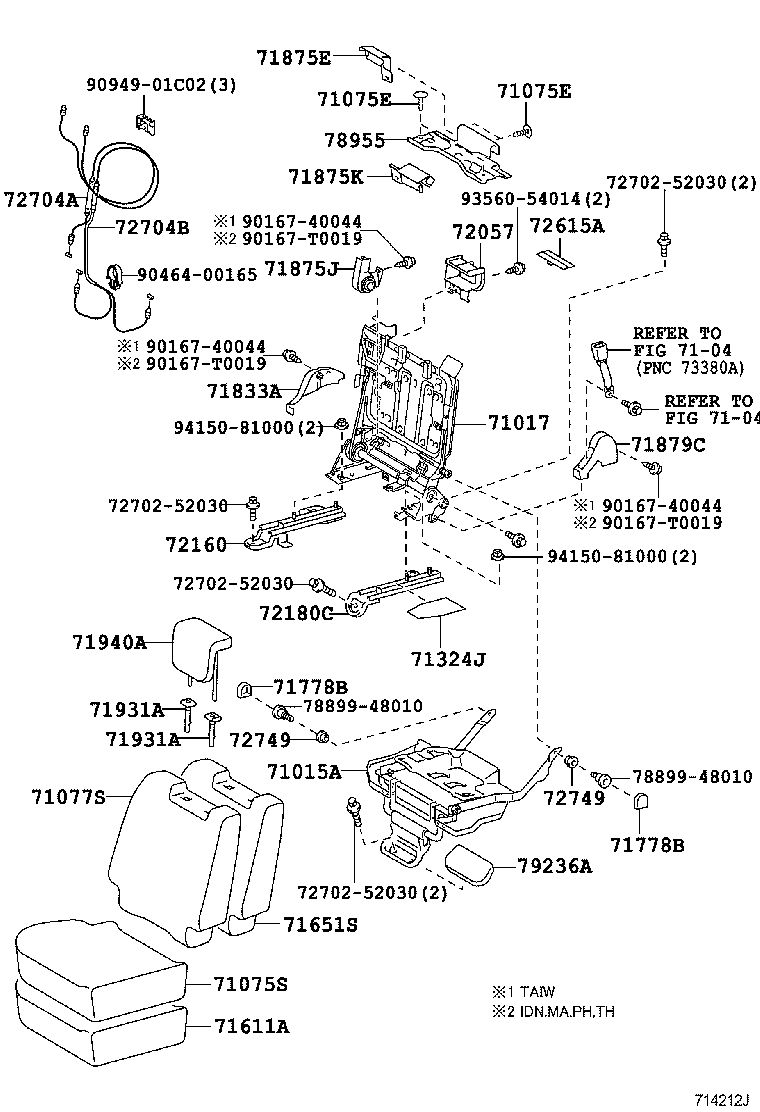

(0601- )G,S
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71015-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71017-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0D350C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71075-0D350C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0D690C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71077-0D350C0 |
NCP91..S BLACK,TRIM1# |
1 | ||
| 71077-0D690C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 71324-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71324-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71611-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71651-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-0D020 |
NCP91..RHD..(G,S) |
3 | ||
| 71778-52010 |
NCP91..RHD..(G,S) |
3 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-0D020 |
NCP91..RHD..(G,S) |
3 | ||
| 71778-52010 |
NCP91..RHD..(G,S) |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52040B1 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71833-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71833-52060B1 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71833-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52130B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875-0D090B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0D080B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875-52120B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875K - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-52140B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-0D080B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0D030B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71879-52090B2 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D181C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D250C0 |
NCP91..RHD..E BLACK,TRIM1# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52020B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 72057-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72057-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 72057-52010B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-52020 |
NCP91..RHD..(G,S) |
1 | ||
| 72160-52020 |
NCP91..RHD..(G,S) |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72160-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0D020B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 72615-52070B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52020 |
NCP91..RHD..E |
1 | ||
| 72704-52020 |
NCP91..RHD..E |
1 | ||
| 72704-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72704-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52050 |
NCP91..RHD..(G,S) |
1 | ||
| 72704-52050 |
NCP91..RHD..(G,S) |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-52010B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 78955-0D030B0 |
NCP91..RHD..(G,S) GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-0D030C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
2 | ||
| 79236-52020C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0601- )G,S
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71016-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71018-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0D030C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71076-0D030C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0D080C0 |
NCP91..S BLACK,TRIM1# |
1 | ||
| 71078-0D300C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71078-0D300C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71612-0D010 |
NCP91..RHD..(G,S) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71652-0D030 |
NCP91..RHD..(G,S) |
1 | ||
| 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-0D020 |
NCP91..RHD..(G,S) |
3 | ||
| 71778-52010 |
NCP91..RHD..(G,S) |
3 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-52040B1 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71834-0D050B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71834-0D040B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71834-52060B1 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52140B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875-52100B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71875-0D070B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71875-0D100B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52100B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71876-0D090B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-52120B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-0D070B0 |
NCP91..RHD..E DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0D100B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71876-52130B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0D030B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71878-52070B2 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
NCP91..RHD..E W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
NCP91..RHD..E W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
NCP91..RHD..(G,S) W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0D181C1 |
NCP91..RHD..E BLACK,TRIM1# |
1 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D210C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71940-0D250C0 |
NCP91..RHD..E BLACK,TRIM1# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-52010B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72058-0D030B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72170-52030 |
NCP91..RHD..(G,S) |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72170-52020 |
NCP91..RHD..(G,S) |
1 | ||
| 72170-52020 |
NCP91..RHD..(G,S) |
1 | ||
| 72616B - COVER, REAR SEAT LOCK STRIKER | ||||
| 72615-0D020B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72615-52070B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52040 |
NCP91..RHD..(G,S) |
1 | ||
| 72704-52040 |
NCP91..RHD..(G,S) |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-52060 |
NCP91..RHD..(G,S) |
1 | ||
| 72704-52060 |
NCP91..RHD..(G,S) |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 72749-48010 |
NCP91..RHD..(G,S) |
3 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-0D040B0 |
NCP91..RHD..(G,S) GRAY,TRIM1# |
1 | ||
| 78955-52020B0 |
NCP91..RHD..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-0D030C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
2 | ||
| 79236-52020C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
2 | ||
| 79246A - COVER, NO.2 SEAT LEG, NO.2 | ||||
| 79246-52020C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
1 | ||
| 79246-0D030C0 |
NCP91..RHD..(G,S) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
