NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
(0601-0701)RHD

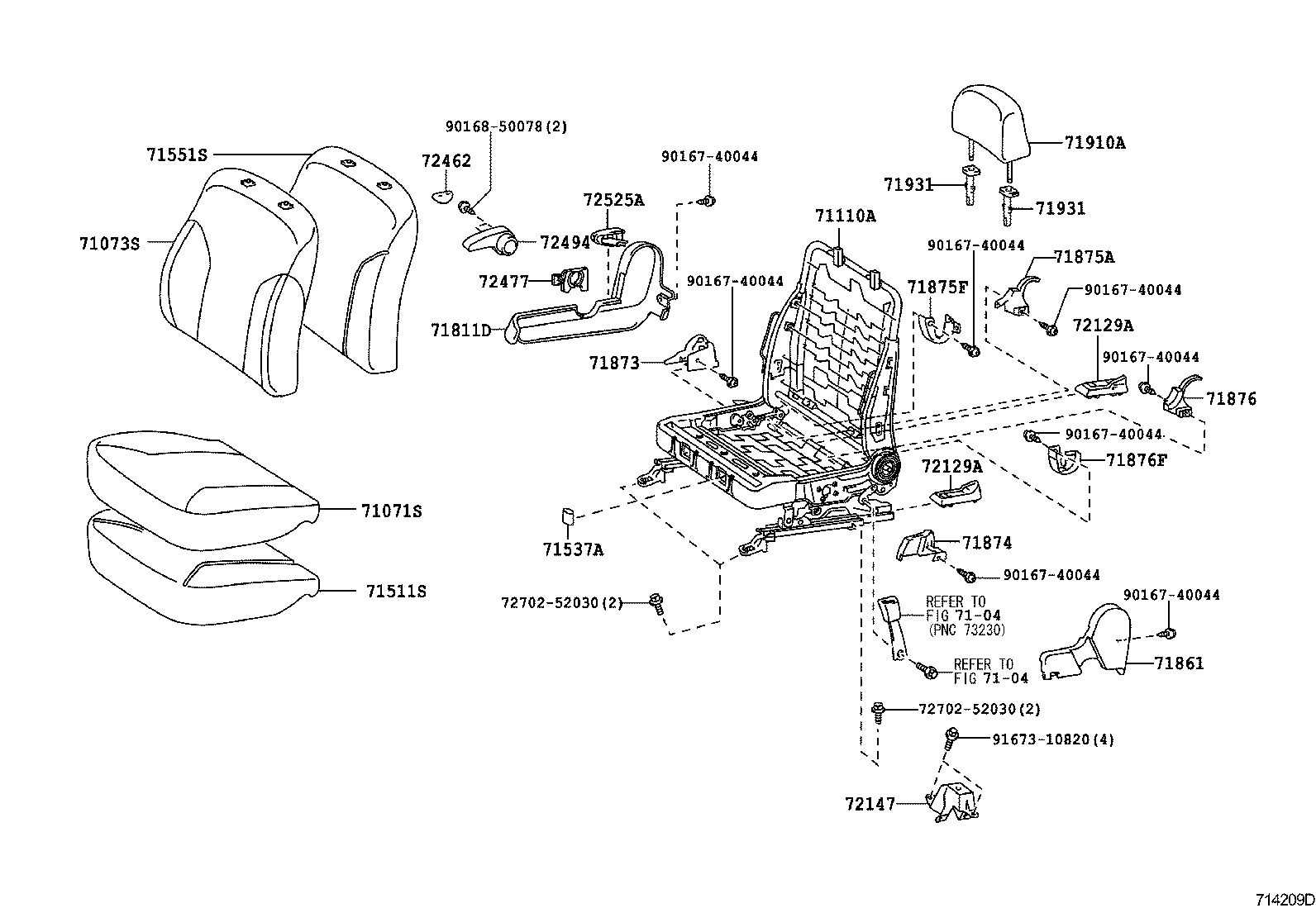

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0D360C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71071-0D580C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71071-0D560C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71071-0D380C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0D450C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71073-0D750C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71073-0D470C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074-0D260C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-0D010 |
NCP91..RHD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0D030 |
NCP91..RHD |
1 | ||
| 71511-0D120 |
NCP91..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP91..RHD |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D170 |
NCP91..S..MA;NCP91..(G,S)..(IDN,TH) |
1 | ||
| 71552-0D050 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) |
1 | ||
| 71551-0D070 |
NCP91..RHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-0D110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52200B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71861-0D080B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06370 |
NCP91..RHD |
1 | ||
| 71875-52170B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876-06400 |
NCP91..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91..RHD |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91..RHD |
4 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D030 |
NCP91..RHD |
1 | ||
| 72147-0D020 |
NCP91..RHD..(G,S) |
1 | ||
| 72147-0D030 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72462-0D040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
NCP91..RHD |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-0D040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72494-52020B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525-0D090B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0601-0701)RHD

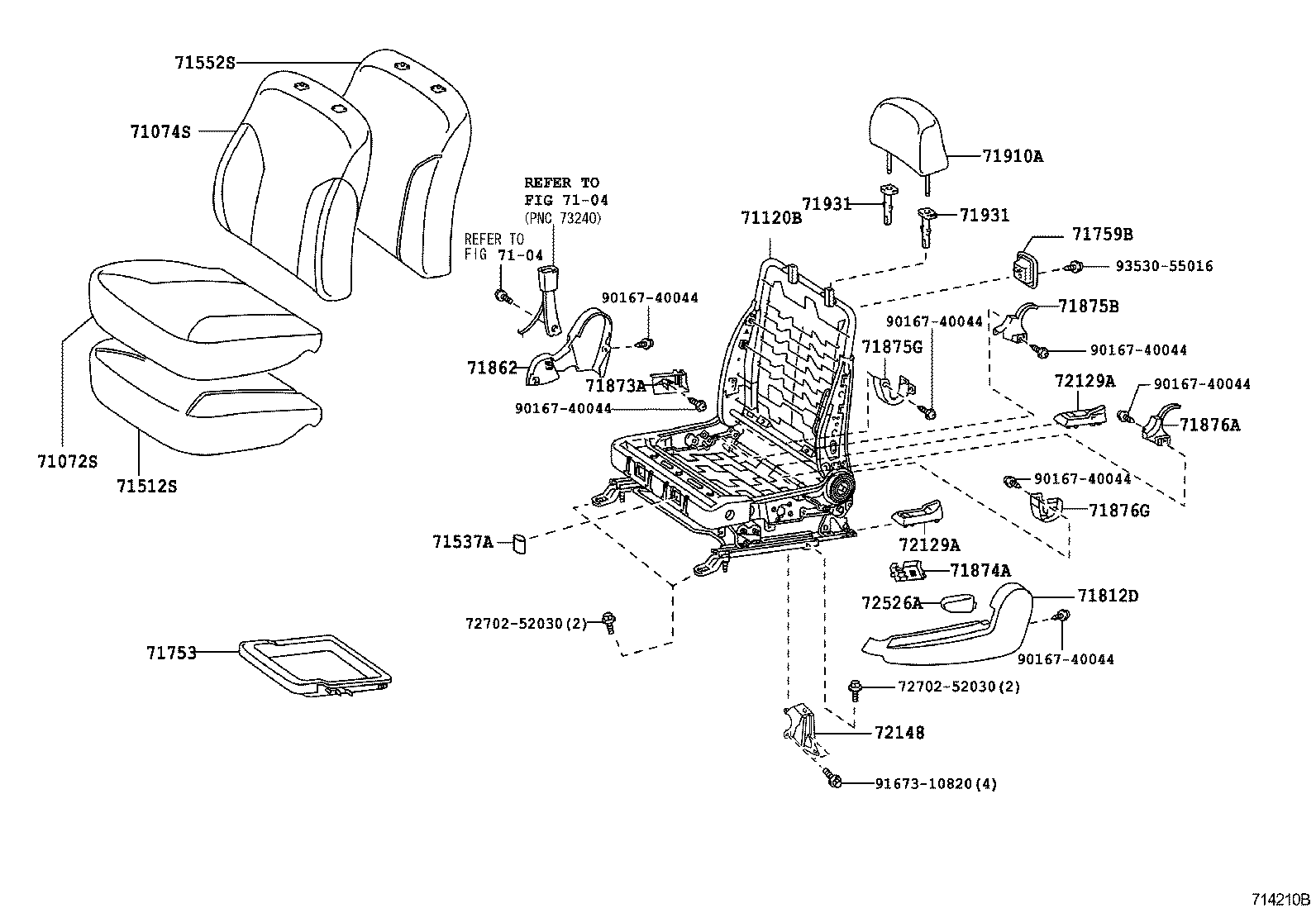

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0D350C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71072-0D570C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71072-0D550C0 |
NCP91..RHD..(E,J) BLACK,TRIM1# |
1 | ||
| 71072-0D370C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0D200C0 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71074-0D420C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71074-0D440C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074-0D220C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-0D010 |
NCP91..RHD..E |
1 | ||
| 71120-0D020 |
NCP91..RHD..(G,S) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D090 |
NCP91..RHD |
1 | ||
| 71512-0D010 |
NCP91..RHD |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP91..RHD |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D030 |
NCP91..RHD |
1 | ||
| 71552-0D120 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) |
1 | ||
| 71552-0D130 |
NCP91..S..MA;NCP91..(G,S)..(IDN,TH) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D080B0 |
NCP91..E..TAIW;NCP91..ATM..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-13020B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71759-13020B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-0D110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862-0D080B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52070B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52100B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06370 |
NCP91..RHD..(E,G,S) |
1 | ||
| 71875-52170B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876-06400 |
NCP91..RHD..(E,G,S) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91..RHD |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
NCP91..RHD |
4 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D030 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 72148-0D030 |
NCP91..RHD |
1 | ||
| 72148-0D020 |
NCP91..RHD..(G,S) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D100B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 93530-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0701- )RHD

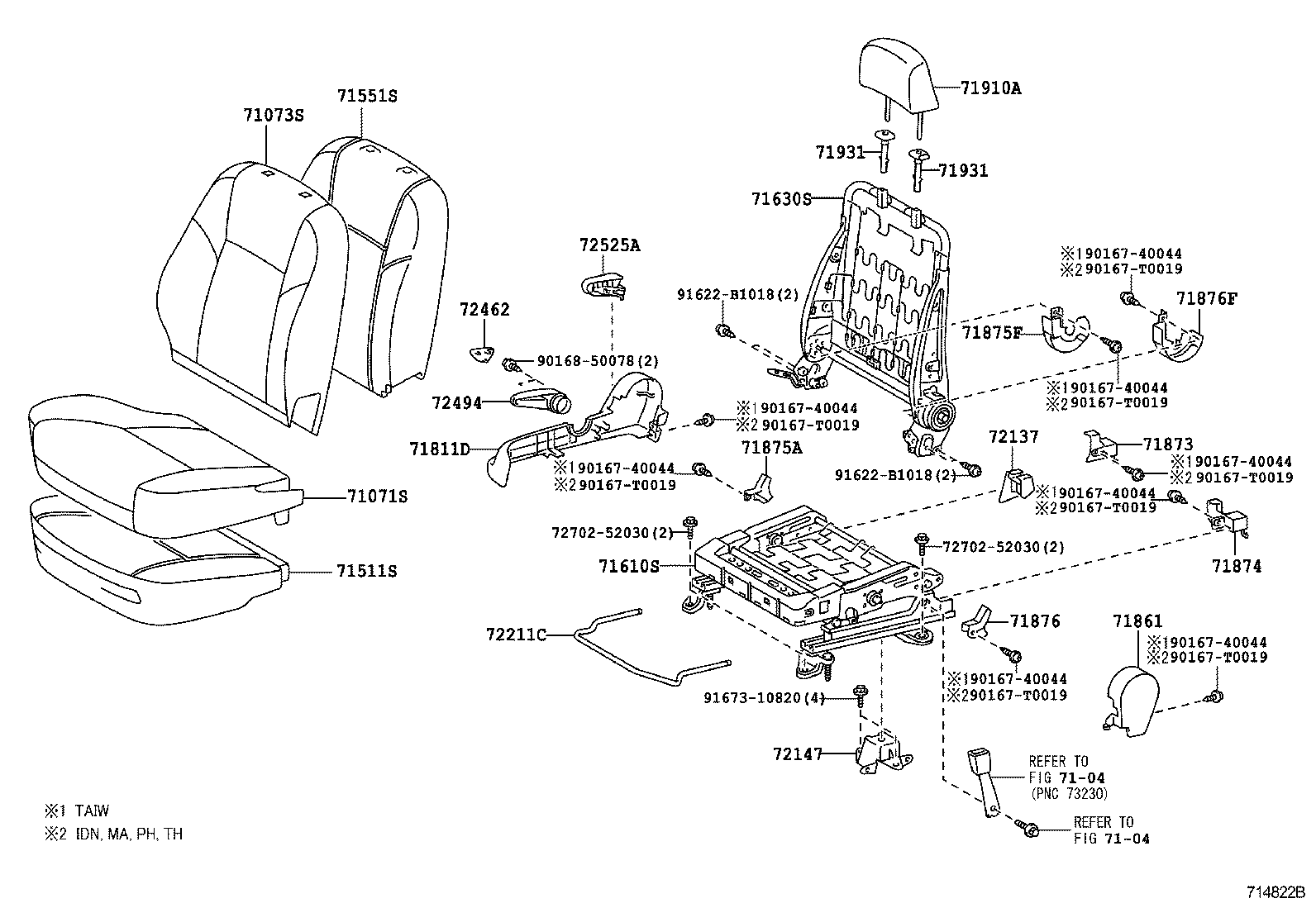

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0D360C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71071-0D580C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71071-0D560C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71071-0D380C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0D450C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71073-0D750C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71073-0D470C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074-0D260C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0D030 |
NCP91..RHD |
1 | ||
| 71511-0D120 |
NCP91..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D170 |
NCP91..S..MA;NCP91..(G,S)..(IDN,TH) |
1 | ||
| 71552-0D050 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) |
1 | ||
| 71551-0D070 |
NCP91..RHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0D080 |
NCP91..RHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0D170 |
NCP91..RHD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-0D110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52200B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71861-0D080B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06370 |
NCP91..RHD |
1 | ||
| 71875-52170B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876-06400 |
NCP91..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D070B0 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) DK.GRAY,TRIM1# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D030 |
NCP91..RHD |
1 | ||
| 72147-0D020 |
NCP91..RHD..(G,S) |
1 | ||
| 72147-0D030 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D040 |
NCP91..RHD..(E,G,S) |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72462-0D040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-0D040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72494-52020B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525-0D090B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0701- )RHD
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0D350C1 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71072-0D570C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71072-0D550C0 |
NCP91..RHD..(E,J) BLACK,TRIM1# |
1 | ||
| 71072-0D370C1 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0D200C0 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71074-0D420C0 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) BLACK,TRIM1# |
1 | ||
| 71074-0D440C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71074-0D220C0 |
NCP91..RHD..S BLACK,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D090 |
NCP91..RHD |
1 | ||
| 71512-0D010 |
NCP91..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D030 |
NCP91..RHD |
1 | ||
| 71552-0D120 |
NCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA) |
1 | ||
| 71552-0D130 |
NCP91..S..MA;NCP91..(G,S)..(IDN,TH) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0D090 |
NCP91..RHD..(G,S) |
1 | ||
| 71620-0D070 |
NCP91..RHD..(E,J) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0D140 |
NCP91..RHD |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D080B0 |
NCP91..E..TAIW;NCP91..ATM..(G,S) DK.GRAY,TRIM1# |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-13020B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71759-13020B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-0D110B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862-0D080B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52070B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52100B2 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874-0D070B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06370 |
NCP91..RHD..(E,G,S) |
1 | ||
| 71875-52170B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| 71876-06400 |
NCP91..RHD..(E,G,S) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71910-0D400C2 |
NCP91..E..TH;NCP91..(E,G)..(IDN,MA) BLACK,TRIM1# |
2 | ||
| 71910-0D430C0 |
NCP91..RHD..S BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NCP91..RHD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP91..RHD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D050B0 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) DK.GRAY,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D030 |
NCP91..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 72148-0D030 |
NCP91..RHD |
1 | ||
| 72148-0D020 |
NCP91..RHD..(G,S) |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D040 |
NCP91..RHD..(E,G,S) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D100B0 |
NCP91..RHD..(E,G,S) DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NCP91..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 91622-B1018 | ||||
| 91673-10820 | ||||
| 93530-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
