NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

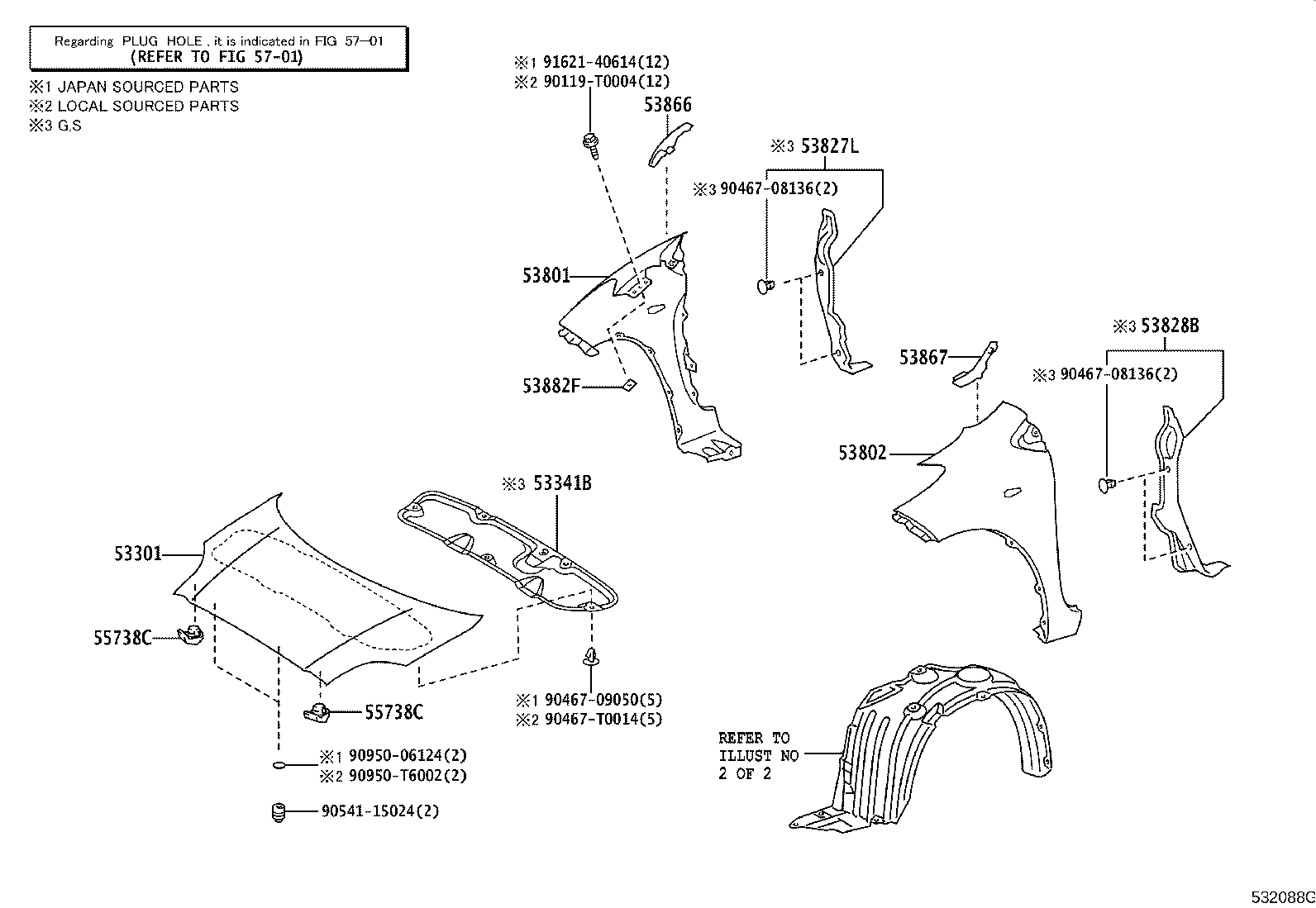

ILLUST NO. 1 OF 2(0601-0903)IDN,MA,PH,TH ; (0611-0910)TAIW

Click highlighted areas on diagram

diagram 53301 53341B 53801 53802 53827L 53828B 53866 53867 53882F 55738C 55738C 5701 90119T0004 9046708136 9046708136 9046709050 90467T0014 9054115024 9095006124 90950T6002 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0D090

NCP91..ATM;NCP91..MTM..(E,J)

 1
53341B - INSULATOR, HOOD
53341-0D060

NCP91..RHD..(G,S)

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-52210

NCP91..ATM;NCP91..MTM..(E,J)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-52210

NCP91..ATM;NCP91..MTM..(E,J)

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D030

NCP91..RHD..(G,S)

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D030

NCP91..RHD..(G,S)

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0D040

NCP91..IDN,MA,PH,TH

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0D040

NCP91..IDN,MA,PH,TH

 1
53882F - SEAL, FRONT FENDER
53882-16030

NCP91

(J)

 8
53882-0D010

NCP91

(L)

 8
53882-0D010

NCP91

(L)

 6
55738C - STOPPER, HOOD, RH
55738-0D040

NCP91..IDN,MA,PH,TH

(L)

 2
55738-52050

NCP91..IDN,MA,PH,TH

(J)

 2
55738C - STOPPER, HOOD, RH
55738-0D040

NCP91..IDN,MA,PH,TH

(L)

 2
55738-52050

NCP91..IDN,MA,PH,TH

(J)

 2
Common parts
90119-T0004
90467-08136
90467-09050
90467-T0014
90541-15024
90950-06124
90950-T6002
91621-40614
Linked diagrams
5701

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

diagram 5102 5102 53875A 53875C 53875D 53875P 53876A 9018906013 9018906230 9046707166
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-0D050

NCP91..IDN,MA,PH,TH

 1
53875-0D051

NCP91..IDN,MA,PH,TH

 1
53875C - CLIP, FRONT FENDER LINER
90467-05114

NCP91..ATM;NCP91..MTM..(E,J)

 2
53875D - CLIP, FRONT FENDER LINER, NO.2
90467-05128

NCP91..ATM;NCP91..MTM..(E,J)

 2
53875P - SCREW, NO.1
90159-60590

NCP91..ATM;NCP91..MTM..(E,J)

 2
53876A - LINER, FRONT FENDER, LH
53876-0D051

NCP91..IDN,MA,PH,TH

 1
53876-0D050

NCP91..IDN,MA,PH,TH

 1
Common parts
90189-06013
90189-06230
90467-07166
Linked diagrams
5102
