NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0903)IDN,MA,PH,TH ; (0601-0910)TAIW

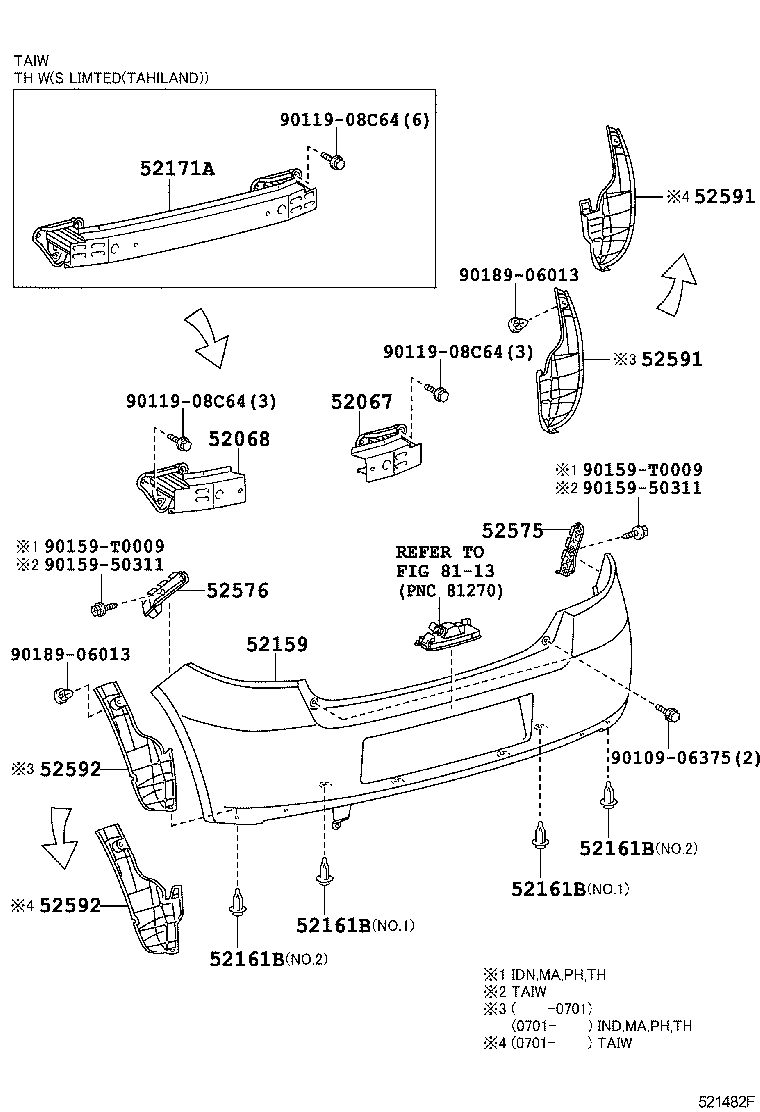

Click highlighted areas on diagram

diagram 52067 52068 52159 52161B 52161B 52161B 52161B 52171A 52575 52576 52591 52591 52592 52592 8113 9010906375 9011908C64 9011908C64 9011908C64 9015950311 9015950311 90159T0009 90159T0009 9018906013 9018906013
Part # Description Qty Price
52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH
52067-0D010

NCP91..IDN,MA,PH,TH

 1
52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH
52068-0D010

NCP91..IDN,MA,PH,TH

 1
52159 - COVER, REAR BUMPER
52159-0D978

NCP91..RHD..S

PAINT REQ.

 1
52159-0D978

NCP91..ATM..E..TH

PAINT REQ.,E LTD(THAI)

 1
52159-0D977

NCP91..(E,G,J)..(IDN,MA,PH,TH)

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-20010

NCP91..RHD..S

NO.2

 2
52161-0K040

NCP91..ATM..E..TH

E LTD(THAI),NO.1

 2
52161-0K040

NCP91..(E,G,J)..(IDN,MA,PH,TH)

NO.1 & NO.2

 4
52161-20010

NCP91..ATM..E..TH

E LTD(THAI),NO.2

 2
52161-0K040

NCP91..RHD..S

NO.1

 2
52161B - PIECE, REAR BUMPER
52161-20010

NCP91..RHD..S

NO.2

 2
52161-0K040

NCP91..ATM..E..TH

E LTD(THAI),NO.1

 2
52161-0K040

NCP91..(E,G,J)..(IDN,MA,PH,TH)

NO.1 & NO.2

 4
52161-20010

NCP91..ATM..E..TH

E LTD(THAI),NO.2

 2
52161-0K040

NCP91..RHD..S

NO.1

 2
52161B - PIECE, REAR BUMPER
52161-20010

NCP91..RHD..S

NO.2

 2
52161-0K040

NCP91..ATM..E..TH

E LTD(THAI),NO.1

 2
52161-0K040

NCP91..(E,G,J)..(IDN,MA,PH,TH)

NO.1 & NO.2

 4
52161-20010

NCP91..ATM..E..TH

E LTD(THAI),NO.2

 2
52161-0K040

NCP91..RHD..S

NO.1

 2
52161B - PIECE, REAR BUMPER
52161-20010

NCP91..RHD..S

NO.2

 2
52161-0K040

NCP91..ATM..E..TH

E LTD(THAI),NO.1

 2
52161-0K040

NCP91..(E,G,J)..(IDN,MA,PH,TH)

NO.1 & NO.2

 4
52161-20010

NCP91..ATM..E..TH

E LTD(THAI),NO.2

 2
52161-0K040

NCP91..RHD..S

NO.1

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-0D020

NCP91..S..TH

S LIMITED(THAILAND)

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D060

NCP91..IDN,MA,PH,TH

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D060

NCP91..IDN,MA,PH,TH

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D070

NCP91..IDN,MA,PH,TH

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D070

NCP91..IDN,MA,PH,TH

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D070

NCP91..IDN,MA,PH,TH

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D070

NCP91..IDN,MA,PH,TH

 1
Common parts
90109-06375
90119-08C64
90159-50311
90159-T0009
90189-06013
Linked diagrams
8113
