NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

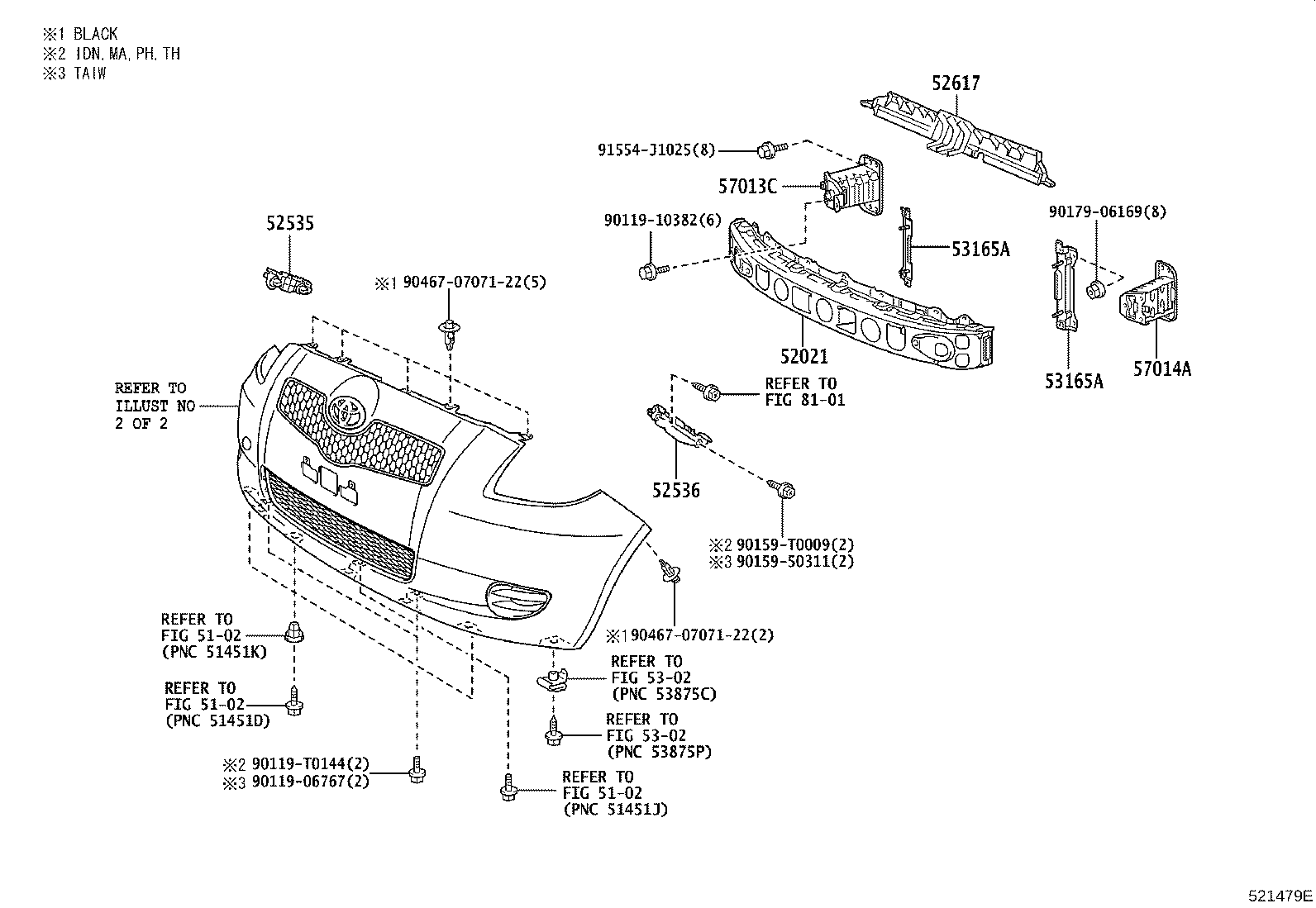

ILLUST NO. 1 OF 2(0601-0903)IDN,MA,PH,TH ; (0601-0910)TAIW

Click highlighted areas on diagram

diagram 5102 5102 5102 52021 52535 52536 52617 5302 5302 53165A 53165A 57013C 57014A 8101 9011906767 9011910382 90119T0144 9015950311 90159T0009 9017906169 904670707122 904670707122 91554J1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D090

NCP91..ATM;NCP91..MTM..(E,J)

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D040

NCP91..IDN,MA,PH,TH

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D040

NCP91..IDN,MA,PH,TH

 1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D040

NCP91..IDN,MA,PH,TH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020

NCP91..ATM;NCP91..MTM..(E,J)

RH

 1
53165-0D020

NCP91..ATM;NCP91..MTM..(E,J)

LH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020

NCP91..ATM;NCP91..MTM..(E,J)

RH

 1
53165-0D020

NCP91..ATM;NCP91..MTM..(E,J)

LH

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D020

NCP91..ATM;NCP91..MTM..(E,J)

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D020

NCP91..ATM;NCP91..MTM..(E,J)

 1
Common parts
90119-06767
90119-10382
90119-T0144
90159-50311
90159-T0009
90179-06169
90467-0707122
91554-J1025
Linked diagrams
5102
5302
8101

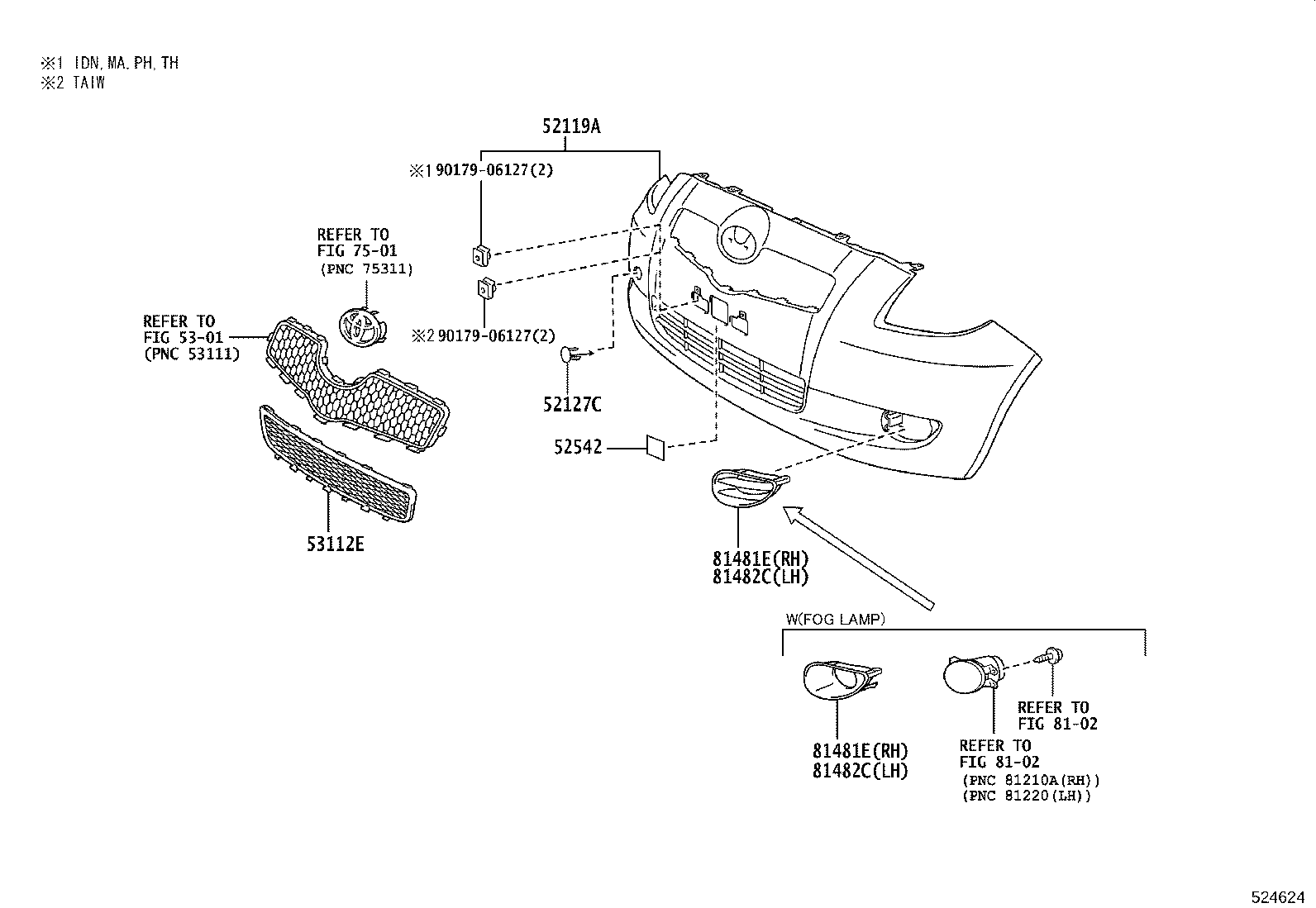

ILLUST NO. 2 OF 2(0601-0903)IDN,MA,PH,TH ; (0601-0910)TAIW

Click highlighted areas on diagram

diagram 52119A 52127C 52542 5301 53112E 7501 8102 8102 81481E 81481E 81482C 81482C 9017906127 9017906127
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-0D987

NCP91..ATM..E..TH

PAINT REQ.,E LTD(THAI)

 1
52119-0D988

NCP91..(E,G,J)..(IDN,MA,PH,TH)

PAINT REQ.

 1
52119-0D987

NCP91..RHD..S

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-0D903

NCP91..IDN,MA,PH,TH

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D110

NCP91..IDN,MA,PH,TH

NO PAINT REQ.

 1
81481E - COVER, FOG LAMP, RH
81481-0D030

NCP91..RHD..(E,J)

 1
81481-0D040

NCP91..PH;NCP91..RHD..(G,S)

 1
81481E - COVER, FOG LAMP, RH
81481-0D030

NCP91..RHD..(E,J)

 1
81481-0D040

NCP91..PH;NCP91..RHD..(G,S)

 1
81482C - COVER, FOG LAMP, LH
81482-0D040

NCP91..RHD..(E,J)

 1
81482-0D050

NCP91..PH;NCP91..RHD..(G,S)

 1
81482C - COVER, FOG LAMP, LH
81482-0D040

NCP91..RHD..(E,J)

 1
81482-0D050

NCP91..PH;NCP91..RHD..(G,S)

 1
Common parts
90179-06127
Linked diagrams
5301
7501
8102
