NCP91R-AHPVKT (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )RHD

Click highlighted areas on diagram

diagram 45025D 45200 45209 45255 45259A 45260 45271 45280A 45286 45287 45874B 45897 8401 8401 8401 8401 9010508410 90119T0168 90119T0168 90119T0168 90159T0003 90164T0004 90178T0019 9046706188 9046706188 91641C0814
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D110

NCP91..IDN,MA,PH,TH

 1
45200 - POST ASSY, STEERING
45200-52260

NCP91..RHD

 1
45200-0D250

NCP91..RHD

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-0D030

NCP91..IDN,MA,PH,TH

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0D030

NCP91..RHD..ATM

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0D080

NCP91..RHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NCP91..IDN,MA,PH,TH

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-22510

NCP91..RHD..ATM

 1
45280-06080

NCP91..ATM..(IDN,MA,PH,TH)

 1
45286 - COVER, STEERING COLUMN
45286-0D080B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0D050B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP91..IDN,MA,PH,TH

 2
Common parts
90105-08410
90119-T0168
90159-T0003
90164-T0004
90178-T0019
90467-06188
91641-C0814
Linked diagrams
8401

(0601- )ATM..G,S..IDN,TH

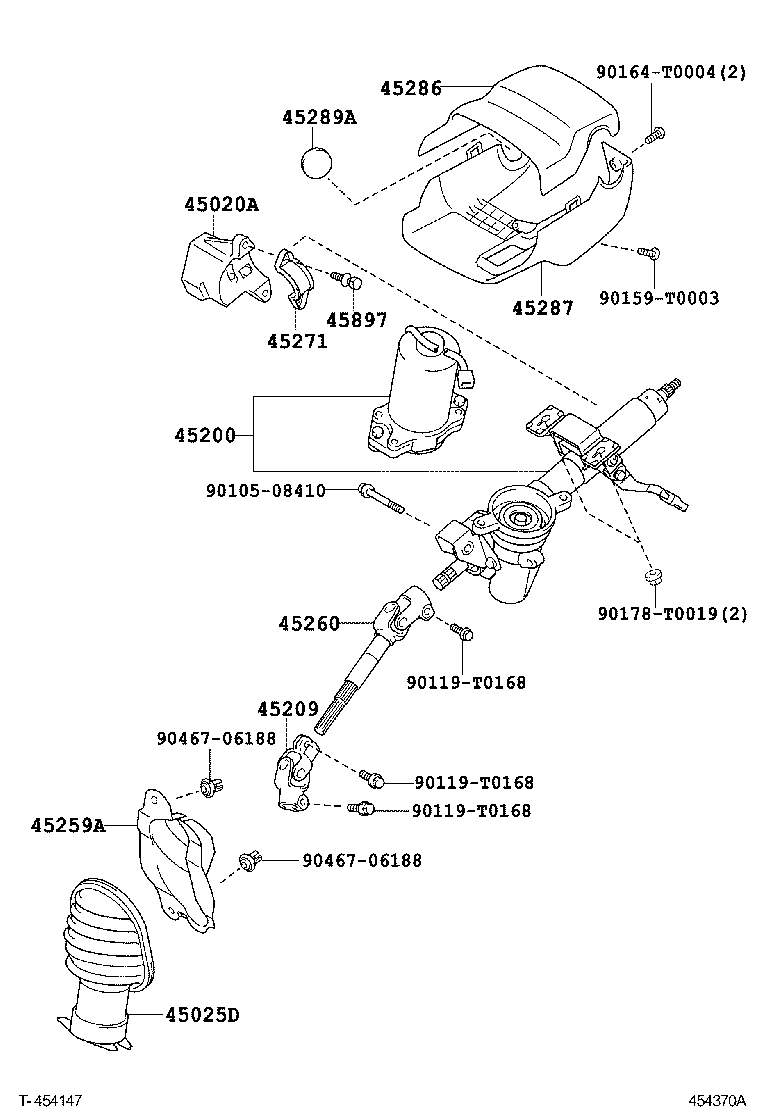

Click highlighted areas on diagram

W(SMART KEY SYSTEM)

diagram 45020A 45025D 45200 45209 45259A 45260 45271 45286 45287 45289A 45897 9010508410 90119T0168 90119T0168 90119T0168 90159T0003 90164T0004 90178T0019 9046706188 9046706188
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D110

NCP91..IDN,MA,PH,TH

 1
45200 - POST ASSY, STEERING
45200-52260

NCP91..RHD

 1
45200-0D250

NCP91..RHD

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-0D030

NCP91..IDN,MA,PH,TH

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0D030

NCP91..RHD..ATM

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0D080

NCP91..RHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NCP91..IDN,MA,PH,TH

 1
45286 - COVER, STEERING COLUMN
45286-0D080B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0D050B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP91..IDN,MA,PH,TH

 2
Common parts
90105-08410
90119-T0168
90159-T0003
90164-T0004
90178-T0019
90467-06188
