NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
Production
Jan 2006
-
Mar 2009
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )ATM

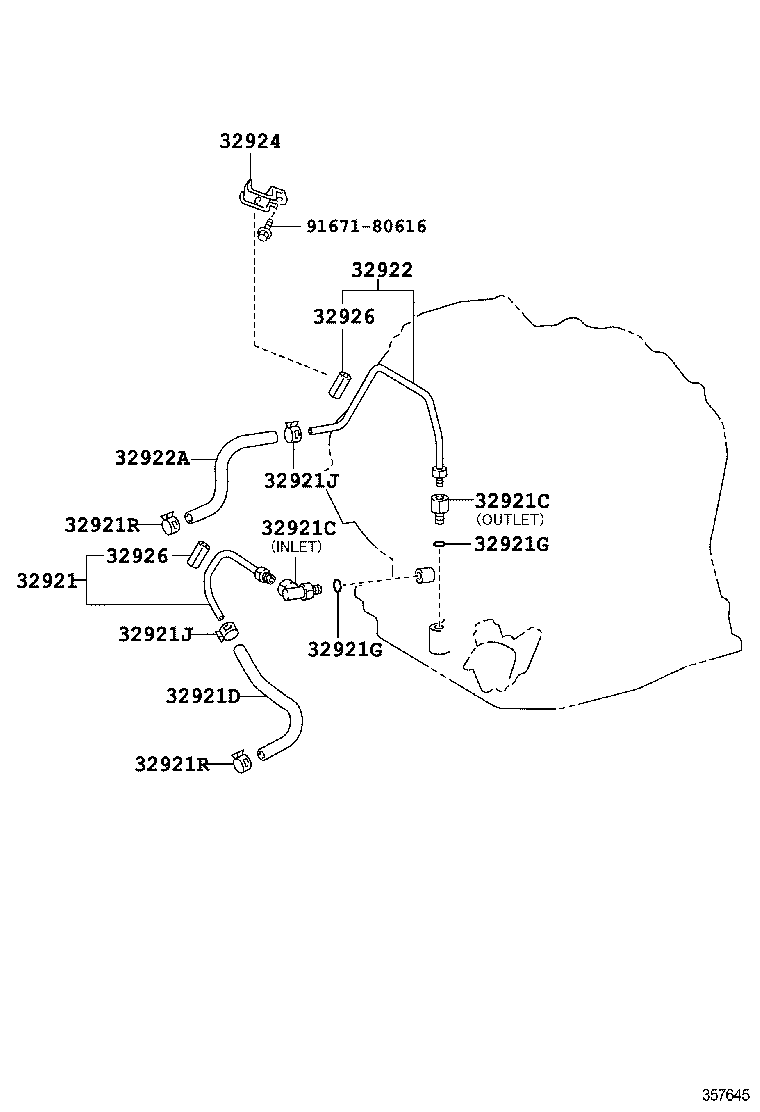

Click highlighted areas on diagram
U340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-0D030 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
NCP91..ATM INLET |
1 | ||
| 90404-14007 |
NCP91..ATM OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
NCP91..ATM INLET |
1 | ||
| 90404-14007 |
NCP91..ATM OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90080-44132 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NCP91..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NCP91..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP91..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NCP91..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-0D030 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90080-44133 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-52010 |
NCP91..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NCP91..ATM L=30,ID=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NCP91..ATM L=30,ID=8 |
2 | ||
| Common parts | ||||
| 91671-80616 | ||||
