NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
Production
Jan 2006
-
Mar 2009
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

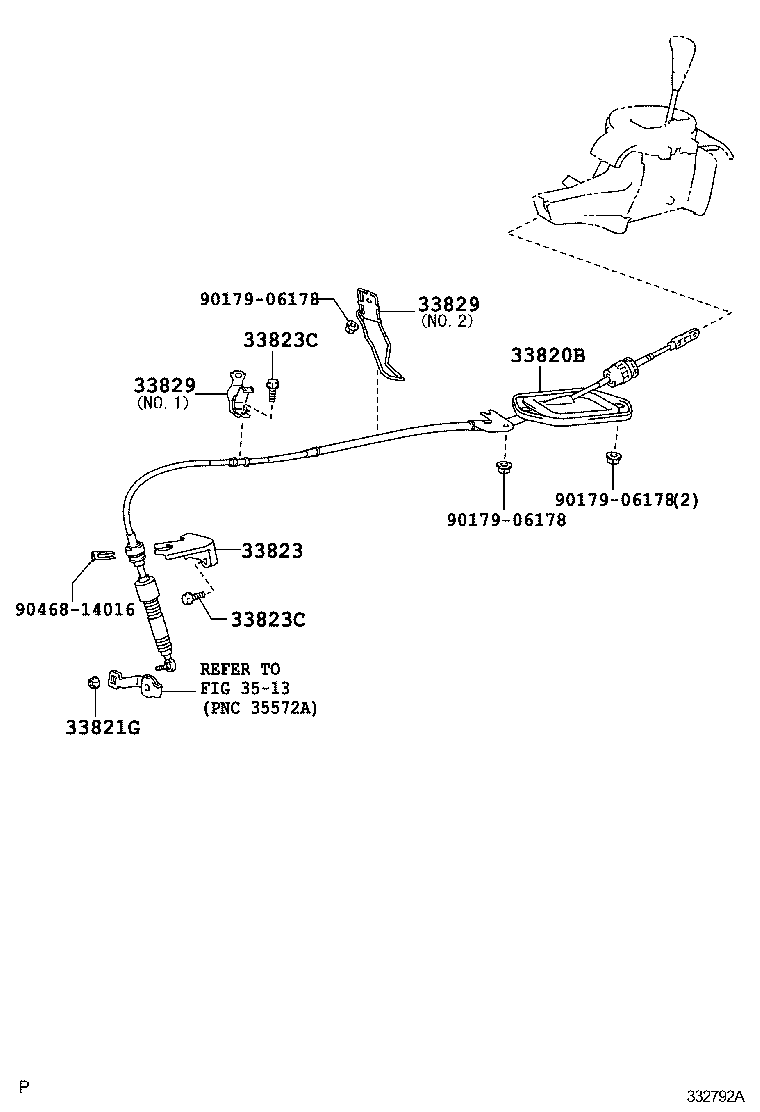

ILLUST NO. 2 OF 2(0601- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D150 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90080-17130 |
NCP91..ATM (L) |
1 | ||
| 90179-08061 |
NCP91..ATM (J) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D010 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP91..ATM (J) |
3 | ||
| 90119-T0029 |
NCP91..ATM (L) |
3 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
NCP91..ATM (J) |
3 | ||
| 90119-T0029 |
NCP91..ATM (L) |
3 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52091 |
NCP91..ATM NO.2 |
1 | ||
| 33829-52080 |
NCP91..ATM NO.1 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52091 |
NCP91..ATM NO.2 |
1 | ||
| 33829-52080 |
NCP91..ATM NO.1 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3513 | ||||

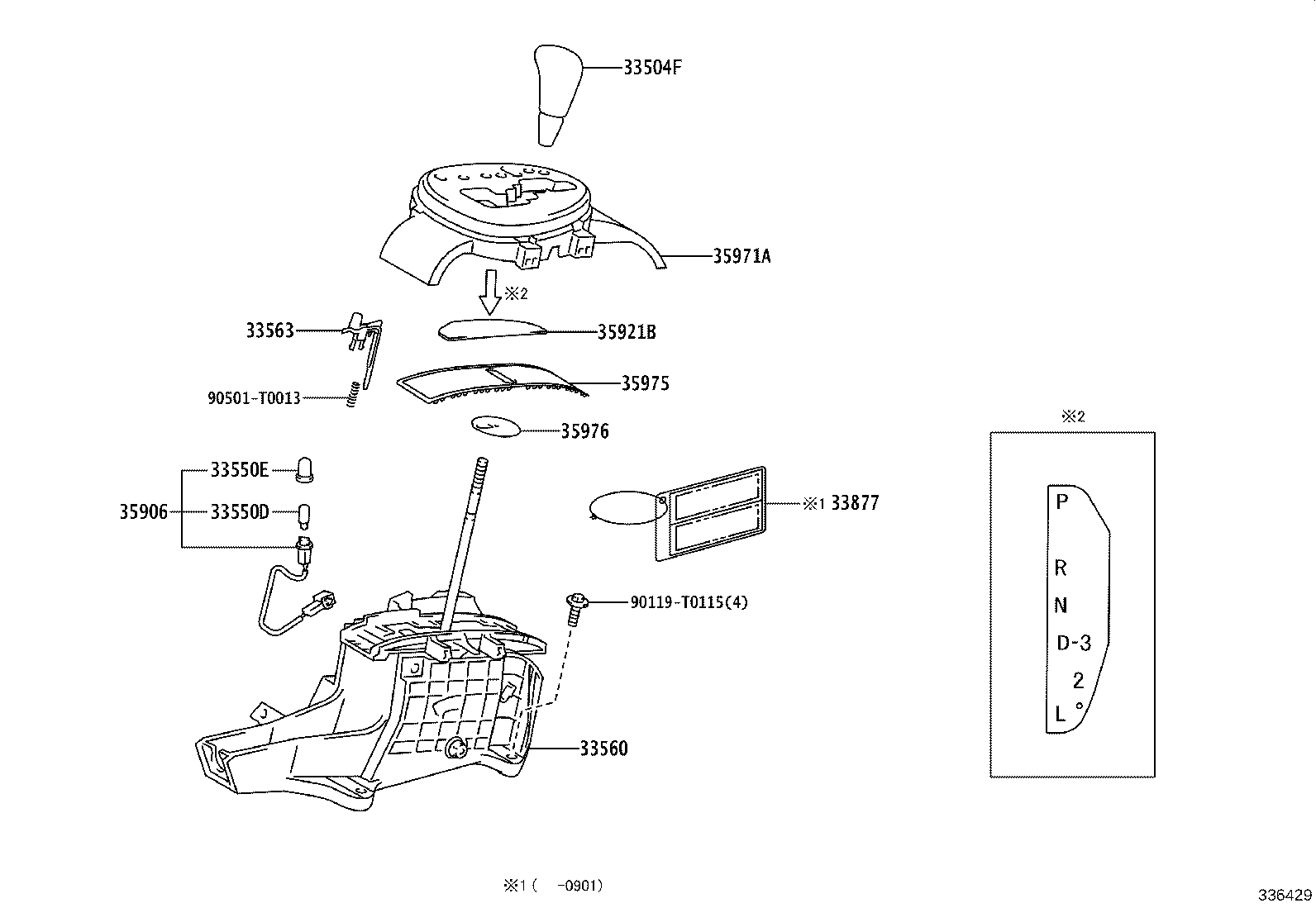

ILLUST NO. 1 OF 2(0601- )RHD..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0K010B0 |
NCP91..ATM..(E,G,J)..(IDN,MA,PH,TH) DK.GRAY,TRIM1# |
1 | ||
| 33504-35060B0 |
NCP91..RHD..S DK.GRAY,TRIM1# |
1 | ||
| 33504-35060B0 |
NCP91..ATM..E..TH E LTD(THAI),DK.GRAY,TRIM1# |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-0D050 |
NCP91..RHD..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-0D030 |
NCP91..RHD..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-02010 |
NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-0D030 |
NCP91..RHD..ATM..(E,G,J) |
1 | ||
| 35906-0D040 |
NCP91..RHD..S |
1 | ||
| 35921B - PLATE, CONTROL POSITION INDICATOR NO,2 | ||||
| 35921-0D030 |
NCP91..RHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-0D110 |
NCP91..S |
1 | ||
| 35971-0D100 |
NCP91..ATM..(E,G) |
1 | ||
| 35971-0D101 |
NCP91..RHD..ATM..(E,G,J) |
1 | ||
| 35971-0D111 |
NCP91..RHD..S |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-0D030 |
NCP91..RHD..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-0D050 |
NCP91..RHD..ATM |
1 | ||
| Common parts | ||||
| 90119-T0115 | ||||
| 90501-T0013 | ||||
