NCP91R-AHPVKT (2006)
Toyota Yaris (Asia)
Production
Jan 2006
-
Mar 2009
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )1NZFE..ATM

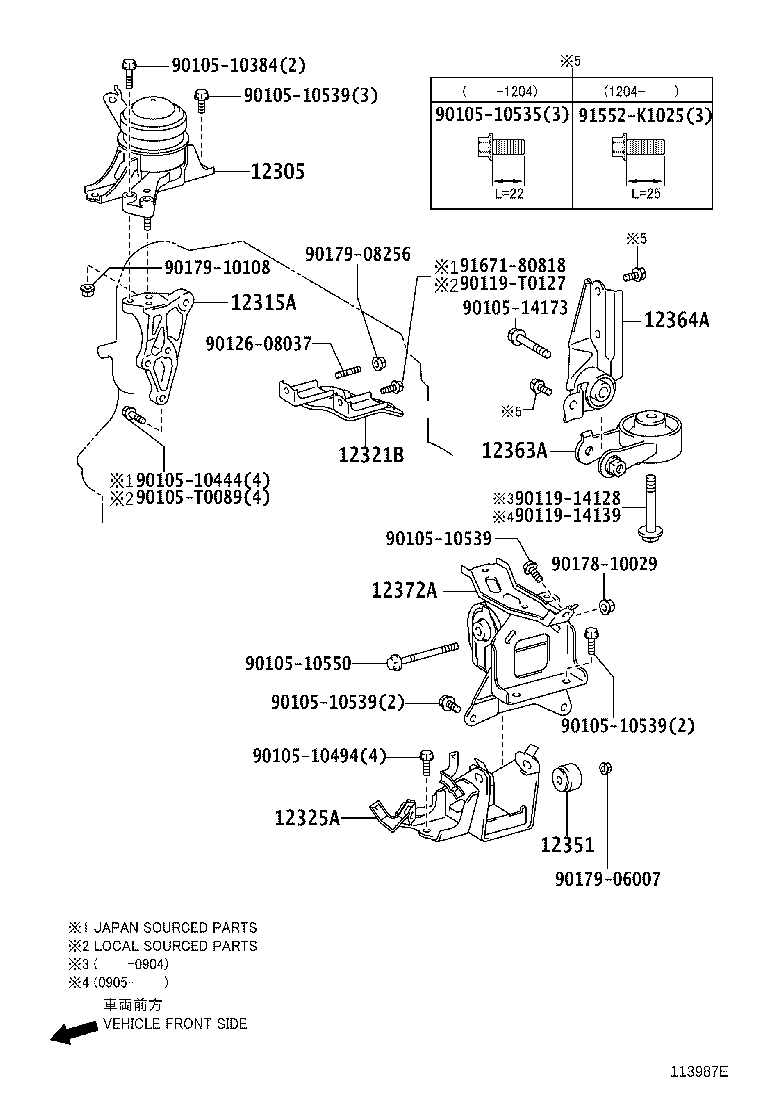

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21340 |
1NZFE..NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0M011 |
1NZFE..NCP91..IDN,MA,PH,TH |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-0D020 |
1NZFE..NCP91..IDN,MA,PH,TH (L) |
1 | ||
| 43409-52020 |
1NZFE..NCP91..RHD |
1 | ||
| 43409-52020 |
1NZFE..NCP91..IDN,MA,PH,TH (J) |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0M070 |
1NZFE..NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-21090 |
1NZFE..NCP91..IDN,MA,PH,TH |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0M020 |
1NZFE..NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 12364A - ROD, ENGINE LATERAL CONTROL | ||||
| 12364-0M010 |
1NZFE..NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0M060 |
1NZFE..NCP91..ATM..(IDN,MA,PH,TH) |
1 | ||
| Common parts | ||||
| 90105-10384 | ||||
| 90105-10444 | ||||
| 90105-10494 | ||||
| 90105-10535 | ||||
| 90105-10539 | ||||
| 90105-10550 | ||||
| 90105-14173 | ||||
| 90105-T0089 | ||||
| 90119-14128 | ||||
| 90119-14139 | ||||
| 90119-T0127 | ||||
| 90126-08037 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 91552-K1025 | ||||
| 91671-80818 | ||||
