NCP91R-AHPRKD (2006)

Toyota Yaris (Asia)

Production Jan 2006 - Mar 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0712)IDN,MA,PH,TH

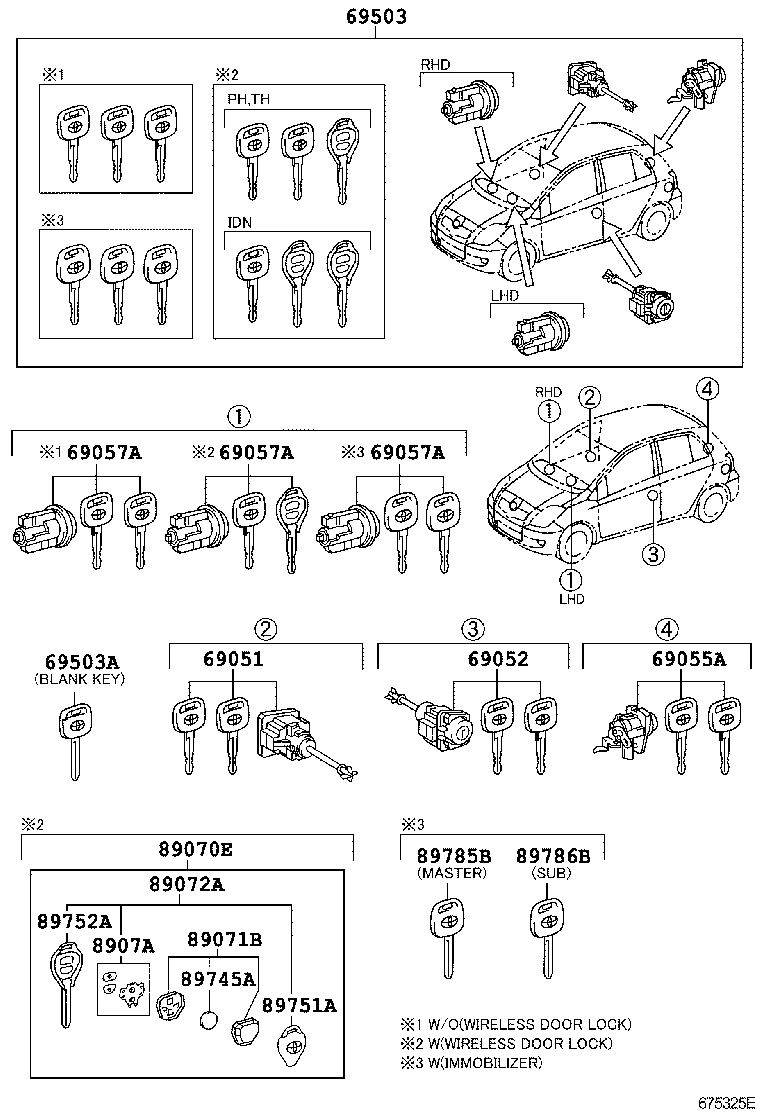

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69057A 69057A 69057A 69503 69503A 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0D070

NCP91..IDN,MA,PH,TH

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D070

NCP91..IDN,MA,PH,TH

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-0D060

NCP91..IDN,MA,PH,TH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69503 - CYLINDER SET, LOCK
69005-0D121

NCP91..IDN

 1
69005-0D310

NCP91..IDN

 1
69005-0D120

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69503A - KEY, BLANK
90999-00199

NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH)

MASTER KEY,W(*68)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52740

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
89070-0D220

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89070-0D221

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71010

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89071-71050

NCP91..IDN

 2
89071-71050

NCP91..IDN

 1
89071-71051

NCP91..IDN

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D090

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71010

NCP91..IDN

 1
89745A - BATTERY, TRANSMITTER
89745-71010

NCP91..(E,J)..(IDN,PH,TAIW);NCP91..ATM..(G,S)..(IDN,TAIW,TH)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52140

NCP91..IDN

 1
89751-52120

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89751-52140

NCP91..IDN

 2

(0601- )

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69503 69503A 69503B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-0D121

NCP91..IDN

 1
69005-0D310

NCP91..IDN

 1
69005-0D120

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69503A - KEY, BLANK
90999-00199

NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH)

MASTER KEY,W(*68)

 1
89745A - BATTERY, TRANSMITTER
89745-71010

NCP91..(E,J)..(IDN,PH,TAIW);NCP91..ATM..(G,S)..(IDN,TAIW,TH)

 1

(0712-0903)IDN,MA,PH,TH

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69057A 69057A 69057A 69503 69503A 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0D070

NCP91..IDN,MA,PH,TH

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D070

NCP91..IDN,MA,PH,TH

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-0D060

NCP91..IDN,MA,PH,TH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D100

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69057-0D101

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
69503 - CYLINDER SET, LOCK
69005-0D121

NCP91..IDN

 1
69005-0D310

NCP91..IDN

 1
69005-0D120

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
69503A - KEY, BLANK
90999-00199

NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH)

MASTER KEY,W(*68)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52740

NCP91..E..IDN;NCP91..(G,S)..(IDN,TH)

 1
89070-0D220

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89070-0D221

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71010

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89071-71050

NCP91..IDN

 2
89071-71050

NCP91..IDN

 1
89071-71051

NCP91..IDN

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D090

NCP91..(G,S)..(IDN,TH);NCP91..(E,J)..(IDN,PH)

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71010

NCP91..IDN

 1
89745A - BATTERY, TRANSMITTER
89745-71010

NCP91..(E,J)..(IDN,PH,TAIW);NCP91..ATM..(G,S)..(IDN,TAIW,TH)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52140

NCP91..IDN

 1
89751-52120

NCP91..E..(IDN,PH);NCP91..(G,S)..(IDN,TH)

 1
89751-52140

NCP91..IDN

 2
