NCP91R-AHMVKD (2009)

Toyota Yaris (Asia)

Production Mar 2009 - Jul 2013
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1112)RHD..G,J ; (0601-1112)E,S..MA,PH,TH ;(0601- )E,S..IDN

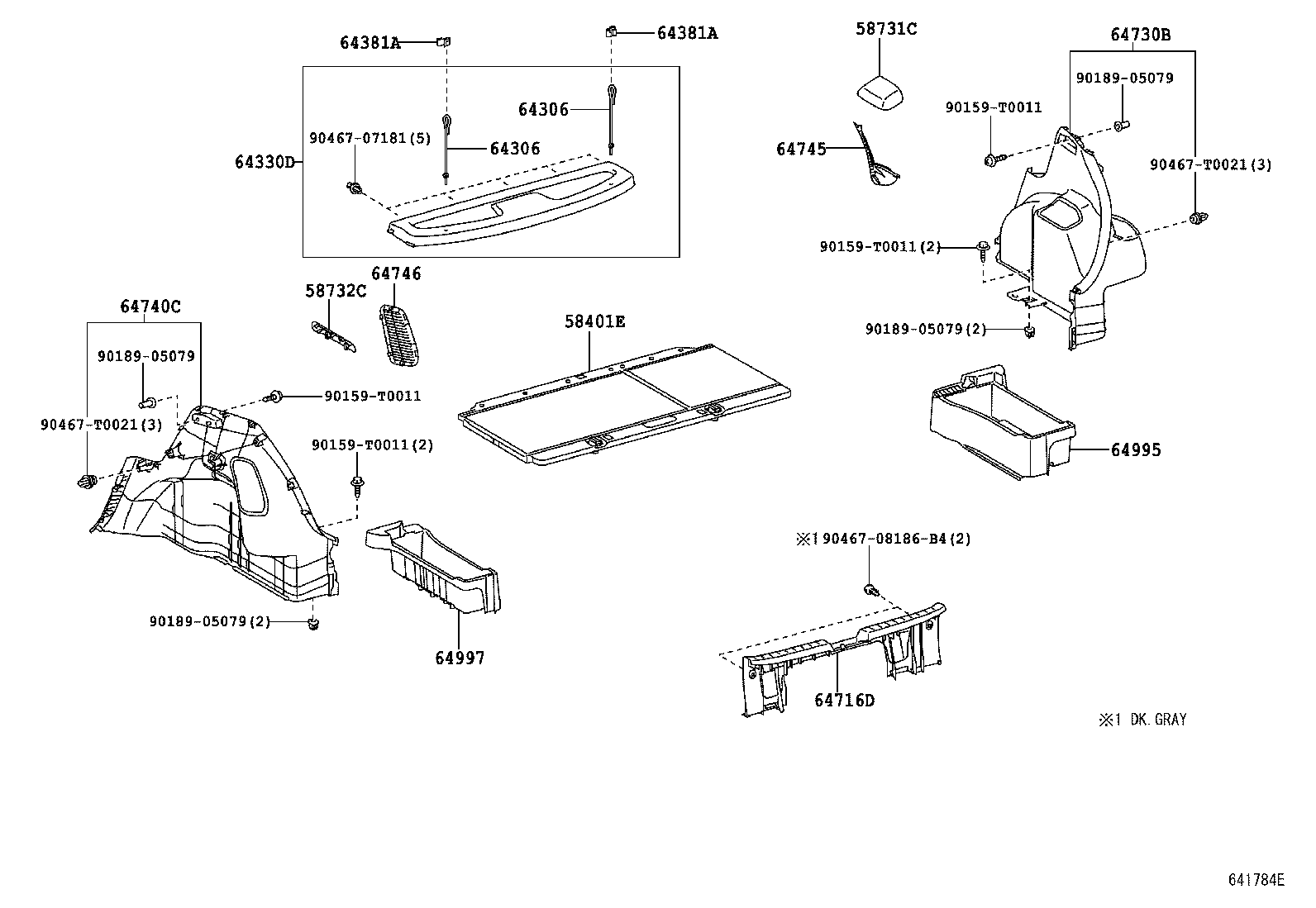

Click highlighted areas on diagram

diagram 58401E 58731C 58732C 64306 64306 64330D 64381A 64381A 64716D 64730B 64740C 64745 64746 64995 64997 90159T0011 90159T0011 90159T0011 90159T0011 9018905079 9018905079 9018905079 9018905079 9046707181 9046708186B4 90467T0021 90467T0021
Part # Description Qty Price
58401E - BOARD SUB-ASSY, DECK
58410-52020B0

NCP91..(E,S)..IDN

GRAY,TRIM1#

 1
58410-52020B0

NCP91..IDN,MA,PH,TH

GRAY,TRIM1#

 1
58731C - CAP, REAR ABSORBER
58731-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
58731-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
58732-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-0D050

NCP91..S..IDN;NCP91..(E,G,S)..(MA,TH)

 2
64306-0D050

NCP91..RHD..(G,S)

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-0D050

NCP91..S..IDN;NCP91..(E,G,S)..(MA,TH)

 2
64306-0D050

NCP91..RHD..(G,S)

 2
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-0D100C0

NCP91..G,S

BLACK,TRIM1#

 1
64330-0D101C0

NCP91..S..IDN;NCP91..(E,G,S)..(MA,TH)

BLACK,TRIM1#

 1
64381A - HANGER, PACKAGE TRAY TRIM
64381-52010

NCP91..RHD..(G,S)

 2
64381-52010

NCP91..S..IDN;NCP91..(E,G,S)..(MA,TAIW,TH)

 2
64381A - HANGER, PACKAGE TRAY TRIM
64381-52010

NCP91..RHD..(G,S)

 2
64381-52010

NCP91..S..IDN;NCP91..(E,G,S)..(MA,TAIW,TH)

 2
64716D - COVER, DECK TRIM, REAR
64716-0D040B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64716-0D040B0

NCP91..(E,S)..IDN

DK.GRAY,TRIM1#

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-0D130B0

NCP91..(E,J)..(IDN,PH,TH)

DK.GRAY,TRIM1#

 1
64730-0D120B0

NCP91..RHD..(G,S)

DK.GRAY,TRIM1#

 1
64730-0D120B0

NCP91..RHD..(G,S)

DK.GRAY,TRIM1#

 1
64730-0D130B0

NCP91..J;NCP91..E..(IDN,PH)

DK.GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-0D150B0

NCP91..(E,J)..(IDN,PH,TH)

DK.GRAY,TRIM1#

 1
64740-0D150B0

NCP91..J;NCP91..E..(IDN,PH)

DK.GRAY,TRIM1#

 1
64740-0D140B0

NCP91..RHD..(G,S)

DK.GRAY,TRIM1#

 1
64740-0D151B0

NCP91..J;NCP91..E..(IDN,PH)

DK.GRAY,TRIM1#

 1
64740-0D141B0

NCP91..RHD..(G,S)

DK.GRAY,TRIM1#

 1
64740-0D140B0

NCP91..RHD..(G,S)

DK.GRAY,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64745-0D030B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-0D040B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64746-0D040B0

NCP91..IDN,MA,PH,TH

DK.GRAY,TRIM1#

 1
64995 - BOX, DECK FLOOR, RH
64995-0D020

NCP91..(E,S)..IDN

 1
64995-0D020

NCP91..IDN,MA,PH,TH

 1
64997 - BOX, DECK FLOOR, LH
64997-0D020

NCP91..IDN,MA,PH,TH

 1
64997-0D020

NCP91..(E,S)..IDN

 1
Common parts
90159-T0011
90189-05079
90467-07181
90467-08186B4
90467-T0021
