Toyota Yaris (asia) NCP91 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
YARIS (ASIA)
NCP91R-AHMVKD (2009)
5202 - REAR BUMPER & BUMPER STAY

NCP91R-AHMVKD (2009)

Toyota Yaris (Asia)

Production Mar 2009 - Jul 2013

Engine 1NZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

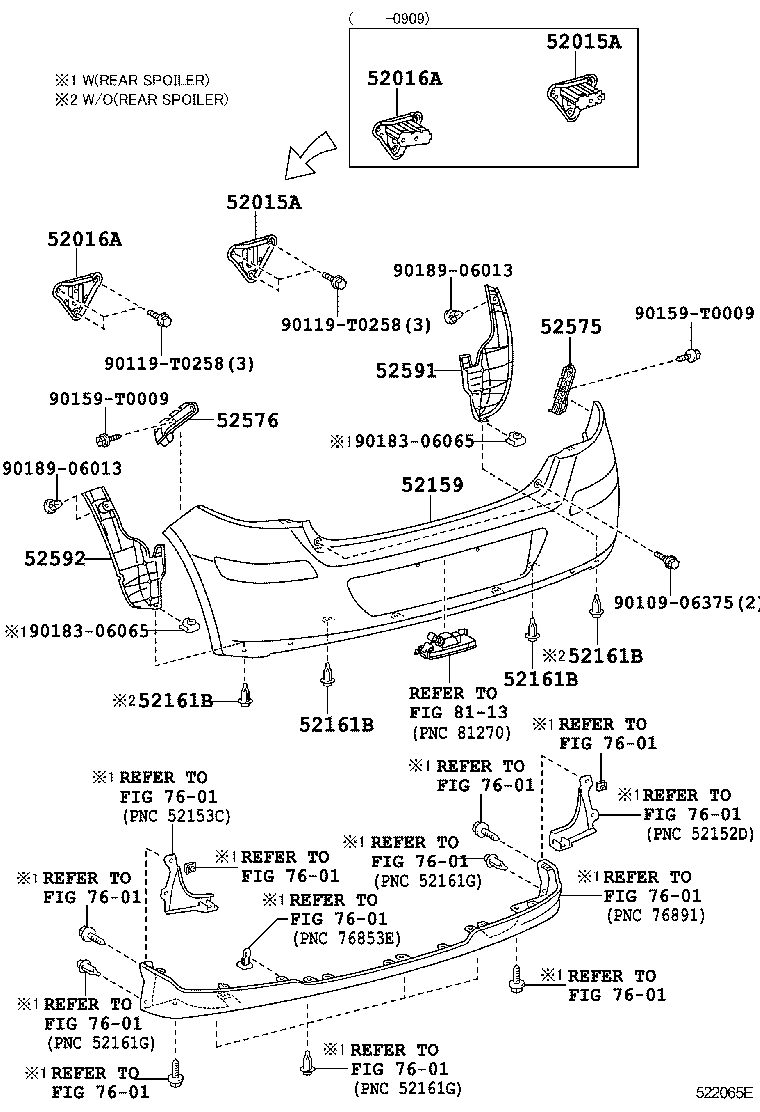

(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-0D040	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52163-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-0D040	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52163-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52164-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52016-0D030	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52164-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52016-0D030	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52159 - COVER, REAR BUMPER
52159-0D978	NCP91..RHD..S PAINT REQ.	01/2006 - 03/2009	1
52159-0D910	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH) PAINT REQ.	03/2009 - 02/2012	1
52159-0D920	NCP91..RHD..S PAINT REQ.	03/2009 - 02/2012	1
52159-0D977	NCP91..(E,G,J)..(IDN,MA,PH,TH) PAINT REQ.	01/2006 - 03/2009	1
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52161B - PIECE, REAR BUMPER
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D060	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52575-52111	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52575-0D060	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D060	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52576-0D060	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52576-52091	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D100	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52591-0D070	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52591-52280	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D100	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52592-52260	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52592-0D070	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
Common parts
90109-06375
90119-T0258
90159-T0009
90183-06065
90189-06013
Linked diagrams
7601
8113

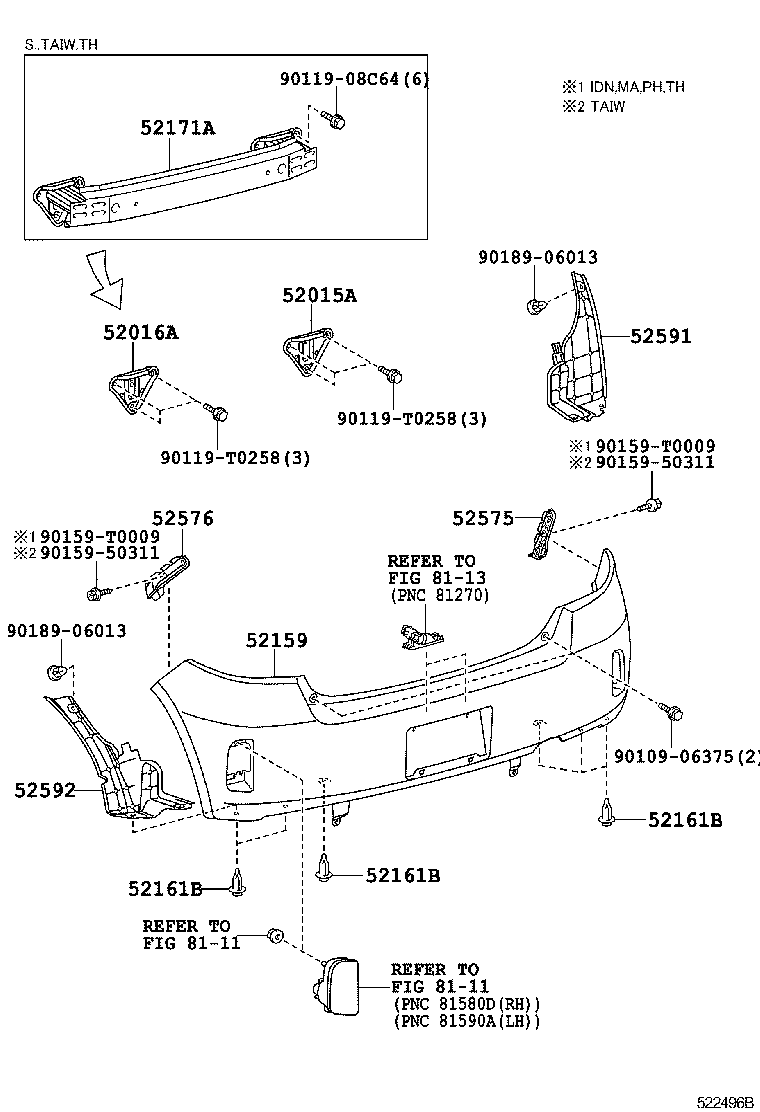

(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-0D040	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52163-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52164-0D040	NCP91..S..(IDN,MA);NCP91..(E,G,J)..(IDN,MA,PH,TH)	09/2009 - 07/2013	1
52016-0D030	NCP91..IDN,MA,PH,TH	03/2009 - 09/2009	1
52159 - COVER, REAR BUMPER
52159-0D978	NCP91..RHD..S PAINT REQ.	01/2006 - 03/2009	1
52159-0D910	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH) PAINT REQ.	03/2009 - 02/2012	1
52159-0D920	NCP91..RHD..S PAINT REQ.	03/2009 - 02/2012	1
52159-0D977	NCP91..(E,G,J)..(IDN,MA,PH,TH) PAINT REQ.	01/2006 - 03/2009	1
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52161B - PIECE, REAR BUMPER
52161-0K040	NCP91..RHD..S	03/2009 - 02/2012	2
52161-20010	NCP91..RHD..S NO.2	01/2006 - 03/2009	2
52161-0K040	NCP91..(E,G,J)..(IDN,MA,PH,TH) NO.1 & NO.2	01/2006 - 03/2009	4
52161-0K040	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH)	03/2009 - 02/2012	4
52161-0K040	NCP91..RHD..S NO.1	01/2006 - 03/2009	2
52161-0K040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 07/2013	6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D060	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52575-52111	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52575-0D060	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D060	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52576-0D060	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52576-52091	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D100	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52591-0D070	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52591-52280	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D100	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52592-52260	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52592-0D070	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
Common parts
90109-06375
90119-08C64
90119-T0258
90159-50311
90159-T0009
90189-06013
Linked diagrams
8111
8113

NCP91R-AHMVKD (2009)

(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH

(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW
