Toyota Yaris (asia) NCP91 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
YARIS (ASIA)
NCP91R-AHMVKD (2009)
5201 - FRONT BUMPER & BUMPER STAY

NCP91R-AHMVKD (2009)

Toyota Yaris (Asia)

Production Mar 2009 - Jul 2013

Engine 1NZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

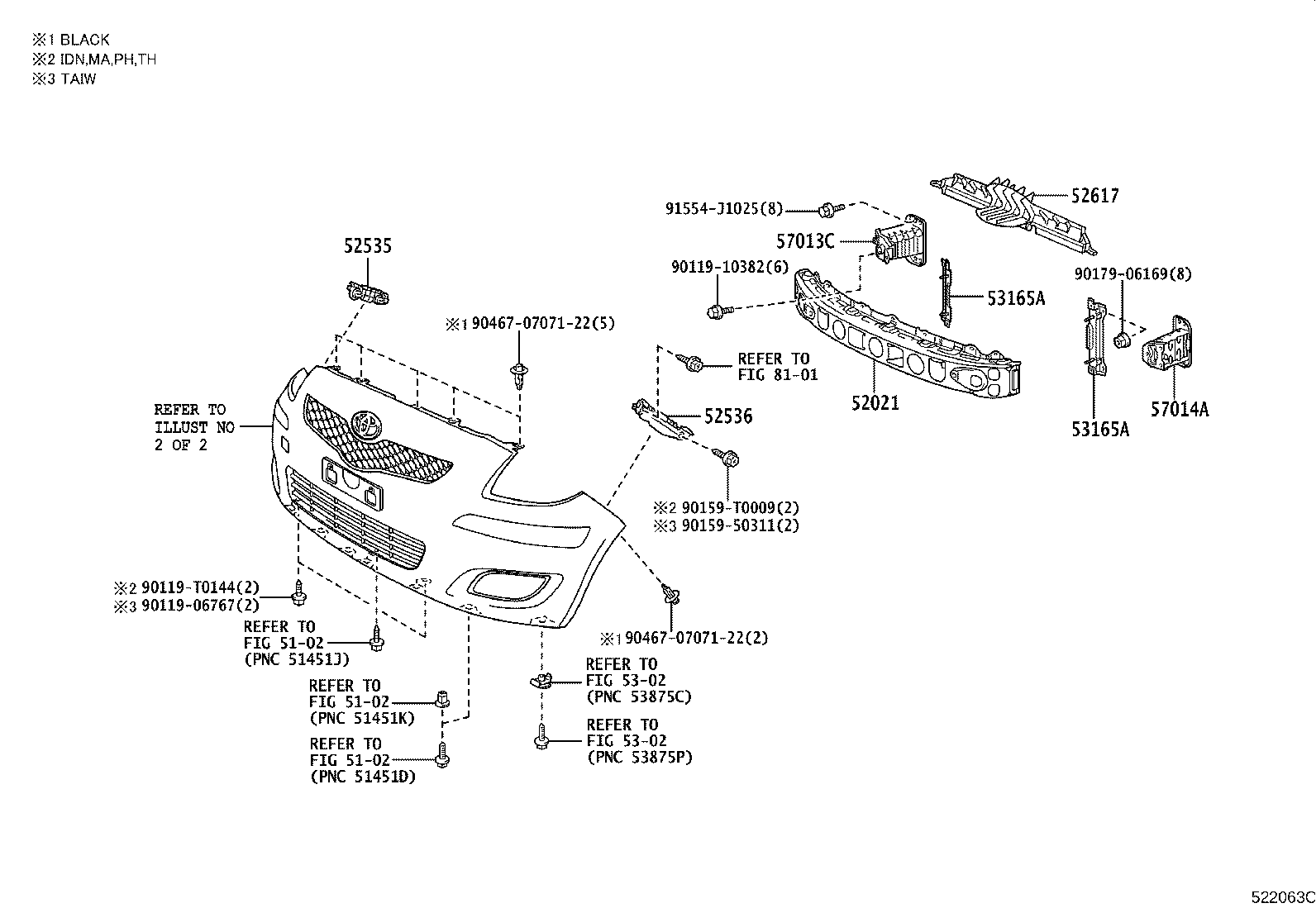

ILLUST NO. 1 OF 2(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH ; (0910-1204)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D090	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D040	NCP91	03/2009 - 12/2999	1
52535-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D040	NCP91	03/2009 - 12/2999	1
52536-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52617-52020	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52617-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020	NCP91..ATM;NCP91..MTM..(E,J) RH	01/2006 - 10/2009	1
53165-0D020	NCP91..ATM;NCP91..MTM..(E,J) LH	01/2006 - 10/2009	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020	NCP91..ATM;NCP91..MTM..(E,J) RH	01/2006 - 10/2009	1
53165-0D020	NCP91..ATM;NCP91..MTM..(E,J) LH	01/2006 - 10/2009	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D020	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
57013-0D020	NCP91..IDN,MA,PH,TH	03/2009 - 07/2013	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D020	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
Common parts
90119-06767
90119-10382
90119-T0144
90159-50311
90159-T0009
90179-06169
90467-0707122
91554-J1025
Linked diagrams
5102
5302
8101

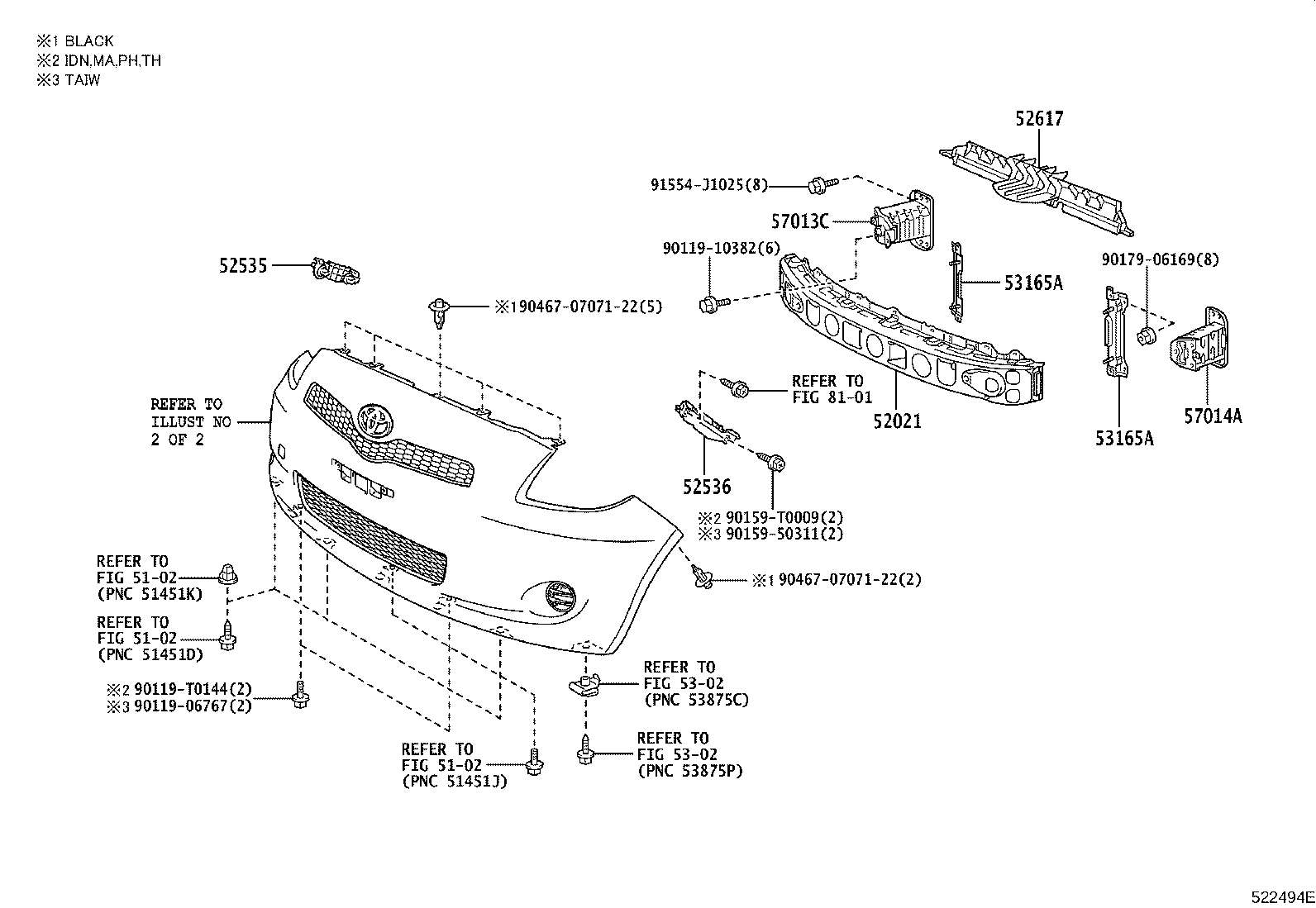

ILLUST NO. 1 OF 2(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D090	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D040	NCP91	03/2009 - 12/2999	1
52535-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D040	NCP91	03/2009 - 12/2999	1
52536-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D040	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52617-52020	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52617-0D040	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020	NCP91..ATM;NCP91..MTM..(E,J) RH	01/2006 - 10/2009	1
53165-0D020	NCP91..ATM;NCP91..MTM..(E,J) LH	01/2006 - 10/2009	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-0D020	NCP91..ATM;NCP91..MTM..(E,J) RH	01/2006 - 10/2009	1
53165-0D020	NCP91..ATM;NCP91..MTM..(E,J) LH	01/2006 - 10/2009	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D020	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
57013-0D020	NCP91..IDN,MA,PH,TH	03/2009 - 07/2013	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D020	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
Common parts
90119-06767
90119-10382
90119-T0144
90159-50311
90159-T0009
90179-06169
90467-0707122
91554-J1025
Linked diagrams
5102
5302
8101

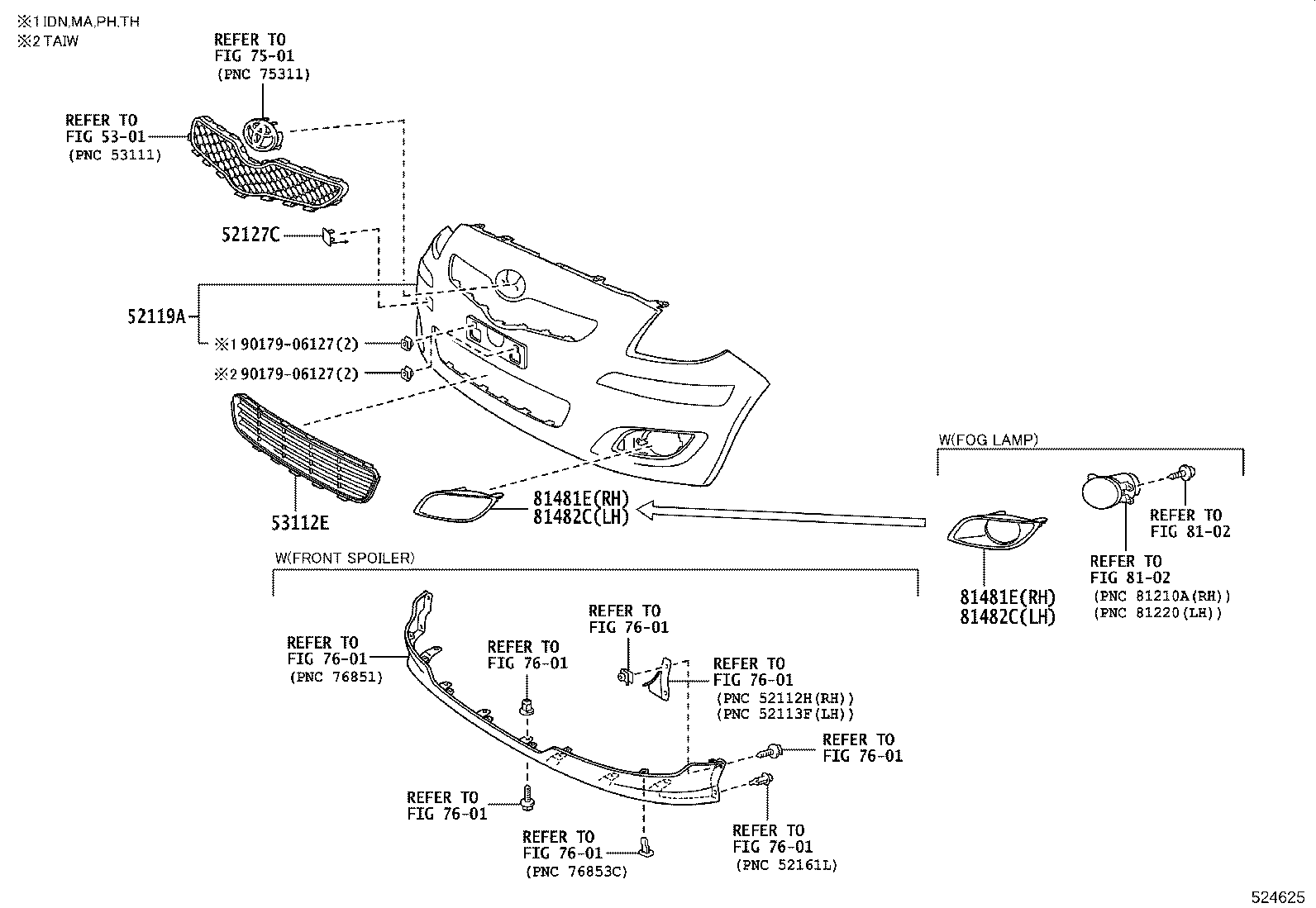

ILLUST NO. 2 OF 2(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH ; (0910-1204)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52119A - COVER, FRONT BUMPER
52119-0D988	NCP91..(E,G,J)..(IDN,MA,PH,TH) PAINT REQ.	01/2006 - 03/2009	1
52119-0D987	NCP91..RHD..S PAINT REQ.	01/2006 - 03/2009	1
52119-0D920	NCP91..RHD..S PAINT REQ.	03/2009 - 02/2012	1
52119-0D910	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH) PAINT REQ.	03/2009 - 02/2012	1
52127C - COVER, FRONT BUMPER HOLE
52127-0D911	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52127-52928	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52127-0D903	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D110	NCP91..IDN,MA,PH,TH NO PAINT REQ.	01/2006 - 03/2009	1
53112-0D170	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH) NO PAINT REQ.	03/2009 - 02/2012	1
81481E - COVER, FOG LAMP, RH
81481-0D030	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81481-0D110	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81481-0D040	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
81481-0D210	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81481-0D120	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81481E - COVER, FOG LAMP, RH
81481-0D030	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81481-0D110	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81481-0D040	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
81481-0D210	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81481-0D120	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81482C - COVER, FOG LAMP, LH
81482-0D120	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81482-0D040	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81482-0D130	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81482-0D220	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81482-0D050	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
81482C - COVER, FOG LAMP, LH
81482-0D120	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81482-0D040	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81482-0D130	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81482-0D220	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81482-0D050	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
Common parts
90179-06127
Linked diagrams
5301
7501
7601
8102

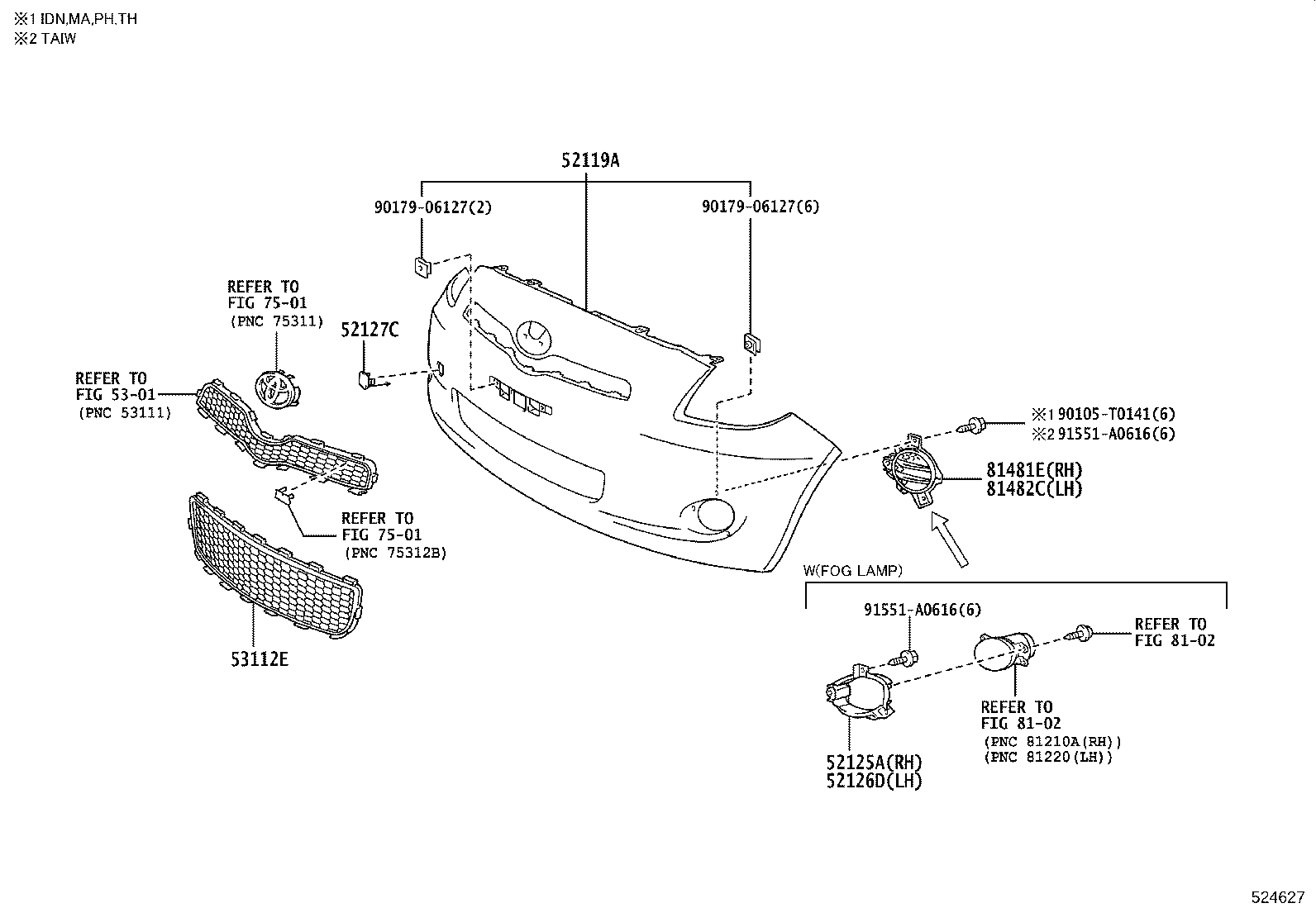

ILLUST NO. 2 OF 2(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
52119A - COVER, FRONT BUMPER
52119-0D988	NCP91..(E,G,J)..(IDN,MA,PH,TH) PAINT REQ.	01/2006 - 03/2009	1
52119-0D987	NCP91..RHD..S PAINT REQ.	01/2006 - 03/2009	1
52119-0D920	NCP91..RHD..S PAINT REQ.	03/2009 - 02/2012	1
52119-0D910	NCP91..J..IDN;NCP91..(E,G)..(IDN,MA,PH,TH) PAINT REQ.	03/2009 - 02/2012	1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-52050	NCP91..PH;NCP91..RHD..(G,S)	02/2012 - 12/2999	1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-52050	NCP91..PH;NCP91..RHD..(G,S)	02/2012 - 12/2999	1
52127C - COVER, FRONT BUMPER HOLE
52127-0D911	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	03/2009 - 02/2012	1
52127-52928	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)	02/2012 - 12/2999	1
52127-0D903	NCP91..IDN,MA,PH,TH	01/2006 - 03/2009	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D110	NCP91..IDN,MA,PH,TH NO PAINT REQ.	01/2006 - 03/2009	1
53112-0D170	NCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH) NO PAINT REQ.	03/2009 - 02/2012	1
81481E - COVER, FOG LAMP, RH
81481-0D030	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81481-0D110	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81481-0D040	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
81481-0D210	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81481-0D120	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81482C - COVER, FOG LAMP, LH
81482-0D120	NCP91..E..TH;NCP91..(E,J)..IDN	03/2009 - 02/2012	1
81482-0D040	NCP91..RHD..(E,J)	01/2006 - 03/2009	1
81482-0D130	NCP91..PH;NCP91..RHD..(G,S)	03/2009 - 02/2012	1
81482-0D220	NCP91..E..TH;NCP91..(E,J)..IDN	02/2012 - 07/2013	1
81482-0D050	NCP91..PH;NCP91..RHD..(G,S)	01/2006 - 03/2009	1
Common parts
90105-T0141
90179-06127
91551-A0616
Linked diagrams
5301
7501
8102

NCP91R-AHMVKD (2009)

ILLUST NO. 1 OF 2(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH ; (0910-1204)

ILLUST NO. 1 OF 2(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW

ILLUST NO. 2 OF 2(0903-1202)J..IDN ; (0903-1202)E,G,S..IDN,MA,PH,TH ; (0903- )J..TH ; (0910-1204)

ILLUST NO. 2 OF 2(1202- )J..IDN ; (1202- )E,G,S..IDN,MA,PH,TH ; (1204- )S..TAIW
