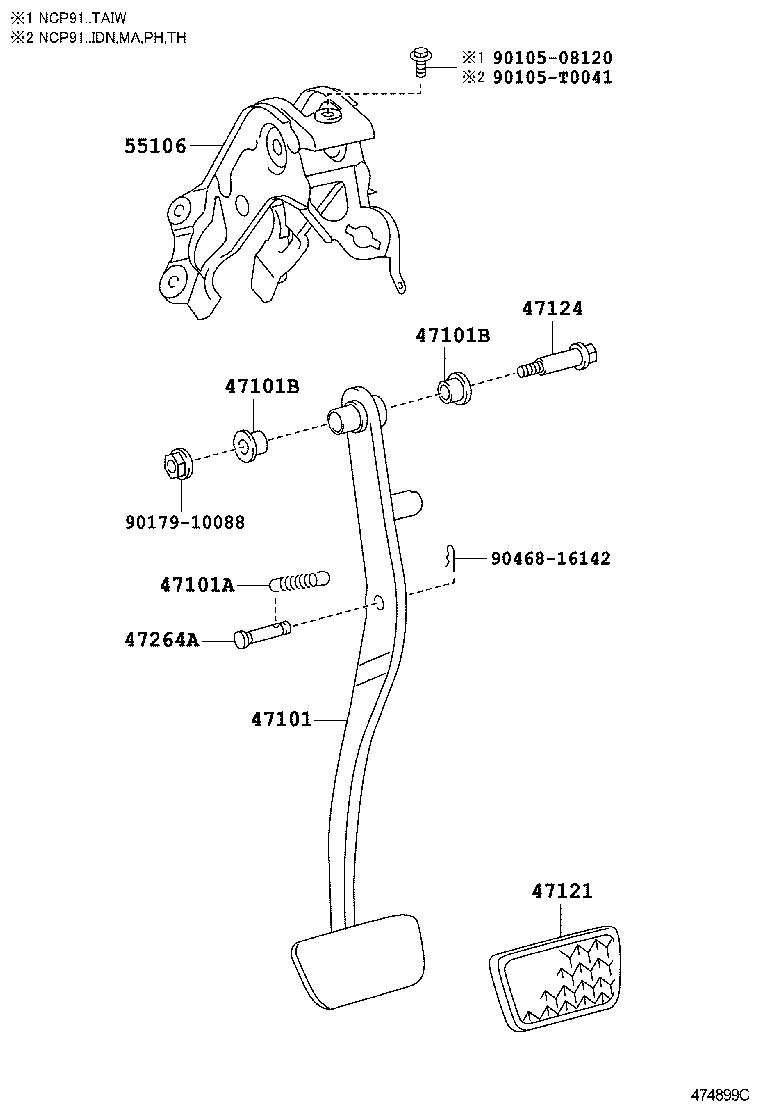

Toyota Yaris (asia) NCP91 BRAKE PEDAL & BRACKET

Part #	Description	Period	Qty
47101 - PEDAL SUB-ASSY, BRAKE
47101-0D120	NCP91..RHD..MTM	03/2009 - 07/2013	1
47101-0D120	NCP91..RHD..MTM	01/2006 - 03/2009	1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
90506-14077	NCP91	03/2009 - 05/2010	1
90506-T0015	NCP91..IDN,MA,PH,TH	06/2010 - 07/2013	1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	2
90386-13015	NCP91	03/2009 - 12/2999	2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	2
90386-13015	NCP91	03/2009 - 12/2999	2
47121 - PAD, BRAKE PEDAL
31321-52010	NCP91..RHD..MTM	03/2009 - 10/2009	1
31321-0D040	NCP91..RHD..MTM	11/2009 - 07/2013	1
31321-52010	NCP91..MTM	01/2006 - 03/2009	1
47124 - SHAFT, BRAKE PEDAL
90109-10167	NCP91	03/2009 - 12/2999	1
90109-10167	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
47264A - PIN(FOR PUSH ROD)
90249-08051	NCP91..ATM;NCP91..MTM..(E,J)	01/2006 - 10/2009	1
90249-08051	NCP91	03/2009 - 12/2999	1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0D070	NCP91..RHD	03/2009 - 07/2013	1
55106-0D070	NCP91..RHD	01/2006 - 03/2009	1
Common parts
90105-08120
90105-T0041
90179-10088
90468-16142

NCP91R-AHMRKD (2009)
