NCP91R-AHMRKD (2009)
Toyota Yaris (Asia)
Production
Mar 2009
-
Jul 2013
Engine
1NZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

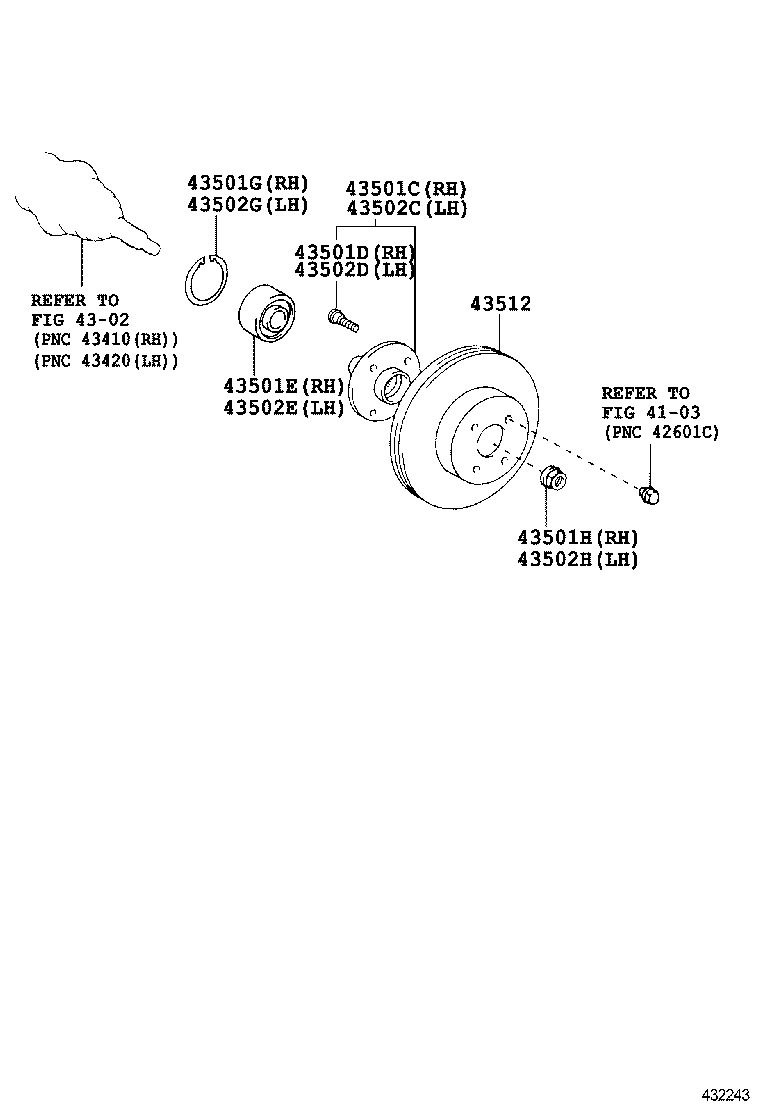

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-0D060 |
NCP91 (L) |
1 | ||
| 43502-0D060 |
NCP91..IDN,MA,PH,TH |
1 | ||
| 43502-52030 |
NCP91 (J) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
NCP91 |
4 | ||
| 90942-02049 |
NCP91..ATM;NCP91..MTM..(E,J) |
4 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90363-T0023 |
NCP91..E,G,S |
1 | ||
| 90363-T0023 |
NCP91..MTM..E;NCP91..(G,S)..TAIW;NCP91..ATM..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-80003 |
NCP91..ATM;NCP91..MTM..(E,J) |
1 | ||
| 90521-80003 |
NCP91 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
NCP91..ATM;NCP91..MTM..(E,J) |
1 | ||
| 90177-22001 |
NCP91 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-0D060 |
NCP91 (L) |
1 | ||
| 43502-0D060 |
NCP91..IDN,MA,PH,TH |
1 | ||
| 43502-52030 |
NCP91 (J) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
NCP91..ATM;NCP91..MTM..(E,J) |
4 | ||
| 90942-02049 |
NCP91 |
4 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90363-T0023 |
NCP91..MTM..E;NCP91..(G,S)..TAIW;NCP91..ATM..(E,G,S)..(IDN,MA,PH,TH) |
1 | ||
| 90363-T0023 |
NCP91..E,G,S |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-80003 |
NCP91..ATM;NCP91..MTM..(E,J) |
1 | ||
| 90521-80003 |
NCP91 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
NCP91..ATM;NCP91..MTM..(E,J) |
1 | ||
| 90177-22001 |
NCP91 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-52120 |
NCP91..RHD..(E,G) |
2 | ||
| 43512-0D090 |
NCP91..(E,G,J)..(IDN,MA,PH,TH) |
2 | ||
| Linked diagrams | ||||
| 4103 | ||||
| 4302 | ||||
