NCP91L-AHPRKR (2006)

Toyota Yaris (Asia)

Production Nov 2006 - Oct 2009
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )TAIW

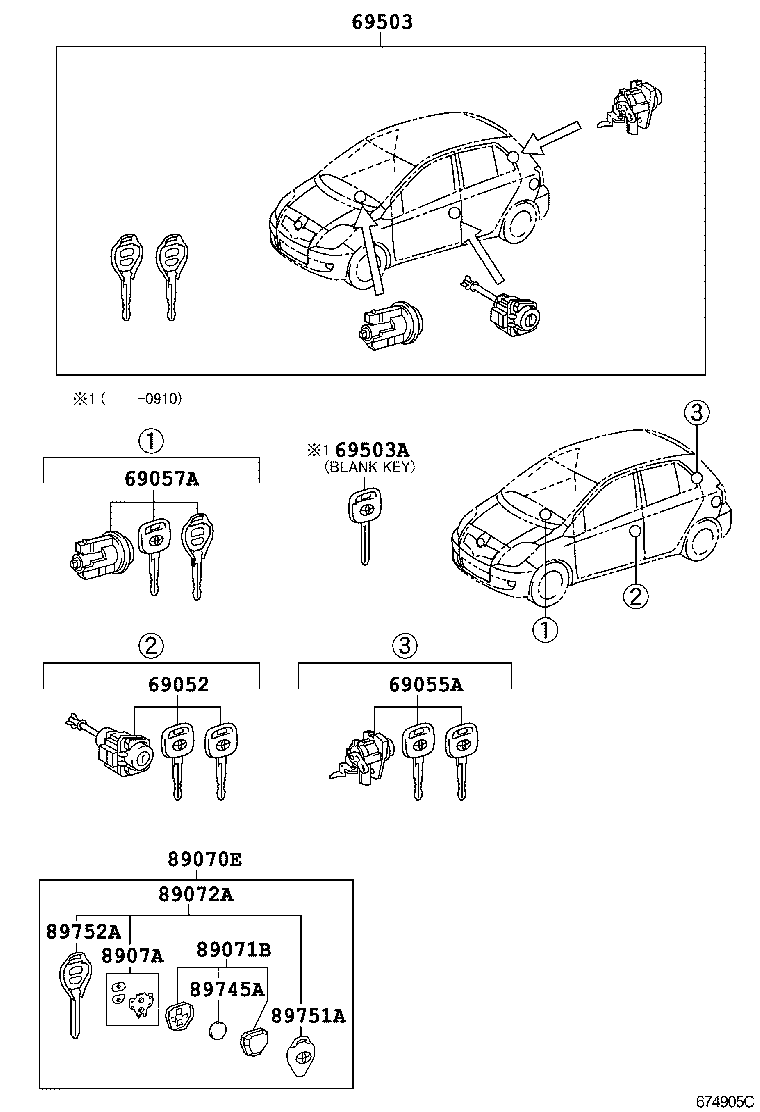

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69052 69055A 69057A 69503 69503A 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D090

NCP91..TAIW

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-0D080

NCP91..TAIW

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D141

NCP91..TAIW

 1
69503 - CYLINDER SET, LOCK
69005-0D193

NCP91..TAIW

 1
69503A - KEY, BLANK
90999-00199

NCP91..MTM..(E,J);NCP91..ATM..(IDN,PH,TAIW,TH)

MASTER KEY,W(*68)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D210

NCP91..TAIW

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52180

NCP91..TAIW

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D060

NCP91..TAIW

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71010

NCP91..(E,S)..TAIW;NCP91..(G,J)..(IDN,TAIW)

 2
8907A-71010

NCP91..J..IDN;NCP91..MTM..S;NCP91..(E,G)..(IDN,TAIW,TH)

 2
89745A - BATTERY, TRANSMITTER
89745-71010

NCP91..J..IDN;NCP91..MTM..S;NCP91..(E,G)..(IDN,PH,TAIW,TH)

 1
89745-71010

NCP91..(E,J)..(IDN,PH,TAIW);NCP91..ATM..(G,S)..(IDN,TAIW,TH)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-0D030

NCP91..TAIW

 2
89752A - CASE, TRANSMITTER HOUSING
89752-12080

NCP91..(E,S)..TAIW;NCP91..(G,J)..(IDN,TAIW)

 1
89752-12080

NCP91..(E,G)..TAIW

 1
