NCP91L-AHPRKR (2009)
Toyota Yaris (Asia)
Production
Oct 2009
-
Sep 2014
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0910-1204)S..TAIW ; (0910- )E,G..TAIW

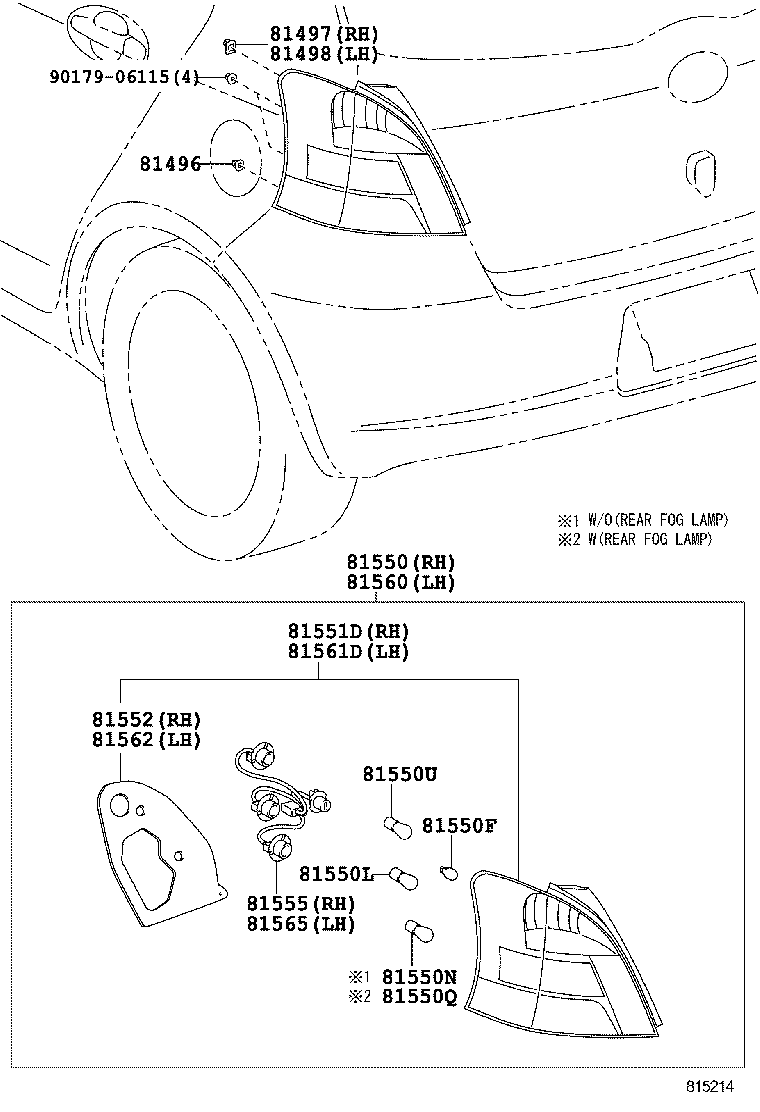

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
NCP91..TAIW |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-52020 |
NCP91..TAIW |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81497-52020 |
NCP91..TAIW |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0D290 |
NCP91..(E,G)..TAIW |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
NCP91..TAIW |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15009 |
NCP91..TAIW |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 99132-11210 |
NCP91..TAIW |
1 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 99132-11210 |
NCP91..TAIW |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0D290 |
NCP91..(E,G)..TAIW |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81554-0D290 |
NCP91..(E,G)..TAIW |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0D290 |
NCP91..(E,G)..TAIW |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0D300 |
NCP91..(E,G)..TAIW |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0D300 |
NCP91..(E,G)..TAIW |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81564-0D300 |
NCP91..(E,G)..TAIW |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-0D300 |
NCP91..(E,G)..TAIW |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
