NCP91L-AHPRKR (2009)
Toyota Yaris (Asia)
(0910- )TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP91..(E,G)..TAIW 12V 60/55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0D400 |
NCP91..(E,G)..TAIW |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 90075-8C008 |
NCP91..(E,G)..TAIW |
2 | ||
| 81189 - COVER, HEADLAMP | ||||
| 90075-8C008 |
NCP91..(E,G)..TAIW |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-WF005 |
NCP91..TAIW 12V 21W |
1 | ||
| 90981-15009 |
NCP91..TAIW 12V 21W,AMBER |
1 | ||
| 90981-15009 |
NCP91..TAIW 12V 21W,AMBER |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-WF005 |
NCP91..TAIW 12V 21W |
1 | ||
| 90981-15009 |
NCP91..TAIW 12V 21W,AMBER |
1 | ||
| 90981-15009 |
NCP91..TAIW 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 9008C-07006 |
NCP91..(E,G)..TAIW |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 9008C-07006 |
NCP91..(E,G)..TAIW |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP91..TAIW 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP91..TAIW 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-8C006 |
NCP91..(E,G)..TAIW |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NCP91..(E,G)..TAIW |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
NCP91..(E,G)..TAIW |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NCP91..(E,G)..TAIW |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
NCP91..(E,G)..TAIW |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NCP91..(E,G)..TAIW |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
NCP91..(E,G)..TAIW |
2 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||

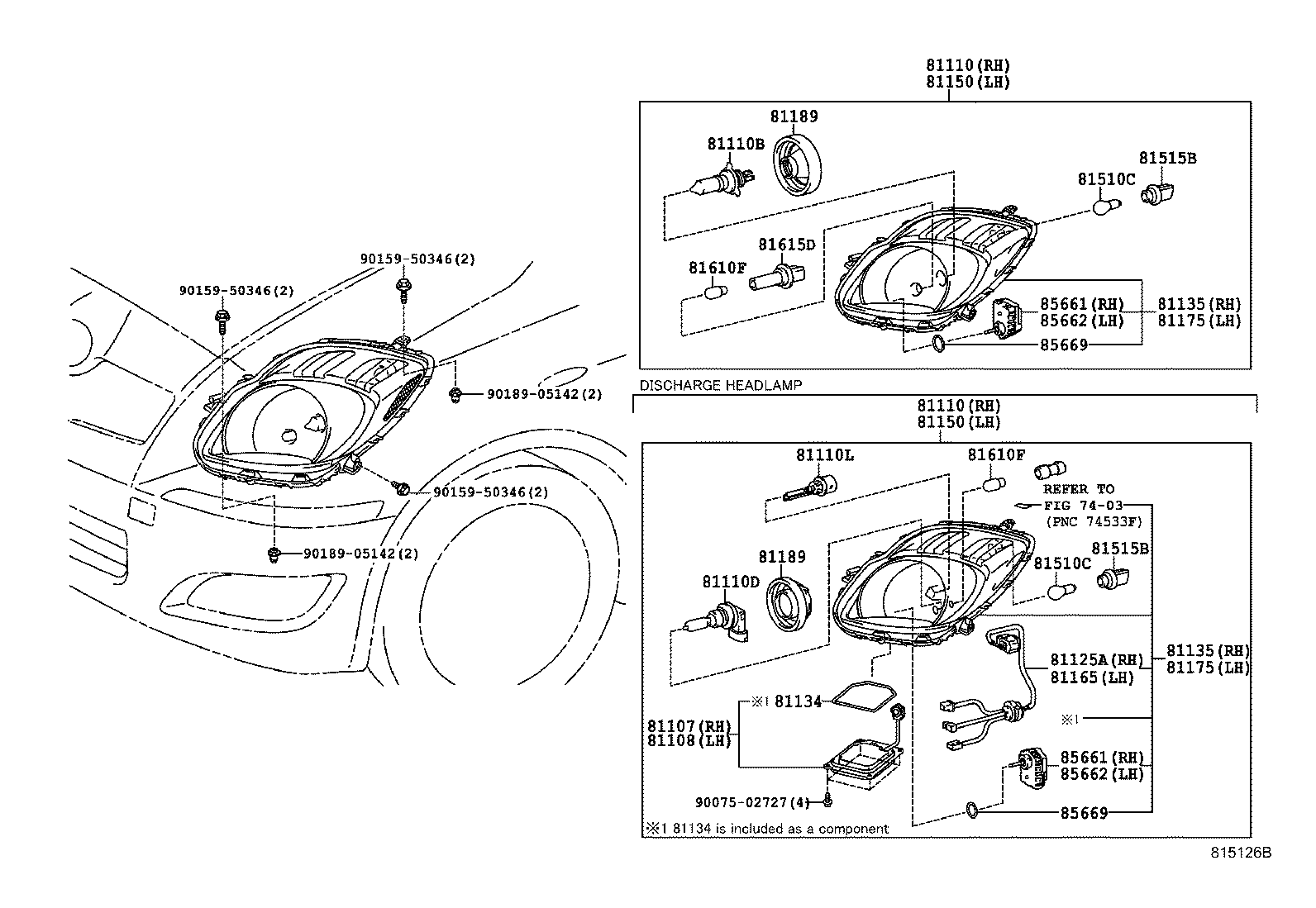

| Linked diagrams | ||||
| 7403 | ||||
