NCP91L-AHPRKR (2009)
Toyota Yaris (Asia)

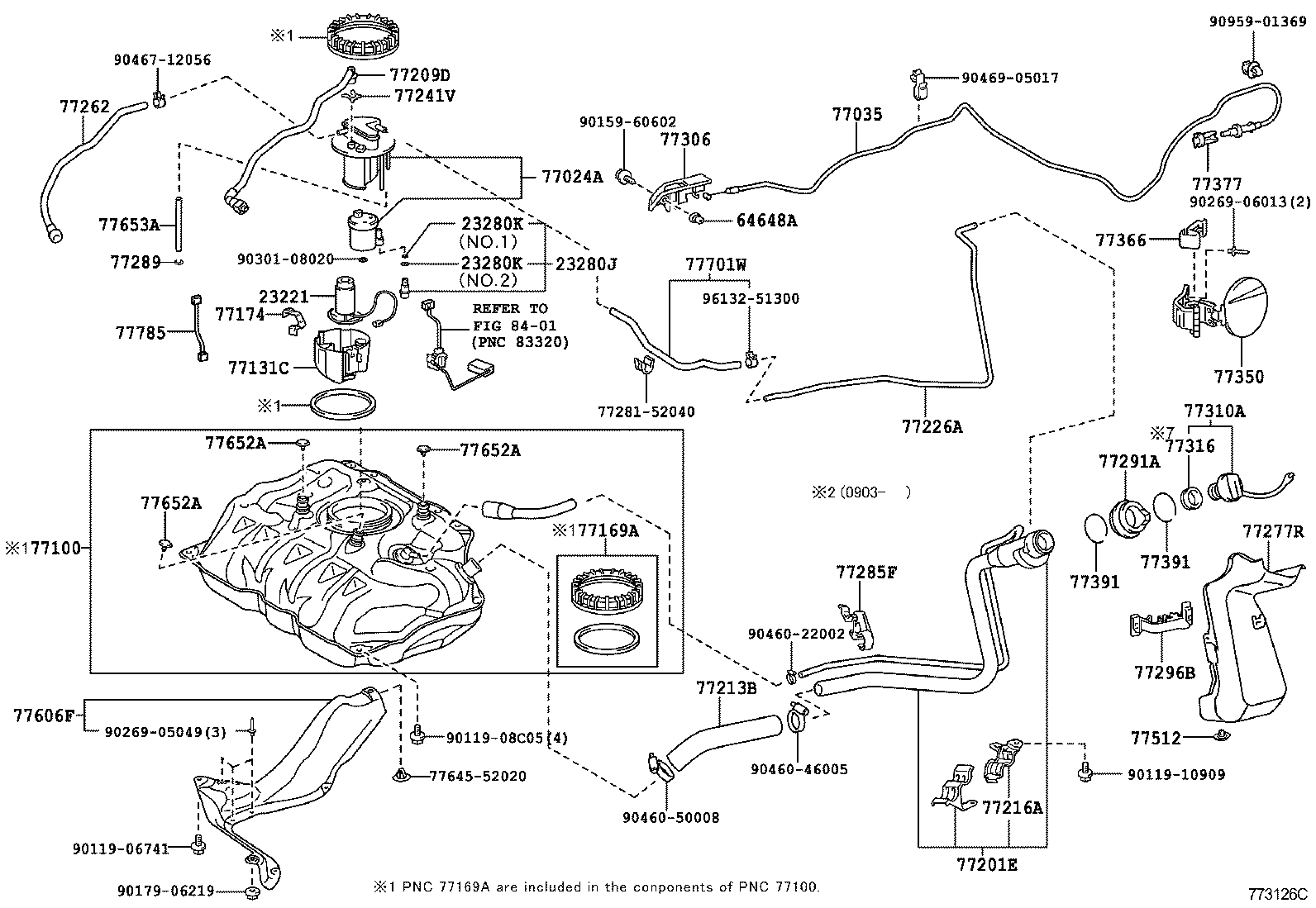

ILLUST NO. 1 OF 2(1111- )TAIW
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-21131 |
1NZFE..NCP91 |
1 | ||
| 23220-21132 |
1NZFE..NCP91..TAIW |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFE..NCP91 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NZFE..NCP91..TAIW NO.2 |
1 | ||
| 90301-04013 |
1NZFE..NCP91..TAIW NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NZFE..NCP91..TAIW NO.2 |
1 | ||
| 90301-04013 |
1NZFE..NCP91..TAIW NO.1 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
NCP91..TAIW |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52120 |
NCP91..TAIW |
1 | ||
| 77024-52122 |
NCP91..TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D120 |
NCP91..TAIW |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52201 |
NCP91..TAIW |
1 | ||
| 77001-52490 |
NCP91..TAIW |
1 | ||
| 77001-52201 |
NCP91..TAIW |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52071 |
NCP91..TAIW |
1 | ||
| 77131-52110 |
NCP91 |
1 | ||
| 77131-52071 |
NCP91..TAIW |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
NCP91..TAIW |
1 | ||
| 77169-52040 |
NCP91..TAIW |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52050 |
NCP91..TAIW |
1 | ||
| 77174-52050 |
NCP91..TAIW |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0D110 |
NCP91..TAIW |
1 | ||
| 77201-0D111 |
NCP91..TAIW |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52091 |
NCP91..TAIW |
1 | ||
| 77209-52090 |
NCP91..TAIW |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0D070 |
NCP91..TAIW |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0D060 |
NCP91..TAIW |
1 | ||
| 77216-0D061 |
NCP91..TAIW |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-52050 |
NCP91..TAIW |
1 | ||
| 77226-52051 |
NCP91..TAIW |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-60320 |
NCP91..TAIW |
1 | ||
| 77241-60320 |
NCP91..TAIW |
1 | ||
| 77241-33011 |
NCP91..TAIW |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77028-52010 |
NCP91..TAIW |
1 | ||
| 77028-52010 |
NCP91..TAIW |
1 | ||
| 77028-52020 |
NCP91..TAIW |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52030 |
NCP91 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D060 |
NCP91..TAIW |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
NCP91..TAIW |
1 | ||
| 77289-52110 |
NCP91..TAIW |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D070 |
NCP91..TAIW |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-0D020 |
NCP91..TAIW |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D040 |
NCP91..TAIW |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NCP91..TAIW |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52020 |
NCP91 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0D040 |
NCP91..ATM;NCP91..MTM..(E,J) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NCP91..TAIW |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D030 |
NCP91..TAIW |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP91 THAILAND PRODUCT |
2 | ||
| 77391-12020 |
NCP91..ATM;NCP91..MTM..(E,J) EXCEPT THAILAND |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02020 |
NCP91 THAILAND PRODUCT |
2 | ||
| 77391-12020 |
NCP91..ATM;NCP91..MTM..(E,J) EXCEPT THAILAND |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-0D020 |
NCP91..TAIW |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-52060 |
NCP91..TAIW |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-52070 |
NCP91..TAIW |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-52070 |
NCP91..TAIW |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-52070 |
NCP91..TAIW |
3 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-52040 |
NCP91..TAIW |
1 | ||
| 77652-52040 |
NCP91..TAIW |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-52010 |
NCP91..TAIW |
1 | ||
| 77701-52010 |
NCP91..TAIW |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52060 |
NCP91..TAIW |
1 | ||
| 77785-52060 |
NCP91..TAIW |
1 | ||
| Common parts | ||||
| 77281-52040 | ||||
| 77645-52020 | ||||
| 90119-06741 | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-05049 | ||||
| 90269-06013 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 90469-05017 | ||||
| 90959-01369 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
